2020 Yamaha YZ450F Crankshaft Piston OEM Parts Diagram

Submodel YZ450F - YZ450FLL - 2020

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKSHAFT PISTON

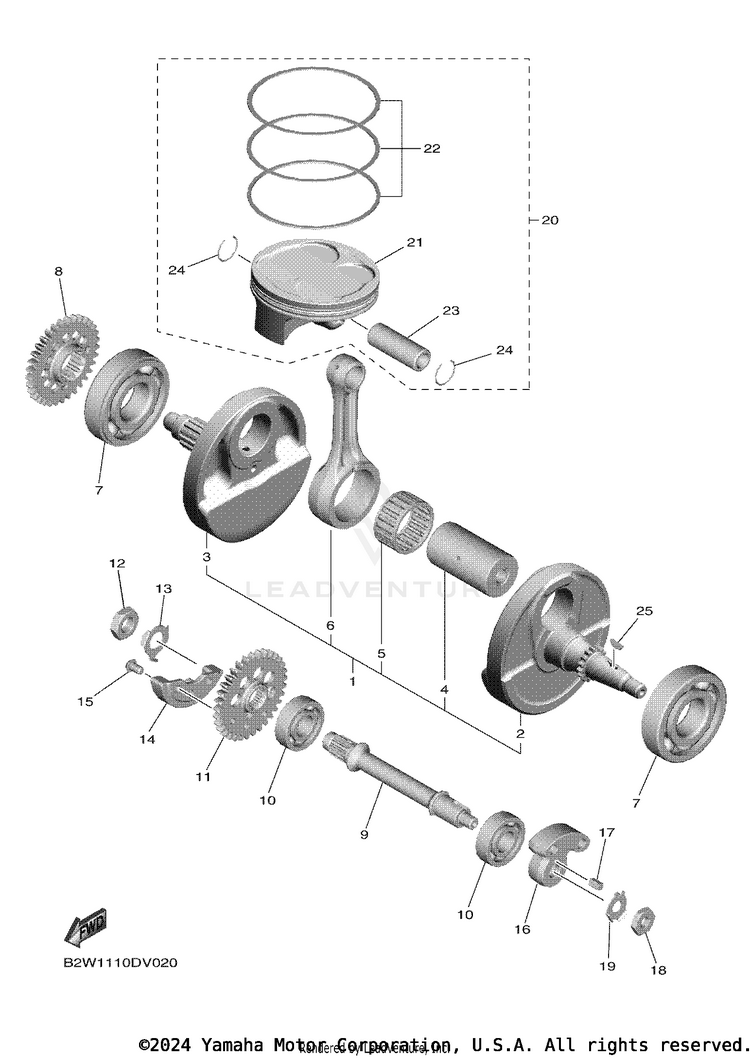

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B2W-11400-00-00CRANKSHAFT ASSY$632.99$493.823 In-Stock
2BR9-11412-10-00CRANK 1$270.99$225.18Usually ships in 7-10 business days
3BR9-11422-00-00CRANK 2$300.99$247.86Usually ships in 7-10 business days
45TG-11681-01-00PIN, CRANK 1$51.99$40.55Usually ships in 7-10 business days
593310-63499-00BEARING$65.99$51.473 In-Stock
6B2W-11651-00-00ROD, CONNECTING$73.99$57.71Usually ships in 7-10 business days
793306-30633-00BEARING$110.99$86.5710+ In-Stock
82S2-11536-00-00GEAR, DRIVE$91.99$71.75Usually ships in 7-10 business days
9BR9-11455-00-00SHAFT 1$194.99$152.09Usually ships in 7-10 business days
1093306-20335-00BEARING$38.99$30.4110+ In-Stock
112S2-11531-10-00GEAR, BALANCE WEIGHT$185.99$145.07Usually ships in 7-10 business days
1290170-14171-00NUT$10.49$8.184 In-Stock
1390215-14287-00WASHER, LOCK | INCL. IN BOTTOM END GASKET KIT$6.49$5.0610+ In-Stock
1433D-11454-00-00WEIGHT 1$84.99$66.29Usually ships in 7-10 business days
1590149-06193-00SCREW$2.55$2.30Usually ships in 7-10 business days
1633D-11464-00-00WEIGHT 2$95.99$74.87Usually ships in 7-10 business days
1790282-05034-00KEY, STRAIGHT$10.49$8.187 In-Stock
1890170-10013-00NUT$13.49$11.06Usually ships in 7-10 business days
1990215-10009-00WASHER, LOCK | INCL. IN BOTTOM END GASKET KIT$16.49$12.8610+ In-Stock
20B2W-116A0-00-00PISTON ASSY$178.99$140.348 In-Stock
21B2W-11631-00-00PISTON (STD)$126.99$99.052 In-Stock
22B2W-11603-00-00PISTON RING SET (S$50.99$39.775 In-Stock
23BR9-11633-10-00

(replaces part #
BR9-11633-00-00)

PIN, PISTON$69.99$54.595 In-Stock
2493450-19052-00CIRCLIP, INNER$7.99$6.2310+ In-Stock
2590280-03006-00KEY, WOODRUFF$9.49$7.4010+ In-Stock
