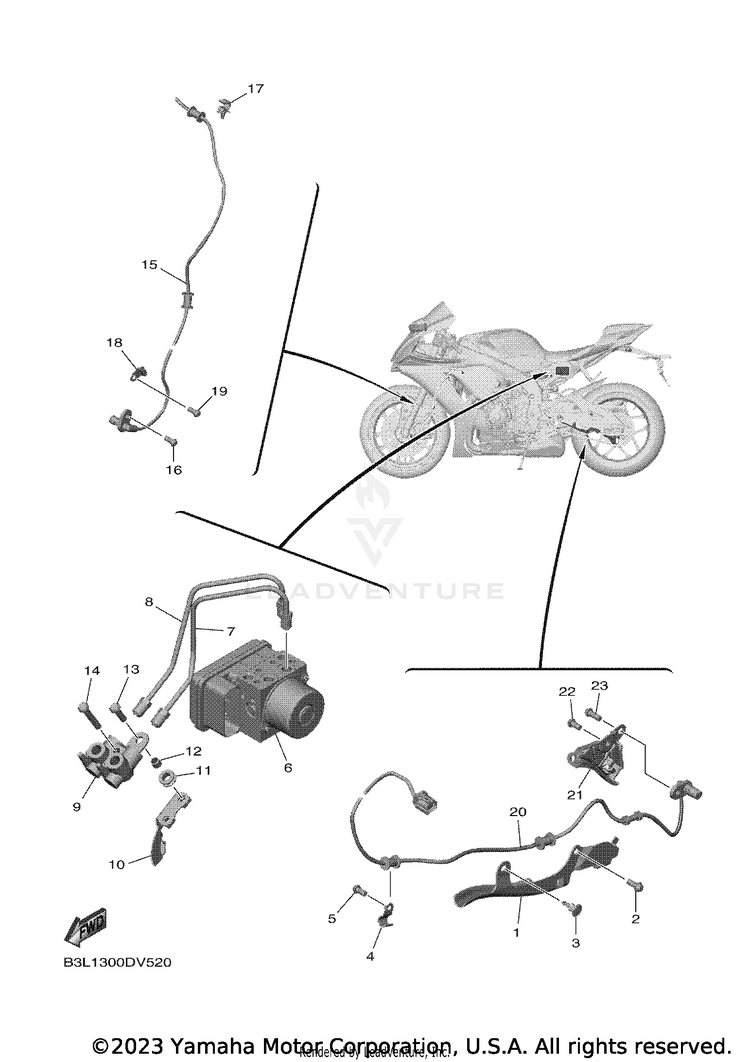

ELECTRICAL 3

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12CR-2219X-00-00COVER$16.49$13.52Usually ships in 7-10 business days
292012-06016-00BOLT, BUTTON HEAD$9.49$7.407 In-Stock
390269-07007-00RIVET$4.40$3.787 In-Stock
AFTERMARKET ALTERNATIVE
$6.99$4.9910+ In-Stock
42CR-2216F-00-00HOOK$5.49$4.94Usually ships in 7-10 business days
592017-06012-00BOLT, BUTTON HEAD-$3.584 In-Stock
6B3L-85930-09-00HYDRAULIC UNIT ASSY$1,002.99$839.92Usually ships in 7-10 business days
7B3L-25871-00-00PIPE, BRAKE$11.49$9.42Usually ships in 7-10 business days
8B3L-25882-00-00PIPE, BRAKE 2$11.49$9.42Usually ships in 7-10 business days
92CR-25885-00-00JOINT$59.99$46.79Usually ships in 7-10 business days
102CR-27251-00-00BRACKET, CABLE$14.49$11.88Usually ships in 7-10 business days
1190480-11006-00GROMMET$4.50$4.05Usually ships in 7-10 business days
1290387-06761-00

(replaces part #
90387-066V8-00)

COLLAR$10.49$8.183 In-Stock
1392017-06020-00BOLT, BUTTON HEAD$4.05$3.488 In-Stock
1492017-06035-00BOLT, BUTTON HEAD$3.45$2.978 In-Stock
152CR-85970-01-00

(replaces part #
2CR-85970-00-00)

WHEEL SENSOR ASSY, F$145.99$113.87Usually ships in 7-10 business days
1692017-06014-00BOLT, BUTTON HEAD$4.60$3.966 In-Stock
1790464-09129-00CLAMP$2.30$2.07Usually ships in 7-10 business days
182CR-23317-00-00HOLDER, CABLE$10.49$8.60Usually ships in 7-10 business days
1992017-06014-00BOLT, BUTTON HEAD$4.60$3.966 In-Stock
202CR-85980-01-00

(replaces part #
2CR-85980-00-00)

WHEEL SENSOR ASSY, R$179.99$140.39Usually ships in 7-10 business days
212CR-27491-01-00

(replaces part #
2CR-27491-00-00)

PROTECTOR$16.49$13.52Usually ships in 7-10 business days
2292012-06016-00BOLT, BUTTON HEAD$9.49$7.407 In-Stock
2390109-06234-00BOLT$8.49$7.64Usually ships in 7-10 business days
