2021 Yamaha KODIAK 450 4x4 Auto Crankshaft Piston OEM Parts Diagram

Submodel KODIAK 450 HUNTER - YFM45KDHMH - 2021

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

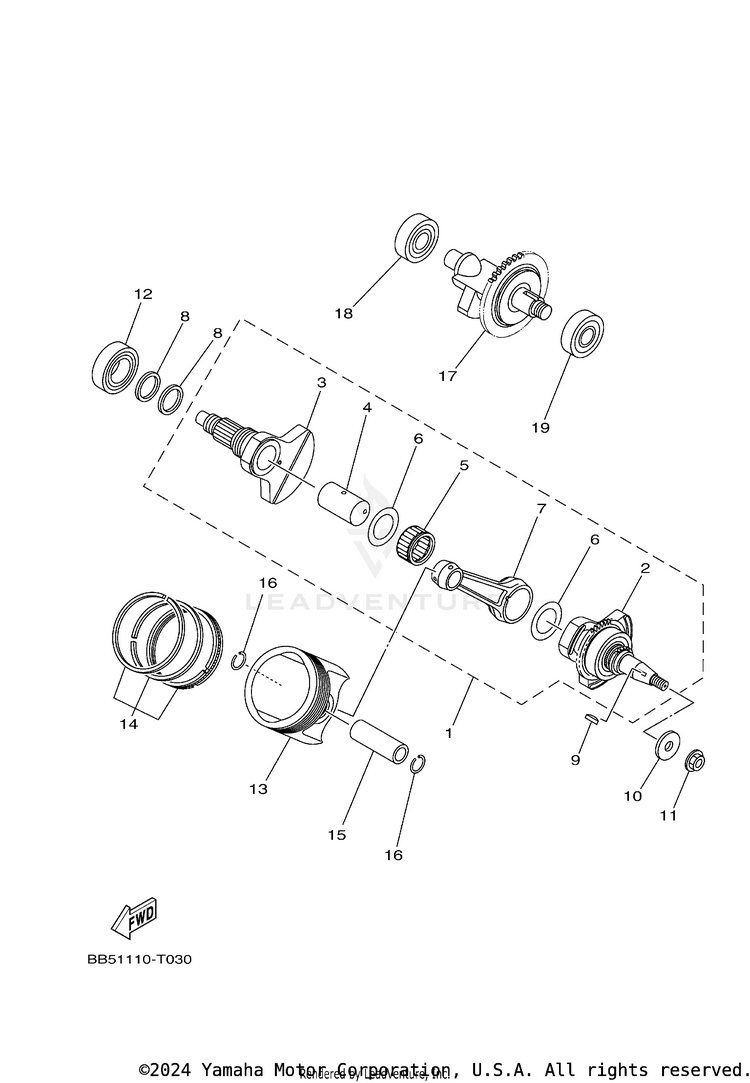

CRANKSHAFT PISTON

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BB5-11400-01-00

(replaces part #
BB5-11400-00-00)

CRANKSHAFT ASSY$666.99$554.62Usually ships in 7-10 business days
2BB5-11401-09-00CRANK SUB ASSY 1$326.99$271.72Usually ships in 7-10 business days
35ND-11402-09-00CRANK SUB ASSY 2$239.99$189.93Usually ships in 7-10 business days
4BB5-11681-00-00PIN, CRANK 1$63.99$49.91Usually ships in 7-10 business days
593310-635D4-00BEARING$118.99$92.81Usually ships in 7-10 business days
690201-356K1-00WASHER, PLATE$16.49$13.52Usually ships in 7-10 business days
75GH-11651-01-00ROD, CONNECTING$164.99$128.69Usually ships in 7-10 business days
85GH-11447-00-00SEAL, CRANK$47.99$39.354 In-Stock
990280-05001-00

(replaces part #
90280-05048-00)

KEY, WOODRUFF$13.49$10.5210+ In-Stock
1090201-14028-00WASHER, PLATE$17.49$14.34Usually ships in 7-10 business days
1190179-14317-00NUT$23.99$18.711 In-Stock
1293306-30629-00BEARING$78.99$61.61Usually ships in 7-10 business days
135ND-11636-00-00PISTON (0.50MM O/S) | AP$130.99$102.176 In-Stock
135ND-11631-00-YX

(replaces part #
5ND-11631-00-00)

PISTON (STD)$132.99$103.732 In-Stock
135ND-11638-00-00PISTON (1.00MM O/S) | AP$126.99$99.053 In-Stock
145ND-11605-00-00PISTON RING SET (0.50MM O/S) | AP$72.99$56.936 In-Stock
145ND-11607-00-00PISTON RING SET (1.00MM O/S) | AP$68.99$53.81Usually ships in 7-10 business days
145ND-11603-00-00PISTON RING SET (STD)$66.99$52.251 In-Stock
153LD-11633-00-00PIN, PISTON$37.99$29.631 In-Stock
1693450-22027-00CIRCLIP$8.49$6.6210+ In-Stock
175ND-11500-00-00BALANCER ASSY$284.99$222.29Usually ships in 7-10 business days
1893306-30302-00

(replaces part #
93306-30315-00)

BEARING$49.99$38.992 In-Stock
1993306-30421-00

(replaces part #
93306-30438-00)

BEARING$71.99$56.1510+ In-Stock
