2021 Yamaha MT-03 Electrical 3 OEM Parts Diagram

Submodel MT-03 - MT03MGY - 2021

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 3

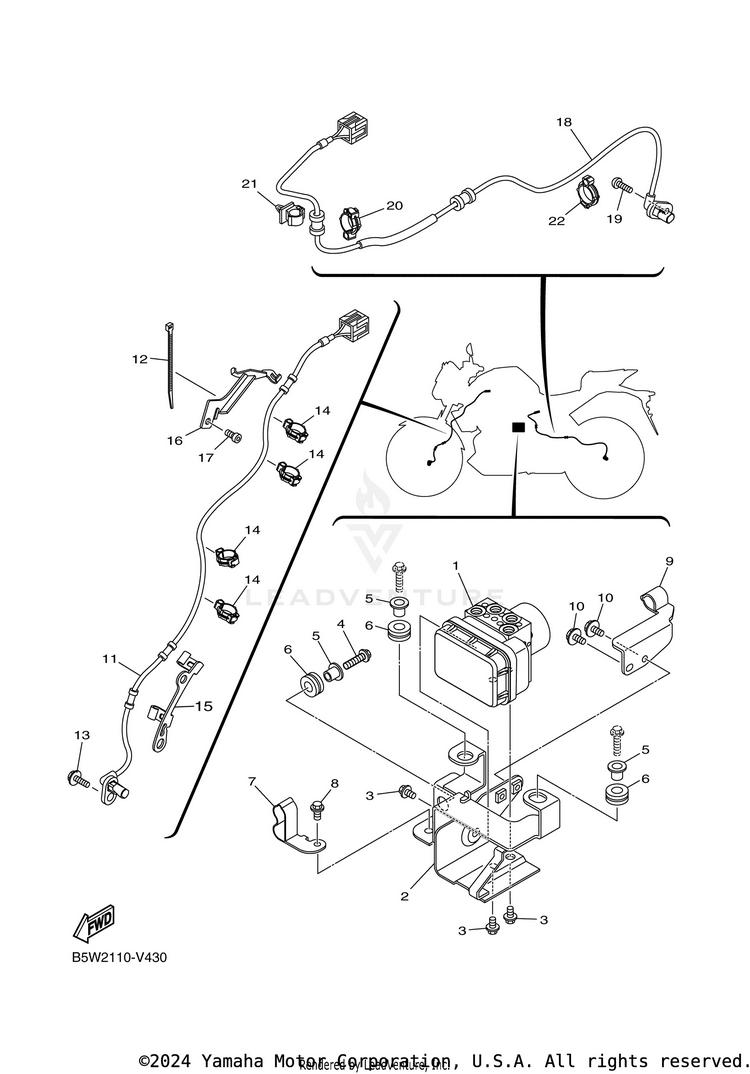

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12WD-85930-08-00HYDRAULIC UNIT ASS$1,120.99$980.75Usually ships in 7-10 business days
22WD-F175T-00-00BRACKET 1$35.99$29.51Usually ships in 7-10 business days
395022-06010-00BOLT, FLANGE$6.49$5.067 In-Stock
495022-06025-00BOLT, FLANGE$1.90$1.6310+ In-Stock
590387-06M60-00COLLAR$8.99$8.09Usually ships in 7-10 business days
690480-14229-00GROMMET$9.49$7.4010+ In-Stock
72WD-F5886-00-00HOLDER, BRAKE HOSE$5.49$4.94Usually ships in 7-10 business days
895027-06012-00BOLT, FLANGE$4.20$3.6110+ In-Stock
92WD-F5875-00-00HOLDER, BRAKE HOSE 1$7.49$6.74Usually ships in 7-10 business days
1095027-06012-00BOLT, FLANGE$4.20$3.6110+ In-Stock
112WD-85970-01-00

(replaces part #
2WD-85970-00-00)

WHEEL SENSOR ASSY, FRONT$147.99$115.43Usually ships in 7-10 business days
1290464-22800-00CLAMP$1.15$1.04Usually ships in 7-10 business days
1390105-06696-00

(replaces part #
95027-06016-00)

BOLT, FLANGE$10.49$8.1810+ In-Stock
1490464-12013-00CLAMP$9.49$8.54Usually ships in 7-10 business days
15B5L-F3318-00-00WIRE, HOLDER 1$9.49$8.54Usually ships in 7-10 business days
16B6W-F3319-00-00WIRE, HOLDER 2$30.99$25.41Usually ships in 7-10 business days
1791317-06012-00BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
182WD-85980-01-00

(replaces part #
2WD-85980-00-00)

WHEEL SENSOR ASSY, REAR$144.99$113.09Usually ships in 7-10 business days
1992012-06016-00BOLT, BUTTON HEAD$9.49$7.407 In-Stock
2090464-14803-00CLAMP$0.50$0.45Usually ships in 7-10 business days
2190464-10800-00CLAMP$2.35$2.12Usually ships in 7-10 business days
2290464-14803-00CLAMP$0.50$0.45Usually ships in 7-10 business days
