2021 Yamaha MT-03 Shift Shaft OEM Parts Diagram

Submodel MT-03 - MT03MB - 2021

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT SHAFT

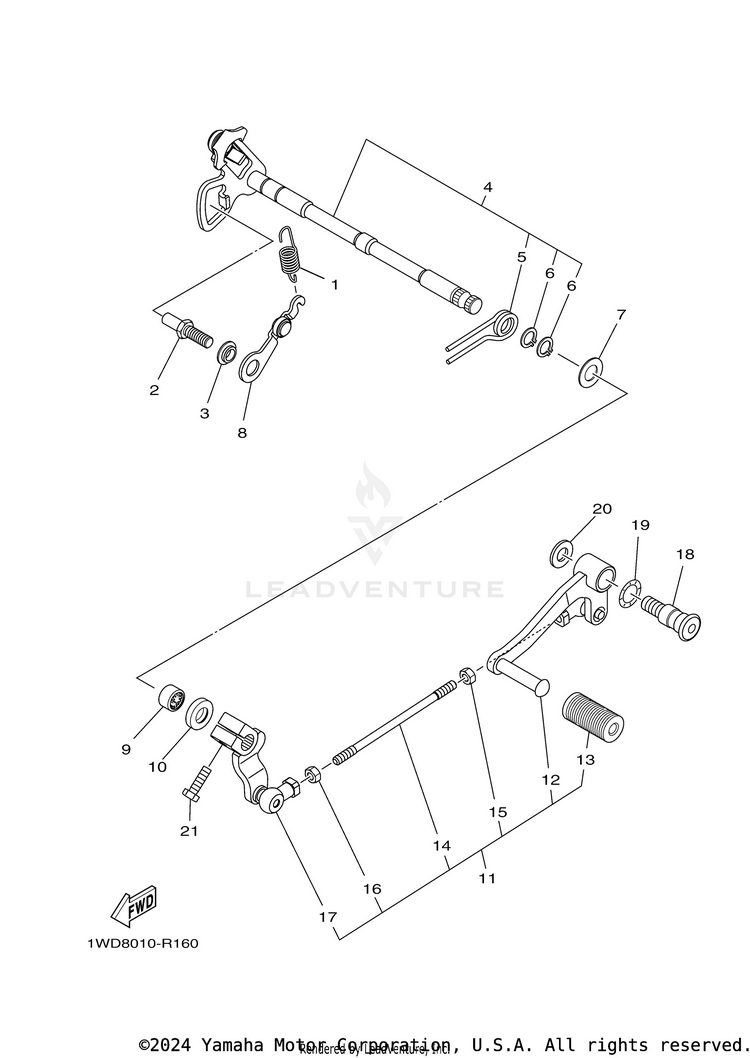

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11WD-E8337-00-00SPRING$1.15$1.04Usually ships in 7-10 business days
21WD-E8127-10-00STOPPER, SCREW$3.15$2.84Usually ships in 7-10 business days
31WD-E8175-00-00SPACER$2.70$2.43Usually ships in 7-10 business days
41WD-E8101-00-00SHIFT SHAFT ASSY$46.99$38.53Usually ships in 7-10 business days
590508-29806-00SPRING, TORSION$3.80$3.42Usually ships in 7-10 business days
699009-12400-00CIRCLIP$3.59$3.0910+ In-Stock
790201-127E1-00WASHER, PLATE$4.65$4.0010+ In-Stock
81WD-E8140-00-00STOPPER LEVER ASSY$14.99$12.29Usually ships in 7-10 business days
993317-11295-00BEARING$50.99$39.774 In-Stock
1093102-12106-00

(replaces part #
93102-12891-00)

OIL SEAL (SD 12-22-5 HS)$12.49$9.7410+ In-Stock
11B1X-E8110-01-00

(replaces part #
1WD-E8110-00-00)

CHANGE PEDAL ASSY$79.99$65.82Usually ships in 7-10 business days
121WD-E8111-00-00PEDAL, SHIFT$49.99$40.99Usually ships in 7-10 business days
131EG-E8113-02-00

(replaces part #
1EG-E8113-01-00)

COVER, SHIFT PEDAL$1.10$0.99Usually ships in 7-10 business days
141WD-E8115-00-00ROD, SHIFT$33.99$27.87Usually ships in 7-10 business days
1590170-06023-00NUT$6.49$5.84Usually ships in 7-10 business days
1695380-06600-00

(replaces part #
95302-06600-00)

NUT, HEXAGON$4.90$4.605 In-Stock
171WD-E8112-00-00ARM, SHIFT$39.99$32.79Usually ships in 7-10 business days
18BS8-F7261-00-00SHAFT$7.49$6.74Usually ships in 7-10 business days
1990206-14001-00WASHER, WAVE$9.49$7.403 In-Stock
2090201-10021-00WASHER, PLATE$6.49$5.068 In-Stock
2197017-06020-00

(replaces part #
97012-06020-00)

BOLT$4.06$3.4910+ In-Stock
