2021 Yamaha MT-09 Steering OEM Parts Diagram

Submodel MT09 - MT09MCL - 2021

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

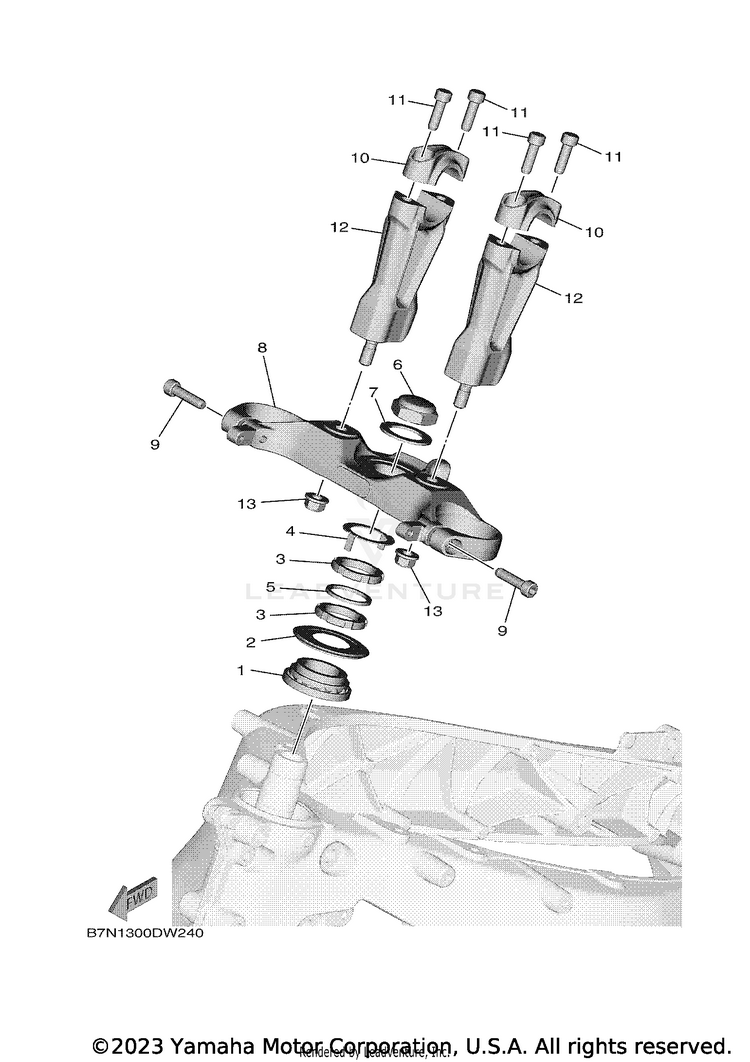

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
193399-99932-00BEARING$69.99$54.59Usually ships in 7-10 business days
24XV-23415-01-00COVER, BALL RACE 1$26.99$22.13Usually ships in 7-10 business days
390179-30006-00NUT$28.99$23.77Usually ships in 7-10 business days
44XV-23418-00-00WASHER, SPECIAL$18.99$15.57Usually ships in 7-10 business days
590202-30235-00WASHER, PLATE$9.49$8.541 In-Stock
690176-28083-00NUT, CROWN$42.99$35.25Usually ships in 7-10 business days
790201-281U8-00WASHER, PLATE$12.49$9.742 In-Stock
8B7N-23435-00-00CROWN, HANDLE$194.99$152.09Usually ships in 7-10 business days
991314-08030-00BOLT, HEXAGON SOCKET HEAD$2.55$2.199 In-Stock
10B7N-23441-00-00HOLDER, HANDLE UPP$39.99$32.79Usually ships in 7-10 business days
1191314-08025-00BOLT, HEXAGON SOCKET HEAD$9.49$8.542 In-Stock
12B7N-23442-01-00

(replaces part #
B7N-23442-00-00)

HOLDER, HANDLE LOWER$84.99$66.29Usually ships in 7-10 business days
1395602-10200-00NUT, S/L FLANGE$2.70$2.3210+ In-Stock
