2021 Yamaha YZ65 Starter OEM Parts Diagram

Submodel YZ65 - YZ65M - 2021

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

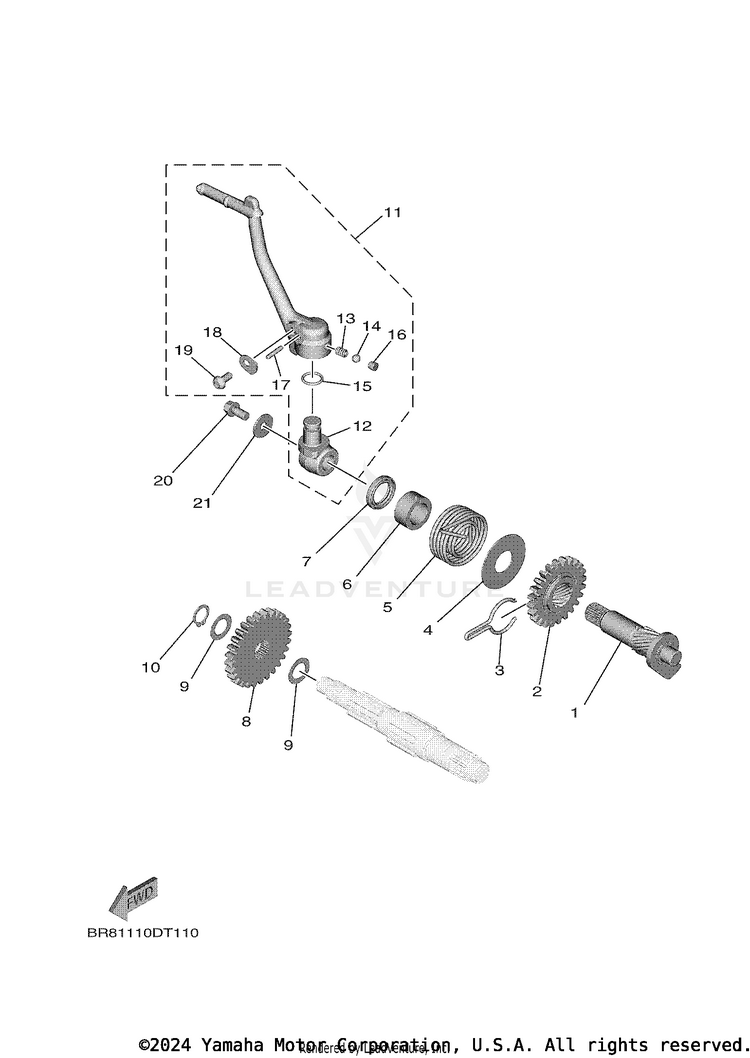

STARTER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15PA-15660-00-00KICK AXLE ASSY$112.99$88.136 In-Stock
25PA-15641-00-00GEAR, KICK$84.99$66.292 In-Stock
390468-23194-00CLIP$10.49$8.186 In-Stock
490201-176L4-00WASHER, PLATE$10.49$8.182 In-Stock
590508-26750-00SPRING, TORSION$13.49$10.524 In-Stock
64ES-15664-00-00GUIDE, SPRING$33.99$26.512 In-Stock
793102-17263-00OIL SEAL$11.49$8.9610+ In-Stock
85PA-15651-00-00GEAR, KICK IDLE$79.99$62.3910+ In-Stock
990201-124F8-00WASHER, PLATE$10.49$8.1810+ In-Stock
1099009-12400-00CIRCLIP$3.59$3.0910+ In-Stock
11BR8-15620-00-00KICK CRANK ASSY$142.99$111.539 In-Stock
12BR8-15621-00-00BOSS, KICK CRANK$62.99$49.13Usually ships in 7-10 business days
1390501-12081-00SPRING, BOSS STOPPER$9.49$7.4010+ In-Stock
1493507-32031-00

(replaces part #
93507-32009-00)

BALL$5.49$4.2810+ In-Stock
1593210-12152-00O-RING$8.49$6.627 In-Stock
1690336-06031-00PLUG, TAPER$6.49$5.062 In-Stock
1793603-16219-00PIN, DOWEL$9.49$7.4010+ In-Stock
184JY-11915-10-00PLATE, THRUST 1$8.49$6.629 In-Stock
1990111-05053-00

(replaces part #
90111-05052-00)

BOLT, HEX. SOCKET BUTTON$1.45$1.30Usually ships in 7-10 business days
2095E32-06012-00BOLT, FLANGE DEEP RECESS-$1.7010+ In-Stock
2190201-06020-00

(replaces part #
90201-06060-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
