2021 Yamaha YZF-R1M Front Fork OEM Parts Diagram

Submodel YZFR1M - YZFR1MMC - 2021

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT FORK

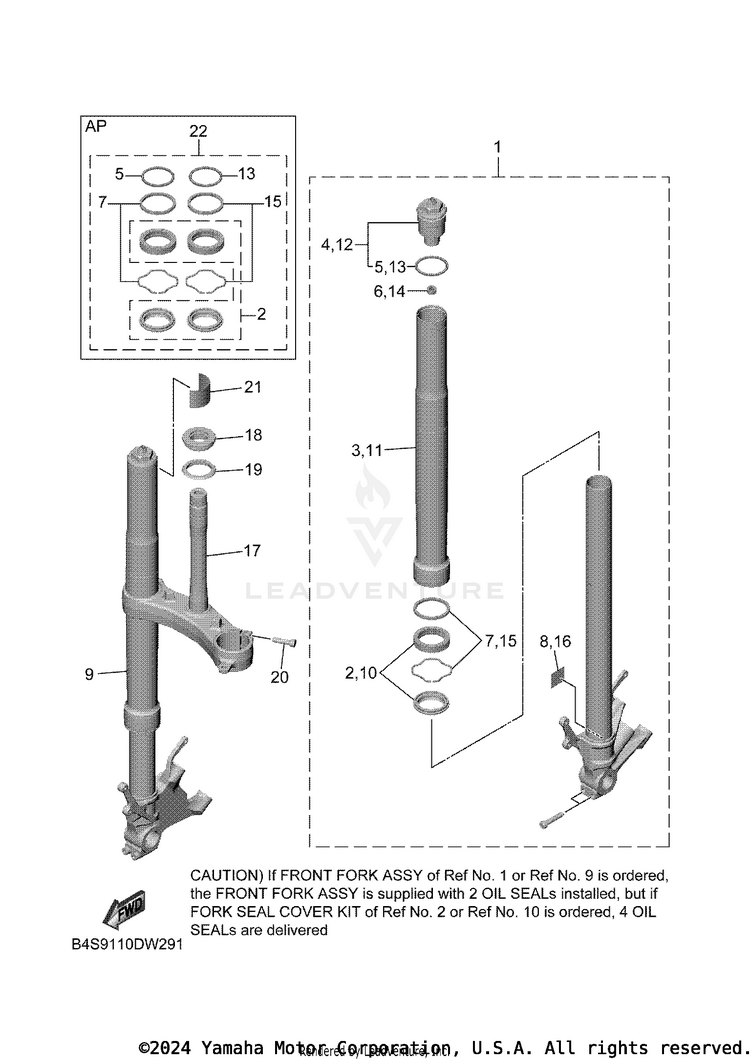

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B4S-23102-11-00FRONT FORK ASSY (L.H)$3,371.99$3,371.99Usually ships in 7-10 business days
22KS-231E0-00-00FORK SEAL COVER KIT$143.99$112.31Usually ships in 7-10 business days
3B4S-23106-00-00OUTER TUBE COMP.$498.99$412.61Usually ships in 7-10 business days
4B4S-23111-00-00BOLT, CAP$598.99$501.40Usually ships in 7-10 business days
593210-41N50-00O-RING$9.49$8.54Usually ships in 7-10 business days
690170-12060-00NUT$10.49$8.186 In-Stock
71MC-22259-10-00LABEL, WARNING$7.49$6.74Usually ships in 7-10 business days
8B4S-23103-11-00FRONT FORK ASSY (R.H)$3,371.99$3,371.99Usually ships in 7-10 business days
92KS-231E0-00-00FORK SEAL COVER KIT$143.99$112.31Usually ships in 7-10 business days
10B4S-23106-00-00OUTER TUBE COMP.$498.99$412.61Usually ships in 7-10 business days
11B4S-23111-00-00BOLT, CAP$598.99$501.40Usually ships in 7-10 business days
1293210-41N50-00O-RING$9.49$8.54Usually ships in 7-10 business days
1390170-12060-00NUT$10.49$8.186 In-Stock
141MC-22259-10-00LABEL, WARNING$7.49$6.74Usually ships in 7-10 business days
152CR-23340-00-00UNDER BRACKET COMP.$596.99$480.88Usually ships in 7-10 business days
1693399-99957-00BEARING$76.99$60.05Usually ships in 7-10 business days
173FV-23462-00-00SEAL, STEERING$26.99$22.13Usually ships in 7-10 business days
1891314-08030-00BOLT, HEXAGON SOCKET HEAD$2.55$2.199 In-Stock
195PW-23472-00-00PROTECTOR$16.49$13.52Usually ships in 7-10 business days
20BW8-W003B-00-00FORK SEALS KIT | AP$77.99$60.83Usually ships in 7-10 business days
