2021 Yamaha YZF-R3 Steering Handle & Cable OEM Parts Diagram

Submodel YZFR3 ABS - YZFR3AML - 2021

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

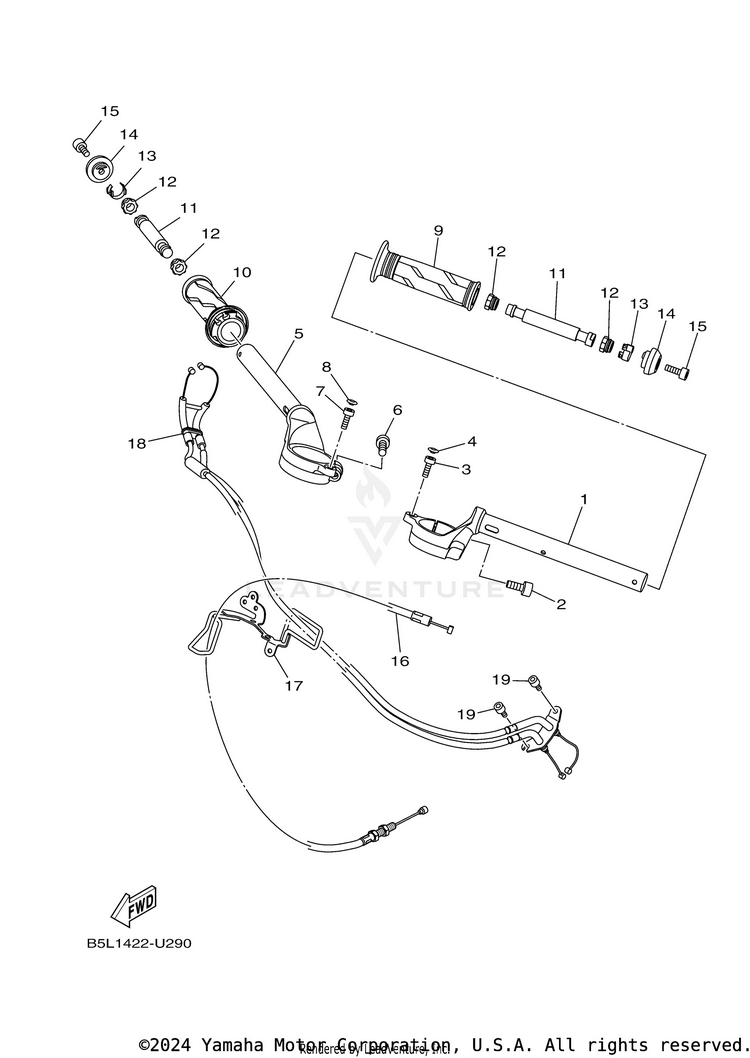

STEERING HANDLE & CABLE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BS7-F6121-00-00HANDLEBAR (LEFT)$70.99$55.37Usually ships in 7-10 business days
291317-08020-00BOLT, HEX. SOCKET HEAD$3.05$2.6210+ In-Stock
391317-06016-00BOLT (4MY)-$1.4210+ In-Stock
490338-05010-00PLUG$9.49$7.403 In-Stock
5BS7-F6122-01-00

(replaces part #
BS7-F6122-00-00)

HANDLEBAR (RIGHT)$65.99$51.47Usually ships in 7-10 business days
691317-08020-00BOLT, HEX. SOCKET HEAD$3.05$2.6210+ In-Stock
791317-06016-00BOLT (4MY)-$1.4210+ In-Stock
890338-05010-00PLUG$9.49$7.403 In-Stock
92DP-F6241-00-00GRIP$3.70$3.33Usually ships in 7-10 business days
101WD-F6240-00-00GRIP ASSY$13.49$11.06Usually ships in 7-10 business days
112MS-F622H-00-00WEIGHT$12.49$10.241 In-Stock
125YP-F622F-00-00

(replaces part #
1S7-F622F-00-00)

DAMPER, LOCATING 1$2.35$2.122 In-Stock
131S7-F6257-00-00STOPPER$3.80$3.421 In-Stock
141WD-F6246-00-00END, GRIP$8.49$6.624 In-Stock
1591317-06020-00BOLT, HEX. SOCKET HEAD$2.75$2.3610+ In-Stock
161WD-F6335-00-00CABLE, CLUTCH$36.99$30.752 In-Stock
17BS7-F6131-00-00GUIDE, CABLE 1$15.49$13.26Usually ships in 7-10 business days
18BS7-F6301-01-00THROTTLE CABLE ASSY$53.99$42.11Usually ships in 7-10 business days
1991312-05010-00BOLT, HEXAGON SOCKET HEAD$6.49$5.067 In-Stock
