2022 Yamaha MT-10 Headlight OEM Parts Diagram

Submodel MT10 - MT10NCB - 2022

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

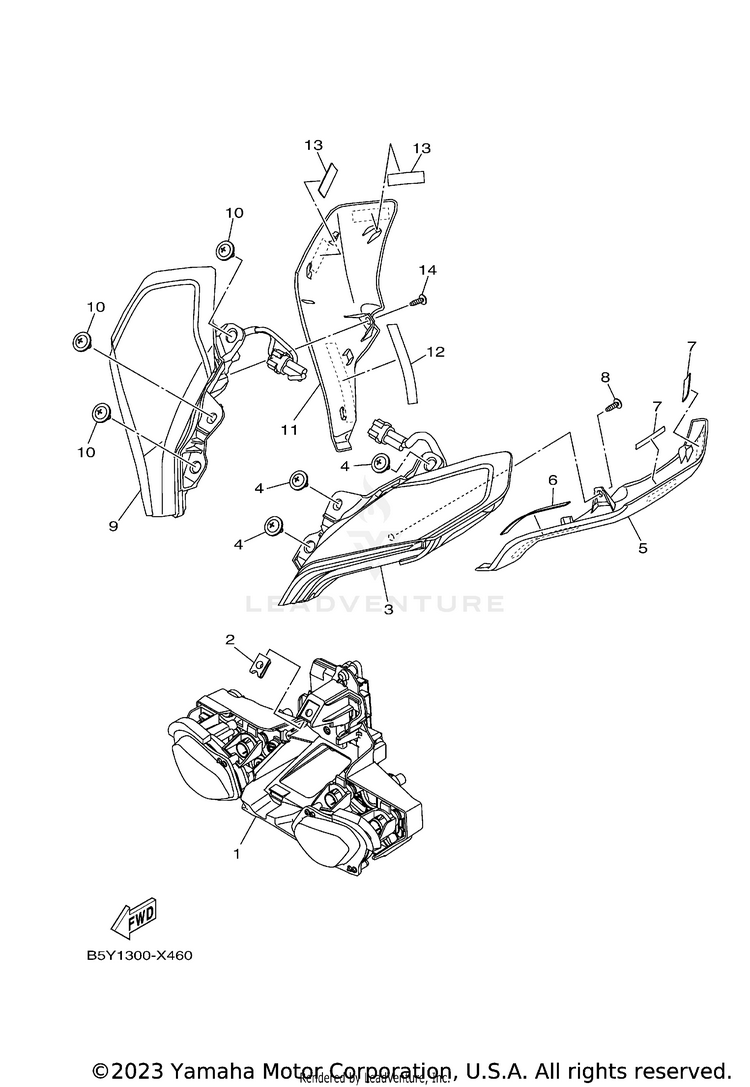

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B5Y-84300-00-00HEADLIGHT ASSY$1,132.99$988.39Usually ships in 7-10 business days
290183-060A6-00NUT, SPRING$5.99$4.6710+ In-Stock
3B5Y-84301-01-00

(replaces part #
B5Y-84301-00-00)

PILOT LIGHT ASSY 1$442.99$364.12Usually ships in 7-10 business days
490164-05001-00

(replaces part #
90164-05014-00)

SCREW, TAPPING$9.49$7.407 In-Stock
5B5Y-2835U-00-P0PANEL 1 | UR FOR MDNM6$62.99$49.13Usually ships in 7-10 business days
5B5Y-2835U-00-3EPANEL 1 | UR FOR PGD$51.99$40.55Usually ships in 7-10 business days
61RC-2111D-01-00

(replaces part #
1RC-2111D-00-00)

. .SEAL 1$5.49$4.94Usually ships in 7-10 business days
7B5Y-2173T-00-00TAPE 1$5.49$4.94Usually ships in 7-10 business days
897707-40014-00

(replaces part #
97702-40014-00)

SCREW, TAPPING$8.49$7.64Usually ships in 7-10 business days
9B5Y-84302-01-00

(replaces part #
B5Y-84302-00-00)

PILOT LIGHT ASSY 2$439.99$364.12Usually ships in 7-10 business days
1090164-05001-00

(replaces part #
90164-05014-00)

SCREW, TAPPING$9.49$7.407 In-Stock
11B5Y-2835V-00-P0PANEL 2 | UR FOR MDNM6$62.99$49.13Usually ships in 7-10 business days
11B5Y-2835V-00-3EPANEL 2 | UR FOR PGD$68.99$53.81Usually ships in 7-10 business days
121RC-2111D-01-00

(replaces part #
1RC-2111D-00-00)

. .SEAL 1$5.49$4.94Usually ships in 7-10 business days
13B5Y-2173T-00-00TAPE 1$5.49$4.94Usually ships in 7-10 business days
1497707-40014-00

(replaces part #
97702-40014-00)

SCREW, TAPPING$8.49$7.64Usually ships in 7-10 business days
