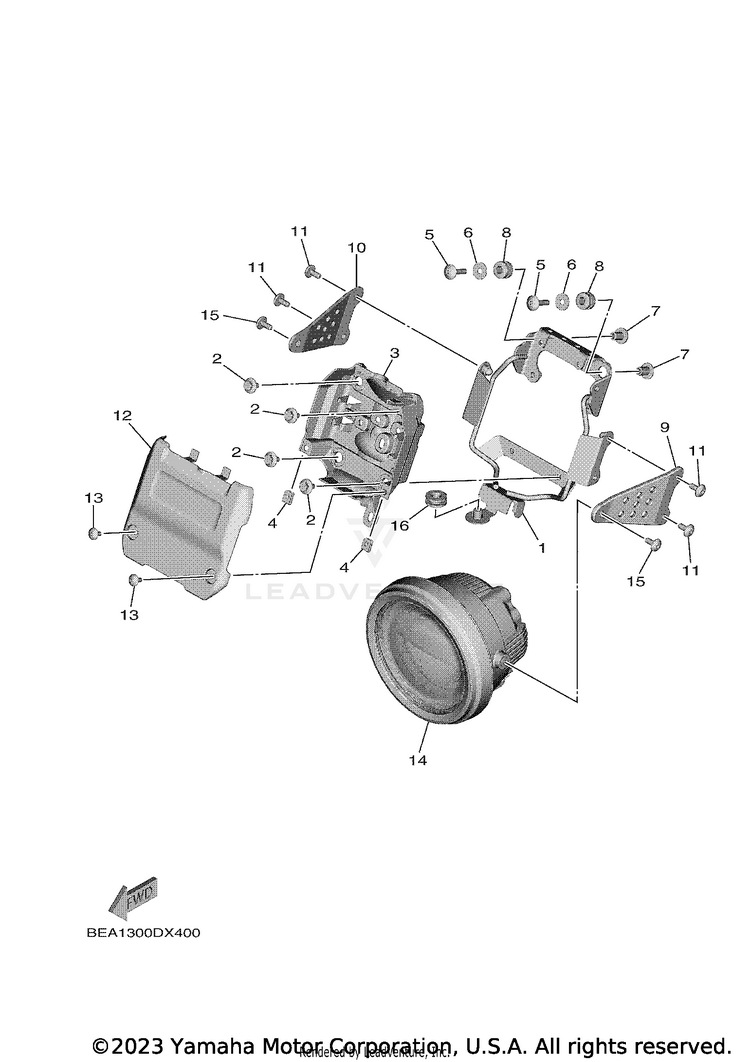

2022 Yamaha XSR900 Headlight OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	BEA-23174-00-00	STAY, HEADLIGHT	$177.99	$138.83	Usually ships in 7-10 business days
2	90109-06202-00	BOLT	$3.10	$2.67	10+ In-Stock
3	BEA-8431U-00-00	HOLDER	$12.49	$10.24	Usually ships in 7-10 business days
4	90183-050A6-00 (replaces part # 90183-05076-00)	NUT, SPRING	$2.95	$2.54	7 In-Stock
5	90111-06189-00	BOLTHEX. SOCKET BUTTON	$3.50	$3.15	Usually ships in 7-10 business days
6	90201-06095-00 (replaces part # 90201-06063-00)	WASHER, PLATE	$9.49	$7.40	7 In-Stock
7	90387-06365-00	COLLAR	$6.49	$5.84	Usually ships in 7-10 business days
8	90480-14036-00	GROMMET	$5.49	$4.94	Usually ships in 7-10 business days
9	BEA-23121-11-00 (replaces part # BEA-23121-10-00)	COVER, UPPER 1 \| UR FOR SMX	$42.99	$35.25	Usually ships in 7-10 business days
9	BEA-23121-01-00 (replaces part # BEA-23121-00-00)	COVER, UPPER 1 \| UR FOR BMC	$43.99	$36.07	1 In-Stock
10	BEA-23131-11-00 (replaces part # BEA-23131-10-00)	COVER, UPPER 2 \| UR FOR SMX	$43.99	$36.07	Usually ships in 7-10 business days
10	BEA-23131-01-00 (replaces part # BEA-23131-00-00)	COVER, UPPER 2 \| UR FOR BMC	$43.99	$36.07	Usually ships in 7-10 business days
11	90111-06095-00	BOLT, HEX. SOCKET BUTTON	$9.49	$7.40
12	BEA-2836K-00-00	PANEL, INNER 1	$19.49	$15.98	Usually ships in 7-10 business days
13	90111-05002-00	BOLT, HEX. SOCKET BUTTON	$8.49	$6.62	10+ In-Stock
14	BEA-84300-01-00 (replaces part # BEA-84300-00-00)	HEADLIGHT ASSY	$600.99	$523.54	Usually ships in 7-10 business days
15	90111-06095-00	BOLT, HEX. SOCKET BUTTON	$9.49	$7.40
16	90480-16014-00	GROMMET	$2.70	$2.43	Usually ships in 7-10 business days
