2022 Yamaha YZ450F Electrical 1 OEM Parts Diagram

Submodel YZ450F - YZ450FNL - 2022

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 1

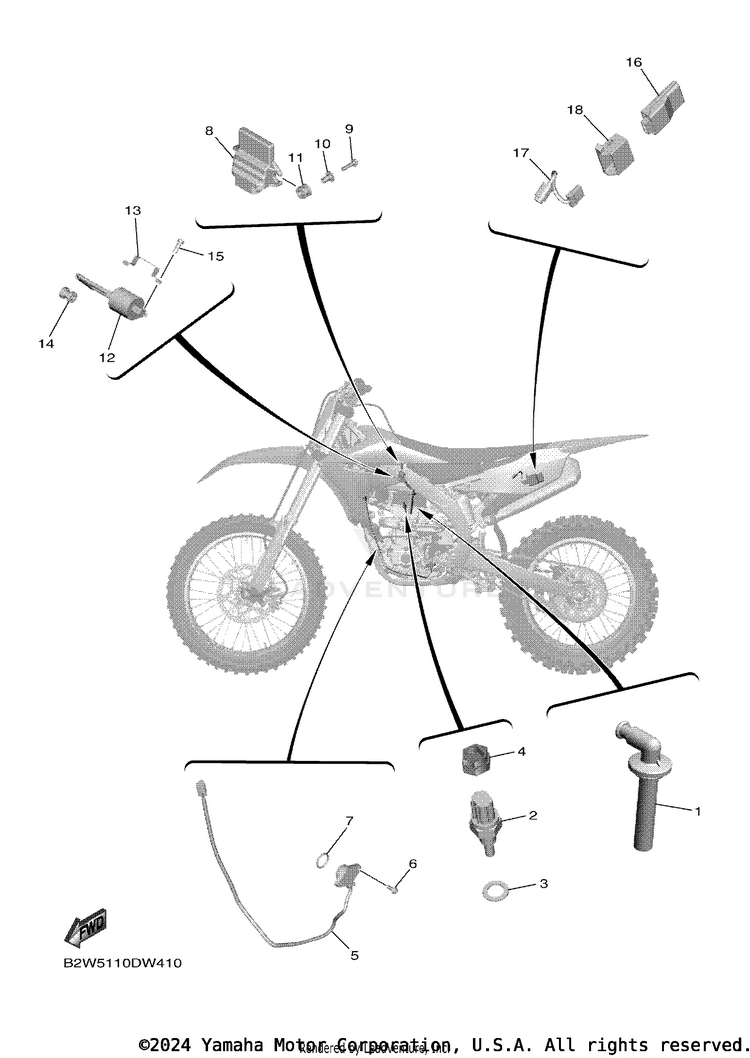

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B2W-82370-00-00PLUG CAP ASSY$150.99$117.774 In-Stock
252B-H3591-00-00

(replaces part #
4P9-83591-00-00)

THERMO UNIT$37.99$29.6310+ In-Stock
390430-10004-00GASKET$7.49$5.8410+ In-Stock
4B2W-82915-00-00HOLDER, LEVER UNDER$8.49$6.627 In-Stock
5B11-82540-01-00

(replaces part #
B11-82540-00-00)

NEUTRAL SWITCH ASSY$65.99$51.4710+ In-Stock
690110-05028-00

(replaces part #
90110-05062-00)

BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
793210-21001-00O-RING$6.49$5.0610+ In-Stock
8B2W-8591A-00-00ENGINE CONTROL UNI$655.99$511.67Usually ships in 7-10 business days
990105-05005-00BOLT, FLANGE$1.20$1.0310+ In-Stock
1090387-05048-00COLLAR$6.49$5.068 In-Stock
1190480-13029-00GROMMET$6.49$5.065 In-Stock
12BR9-82310-03-00

(replaces part #
BR9-82310-02-00)

IGNITION COIL ASSY$58.99$46.01Usually ships in 7-10 business days
13BR9-8231U-00-00CORE, SIDE$23.99$19.67Usually ships in 7-10 business days
1490480-11015-00GROMMET$3.95$3.403 In-Stock
1595E32-06016-00BOLT, FLANGE DEEP RECESS-$0.8510+ In-Stock
16BR9-85810-04-00

(replaces part #
BR9-85810-00-00)

COMMUNICATION CONT. UNIT ASSY$501.99$407.41Usually ships in 7-10 business days
17BR9-85721-00-00WIRE, LEAD$46.99$36.656 In-Stock
18BR9-85546-00-00BAND$25.99$20.275 In-Stock
