2023 Yamaha MT-07 Crankcase OEM Parts Diagram

Submodel MT07 - MT07PCB - 2023

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

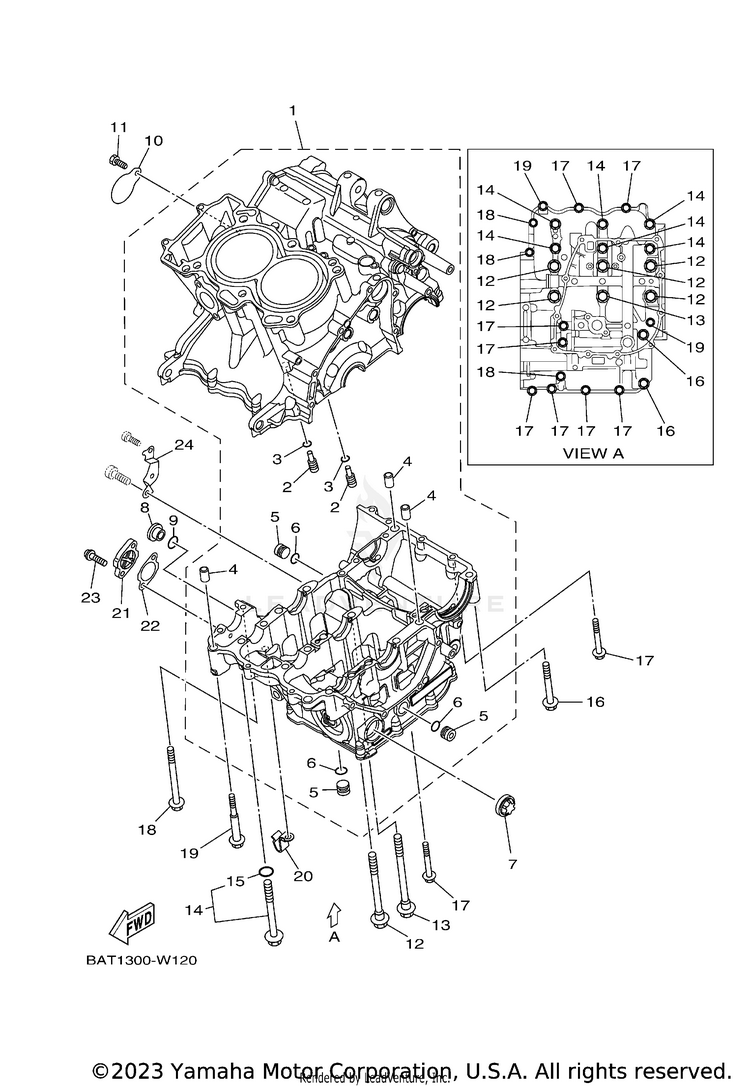

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11WS-15100-29-00CRANKCASE ASSY | MDNM9$1,908.99$1,548.44Usually ships in 7-10 business days
25EB-15155-00-00NOZZLE 3$15.49$12.70Usually ships in 7-10 business days
393210-04092-00O-RING$4.05$3.487 In-Stock
499530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
590338-16262-00PLUG$16.49$13.52Usually ships in 7-10 business days
693210-12790-00O-RING$8.49$6.628 In-Stock
72H7-15361-00-00GAUGE, LEVEL$105.99$82.67Usually ships in 7-10 business days
836Y-15189-01-00

(replaces part #
36Y-15189-00-00)

PLUG-$16.695 In-Stock
993210-16325-00O-RING$8.49$6.6210+ In-Stock
101WS-15189-00-00PLUG$7.49$6.74Usually ships in 7-10 business days
1197012-06014-00

(replaces part #
90101-06043-00)

BOLT$8.49$7.644 In-Stock
1290119-09014-00BOLT, WITH WASHER | (M9X1.25 - 80mm)$13.49$10.5210+ In-Stock
1390119-09018-00BOLT, WITH WASHER | (M9X1.25 - 90mm)$32.99$27.05Usually ships in 7-10 business days
141WS-15156-00-00BOLT, CRANKCASE JOURNAL$8.49$7.64Usually ships in 7-10 business days
1593210-07540-00O-RING$7.49$5.8410+ In-Stock
1695814-08065-00

(replaces part #
95812-08065-00)

BOLT, FLANGE$5.49$4.94Usually ships in 7-10 business days
1795817-06040-00

(replaces part #
95812-06040-00)

BOLT, FLANGE$6.49$5.0610+ In-Stock
1895812-06060-00BOLT, FLANGE$3.50$3.012 In-Stock
1990109-06100-00BOLT$9.49$8.54Usually ships in 7-10 business days
2090462-08102-00CLAMP$7.49$6.74Usually ships in 7-10 business days
211WS-15416-10-00COVER, OIL PUMP | MDNM9$17.49$14.34Usually ships in 7-10 business days
221WS-15456-01-00GASKET, OIL PUMP C$7.49$6.741 In-Stock
2390110-06396-00

(replaces part #
90110-06395-00)

BOLT, HEXAGON SOCKET HEAD$3.20$2.7510+ In-Stock
241WS-15128-00-00HOLDER$6.49$5.84Usually ships in 7-10 business days
