2023 Yamaha MT-10 SP Water Pump OEM Parts Diagram

Submodel MT10 SP - MT10SPPCS - 2023

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

WATER PUMP

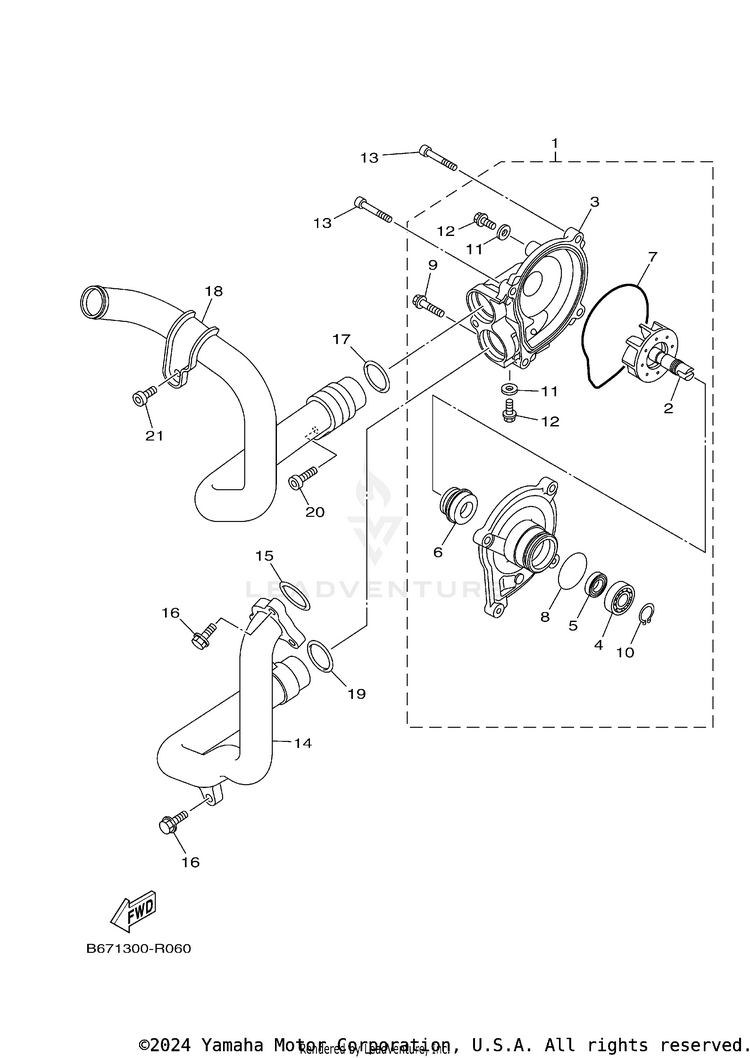

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B5Y-12420-00-00WATER PUMP ASSY$271.99$212.15Usually ships in 7-10 business days
22CR-12450-01-00IMPELLER SHAFT ASSY$63.99$49.91Usually ships in 7-10 business days
3B5Y-12422-00-00. .COVER, HOUSING$101.99$79.55Usually ships in 7-10 business days
493306-00105-00

(replaces part #
93306-00106-00)

BEARING$33.99$26.5110+ In-Stock
52CR-13338-00-00OIL SEAL$10.99$8.573 In-Stock
65VK-12438-00-00SEAL, MECHANICAL$66.99$52.251 In-Stock
74XV-12439-00-00O-RING$16.49$12.862 In-Stock
893210-33133-00O-RING$3.80$3.2710+ In-Stock
995024-06025-00BOLT, FLANGE (SMALL HEAD)-$2.5510+ In-Stock
1099009-12400-00CIRCLIP$3.59$3.0910+ In-Stock
1190430-06166-00GASKET$4.05$3.4810+ In-Stock
1295824-06010-00BOLT, FLANGE$9.49$8.54Usually ships in 7-10 business days
1391314-06035-00BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
142CR-12481-00-00PIPE 1$110.99$86.57Usually ships in 7-10 business days
1593210-27778-00

(replaces part #
93210-27194-00)

O-RING$9.49$7.4010+ In-Stock
1690105-06127-00BOLT, FLANGE$9.49$7.407 In-Stock
1793210-26006-00O-RING$9.49$7.405 In-Stock
18B67-12484-00-00PIPE 4$266.99$208.25Usually ships in 7-10 business days
1993210-26006-00O-RING$9.49$7.405 In-Stock
2090110-06138-00

(replaces part #
90110-06246-00)

BOLT$6.49$5.0610+ In-Stock
2191312-06014-00BOLT$5.49$4.2810+ In-Stock
