2023 Yamaha XSR700 Taillight OEM Parts Diagram

Submodel XSR700 - XSR700PB - 2023

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TAILLIGHT

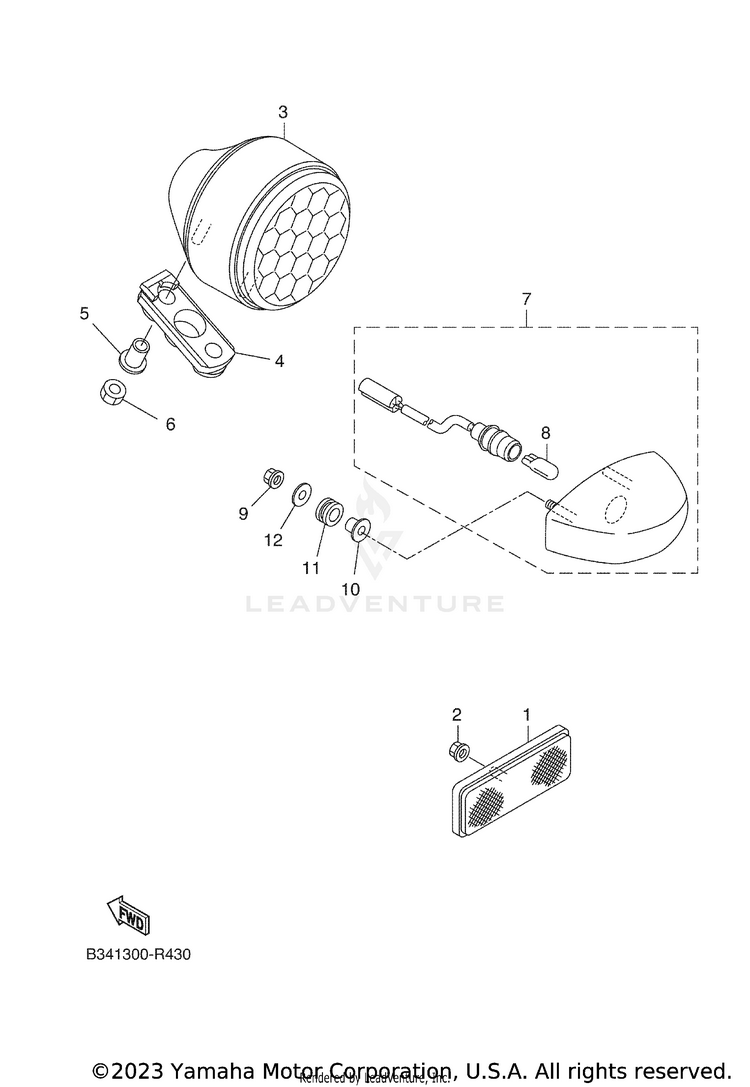

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13Y6-85130-02-00REAR REFLECTOR ASSY$30.99$24.173 In-Stock
295607-05200-00

(replaces part #
95602-05200-00)

NUT, U FLANGE$10.49$8.183 In-Stock
3B34-H4700-00-00TAILLIGHT ASSY$241.99$188.75Usually ships in 7-10 business days
4B34-H4736-00-00DAMPER, TAIL 1$24.99$20.49Usually ships in 7-10 business days
590387-06334-00COLLAR$9.99$8.99Usually ships in 7-10 business days
695380-06600-00

(replaces part #
95302-06600-00)

NUT, HEXAGON$4.90$4.605 In-Stock
7BEE-H4740-01-00

(replaces part #
BEE-H4740-00-00)

LICENSE LIGHT ASSY$68.99$53.81Usually ships in 7-10 business days
81TP-84347-00-00BULB (12V-5W)$7.49$5.841 In-Stock
995607-05200-00

(replaces part #
95602-05200-00)

NUT, U FLANGE$10.49$8.183 In-Stock
1090387-05042-00COLLAR$6.49$5.844 In-Stock
1190480-12023-00GROMMET$9.49$7.403 In-Stock
1290201-05556-00

(replaces part #
90201-054K4-00)

WASHER, PLATE$10.49$8.603 In-Stock
