2024 Yamaha MT-03 Steering Handle & Cable OEM Parts Diagram

Submodel MT-03 - MT03RB - 2024

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

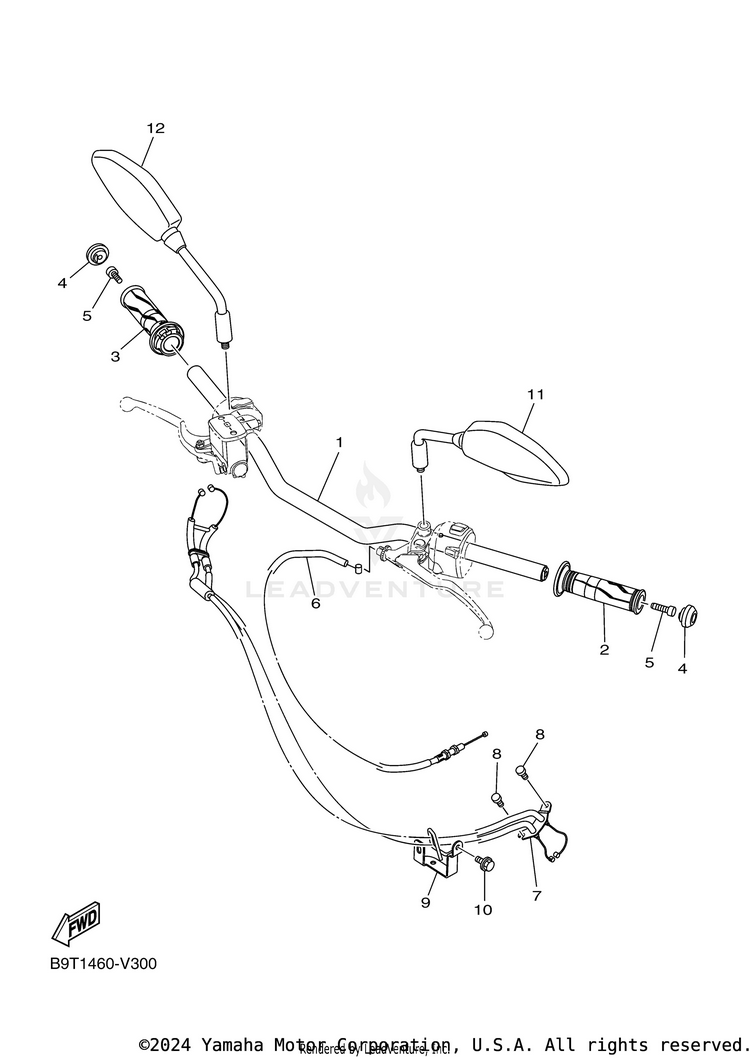

STEERING HANDLE & CABLE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B9T-F6111-00-00HANDLEBAR$39.99$33.82Usually ships in 7-10 business days
22DP-F6241-00-00GRIP$3.70$3.33Usually ships in 7-10 business days
31WD-F6240-00-00GRIP ASSY$13.49$11.06Usually ships in 7-10 business days
41WD-F6246-00-00END, GRIP$8.49$6.624 In-Stock
591317-06020-00BOLT, HEX. SOCKET HEAD$2.75$2.3610+ In-Stock
6B9T-F6335-00-00WIRE, CLUTCH$19.49$15.98Usually ships in 7-10 business days
7B9T-F6301-01-00

(replaces part #
B9T-F6301-00-00)

THROTTLE CABLE ASSY$42.99$35.25Usually ships in 7-10 business days
891312-05010-00BOLT, HEXAGON SOCKET HEAD$6.49$5.067 In-Stock
9B9T-F6315-00-00GUIDE, WIRE$6.49$5.84Usually ships in 7-10 business days
1095812-06010-00

(replaces part #
95802-06010-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
11B9T-F6280-00-00REAR VIEW MIRROR A$35.99$29.73Usually ships in 7-10 business days
12B9T-F6290-00-00REAR VIEW MIRROR A$33.99$27.87Usually ships in 7-10 business days
