2024 Yamaha MT-07 Meter OEM Parts Diagram

Submodel MT07 - MT07RCB - 2024

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

METER

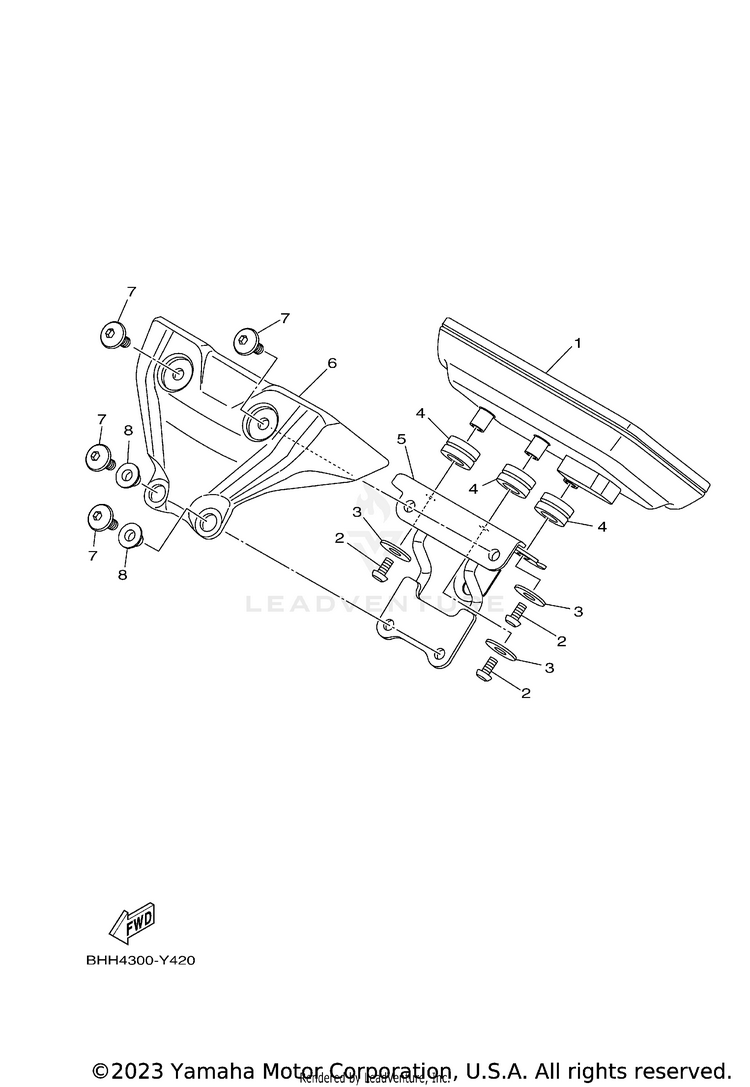

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B4T-83500-80-00METER ASSY$1,271.99$1,110.01Usually ships in 7-10 business days
292017-05010-00BOLT, BUTTON HEAD$8.49$7.64Usually ships in 7-10 business days
390201-05032-00WASHER, PLATE$9.49$8.54Usually ships in 7-10 business days
490480-14831-00GROMMET$1.85$1.66Usually ships in 7-10 business days
5BAT-83519-00-00BRACKET, METER$71.99$56.15Usually ships in 7-10 business days
6BAT-83559-10-00COVER, METER$16.49$13.52Usually ships in 7-10 business days
790111-06051-00BOLT, HEX. SOCKET BUTTON$6.49$5.0610+ In-Stock
890387-06242-00COLLAR$7.49$6.74Usually ships in 7-10 business days
