2024 Yamaha MT-10 Frame OEM Parts Diagram

Submodel MT10 - MT10RCGY - 2024

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

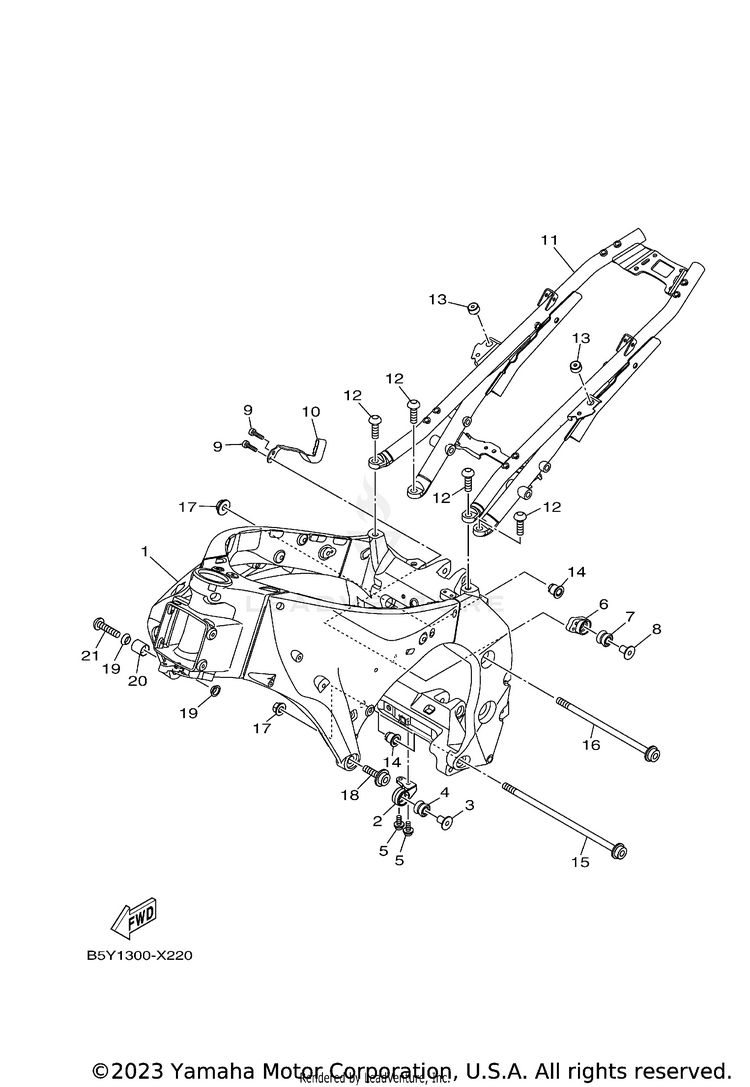

FRAME

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B67-21110-20-00FRAME COMP. | MDNM9$4,543.99$4,543.99Usually ships in 7-10 business days
2B67-21435-00-00BRACKET, MUFFLER 1$54.99$42.89Usually ships in 7-10 business days
390387-08021-00COLLAR$11.49$8.964 In-Stock
45VY-14747-00-00DAMPER, MUFFLER$15.49$12.0810+ In-Stock
590110-06248-00BOLT, HEXAGON SOCKET HEAD$4.05$3.488 In-Stock
62CR-21436-00-00BRACKET, MUFFLER 2$24.99$20.49Usually ships in 7-10 business days
75VY-14747-00-00DAMPER, MUFFLER$15.49$12.0810+ In-Stock
890387-08021-00COLLAR$11.49$8.964 In-Stock
991314-06020-00

(replaces part #
91312-06020-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.5710+ In-Stock
10B5Y-2148Y-00-00BRKT., 5$26.99$22.13Usually ships in 7-10 business days
11B5Y-21190-00-00REAR FRAME COMP. | MBL2$880.99$713.68Usually ships in 7-10 business days
1290149-10065-00

(replaces part #
90149-10064-00)

SCREW$5.49$4.94Usually ships in 7-10 business days
13157-27114-00-00STOPPER, MAIN STAND$10.99$8.571 In-Stock
145YU-21495-00-00BOLT, ENGINE ADJUSTING$18.99$15.57Usually ships in 7-10 business days
1590110-12010-00BOLT, HEXAGON SOCKET HEAD$30.99$25.41Usually ships in 7-10 business days
1690110-12008-00BOLT, HEXAGON SOCKET HEAD$25.99$21.31Usually ships in 7-10 business days
1790179-12004-00NUT$8.49$6.6210+ In-Stock
1890110-12007-00BOLT, HEXAGON SOCKET HEAD$7.49$6.741 In-Stock
1914B-21414-00-00BOSS, ENGINE MOUNT$24.99$20.49Usually ships in 7-10 business days
2014B-21424-00-00BOSS, ENGINE MOUNT$34.99$28.69Usually ships in 7-10 business days
2190111-12003-00BOLT, HEX. SOCKET BUTTON$8.49$7.64Usually ships in 7-10 business days
