2024 Yamaha Viking EPS Cylinder Head OEM Parts Diagram

Submodel VIKING EPS - YXM70VPARG - 2024

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

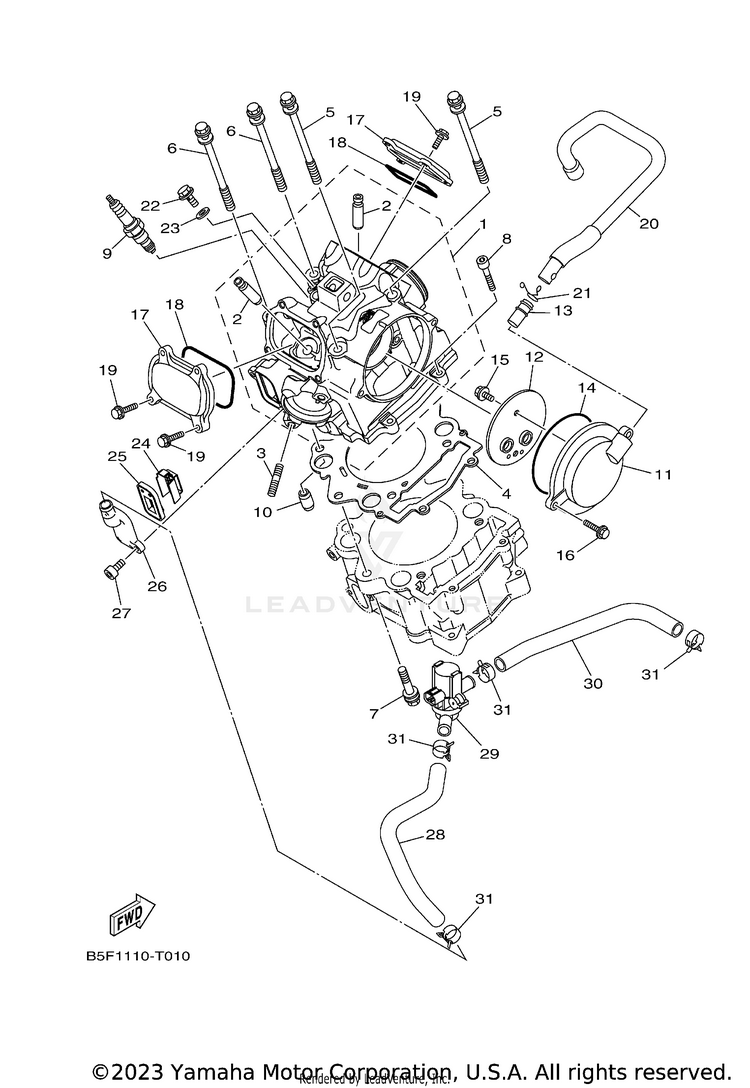

CYLINDER HEAD

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12BG-11102-00-00CYLINDER HEAD ASSY$901.99$703.554 In-Stock
24G0-11133-11-00GUIDE, VALVE 1$53.99$42.119 In-Stock
395612-08625-00BOLT, STUD$6.49$5.0610+ In-Stock
43B4-11181-00-00GASKET, CYLINDER HEAD 1$58.99$46.0110+ In-Stock
590109-09003-00BOLT$11.49$8.9610+ In-Stock
690109-09002-00BOLT$11.49$8.9610+ In-Stock
790109-09005-00BOLT$9.49$8.4010+ In-Stock
890110-06138-00

(replaces part #
91312-06030-00)

BOLT$6.49$5.0610+ In-Stock
9CPR-7EA90-00-00PLUG, SPARK (NGK CPR7EA)$18.99$14.8110+ In-Stock
1093612-16254-00PIN, DOWEL$6.49$5.0610+ In-Stock
113B4-11185-00-00COVER, CYLINDER HEAD SIDE 3$34.99$28.69Usually ships in 7-10 business days
123B4-11165-10-00PLATE, BREATHER$5.99$5.39Usually ships in 7-10 business days
13371-11167-01-00PIPE, BREATHER 2$14.49$11.301 In-Stock
1493210-96601-00O-RING$13.49$10.52
1595022-06012-00BOLT, FLANGE$3.55$3.0510+ In-Stock
1695022-06020-00BOLT, FLANGE$3.90$3.3510+ In-Stock
171S3-11186-00-00COVER, CYLINDER HEAD SIDE 2$33.99$27.87Usually ships in 7-10 business days
1893210-78544-00O-RING$13.49$10.5210+ In-Stock
1995022-06020-00BOLT, FLANGE$3.90$3.3510+ In-Stock
201XD-E1166-10-00PIPE, BREATHER 1$9.49$8.54Usually ships in 7-10 business days
2190467-140A4-00CLIP$10.49$8.185 In-Stock
2290401-08004-00BOLT, UNION$9.49$7.401 In-Stock
2390430-08119-00GASKET$7.49$5.849 In-Stock
242BG-1482K-00-00PLATE$15.49$12.70Usually ships in 7-10 business days
255JW-14890-00-00REED VALVE ASSY$71.99$56.15Usually ships in 7-10 business days
265JW-14889-00-00CAP, CASE$74.99$58.49Usually ships in 7-10 business days
2791314-06020-00

(replaces part #
90110-06175-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.5710+ In-Stock
281XD-E4881-00-00HOSE, BEND 1$8.49$7.64Usually ships in 7-10 business days
292BG-14840-00-00AIR CUT VALVE ASSY$159.99$124.79Usually ships in 7-10 business days
301XD-E4882-00-00HOSE, BEND 2$4.90$4.41Usually ships in 7-10 business days
3190467-17128-00

(replaces part #
90467-17089-00)

CLIP$9.49$7.4010+ In-Stock
