ELECTRICAL 2

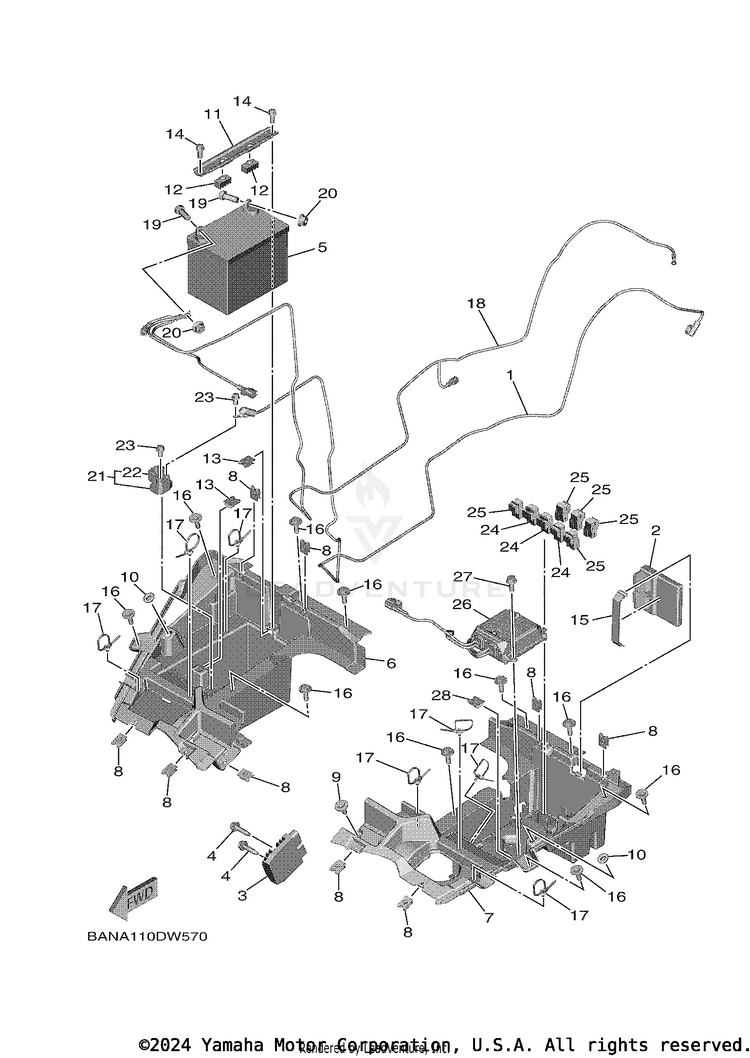

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BG4-81815-00-00CORD, STARTER MOTOR$116.99$91.25Usually ships in 7-10 business days
2BAR-8591A-01-00ENGINE CONTROL UNI$1,003.99$838.82Usually ships in 7-10 business days
3B5H-81960-00-00RECTIFIER & REGULATO$286.99$223.85Usually ships in 7-10 business days
490105-06833-00BOLT, FLANGE$2.30$1.983 In-Stock
511U-1LD00-00-00

(replaces part #
5UG-H2100-10-00)

BATTERY ASSY (GS U1L-11)$139.95$111.17Not Shipping
6BG4-H212B-00-00BOX, BATTERY 1$88.99$69.41Usually ships in 7-10 business days
7BG4-H2565-00-00PANEL, SWITCH$100.99$78.77Usually ships in 7-10 business days
890183-062A1-00NUT, SPRING$2.20$1.8910+ In-Stock
990119-06226-00BOLT, WITH WASHER$2.80$2.4110+ In-Stock
1090480-01558-00GROMMET$4.65$4.0010+ In-Stock
112HC-H2128-00-00BRACKET, BATTERY$11.49$9.42Usually ships in 7-10 business days
123C3-24741-00-00PAD, SEAT$10.99$8.5710+ In-Stock
1390183-062A1-00NUT, SPRING$2.20$1.8910+ In-Stock
1495022-06014-00BOLT, FLANGE$3.40$2.928 In-Stock
155JJ-82131-00-00BAND, BATTERY$14.49$11.881 In-Stock
16JW1-K6179-01-00

(replaces part #
90119-06868-00)

BOLT, SPECIAL 1$1.75$1.5010+ In-Stock
171NS-F1338-00-00CLAMP$3.60$3.104 In-Stock
18BG4-82116-00-00WIRE, MINUS LEAD$141.99$112.33Usually ships in 7-10 business days
1997080-08020-00BOLT$2.91$2.62Usually ships in 7-10 business days
2090179-08015-00NUT$10.49$8.60Usually ships in 7-10 business days
215B4-81940-00-00STARTER RELAY ASSY (RC19-080A)$110.99$86.579 In-Stock
AFTERMARKET ALTERNATIVE
$14.99$12.9910+ In-Stock
2242X-82151-00-00FUSE (10A-BL)$4.70$4.0410+ In-Stock
2395022-06008-00BOLT, FLANGE$9.49$7.4010+ In-Stock
245DM-81950-01-00RELAY ASSY (G8HN-1C4T-DJ-Y52)$31.99$24.9510+ In-Stock
258DM-81950-11-00RELAY ASSY (8DM-11)$33.99$26.519 In-Stock
26BAN-859A0-01-00POWER STRG. CONT. UNIT ASSY$1,135.99$950.89Usually ships in 7-10 business days
2795D32-06016-00BLOT, FLANGE DEEP RE$0.50$0.45Usually ships in 7-10 business days
2890183-062A1-00NUT, SPRING$2.20$1.8910+ In-Stock
