2024 Yamaha XT250 Starter Clutch OEM Parts Diagram

Submodel XT250 - XT250RC - 2024

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

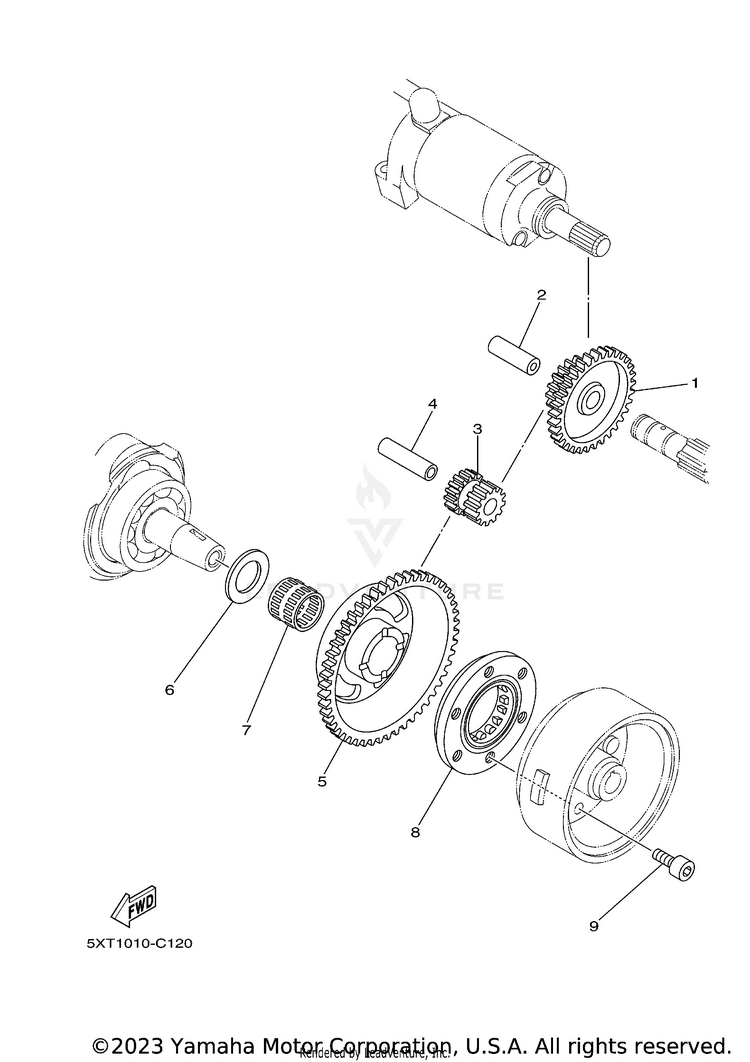

STARTER CLUTCH

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15XT-15512-00-00GEAR, IDLER 1 (19T/72T)$90.99$70.971 In-Stock
21VJ-15521-00-00SHAFT 1$22.99$17.933 In-Stock
35XT-15517-00-00GEAR, IDLER 2 (16T/14T)$69.99$54.593 In-Stock
436Y-15521-01-00UNAVAILABLE IN PRICE BOOK$24.99$19.496 In-Stock
55XT-15515-00-00GEAR 3 (71T)$151.99$118.592 In-Stock
690201-25291-00WASHER, PLATE$11.49$8.968 In-Stock
793310-225N0-00BEARING$49.99$38.996 In-Stock
85BP-15590-00-00STARTER ONE-WAY ASSY$275.99$215.2710+ In-Stock
991317-08016-00

(replaces part #
90110-08053-00)

BOLT$9.49$7.4010+ In-Stock
