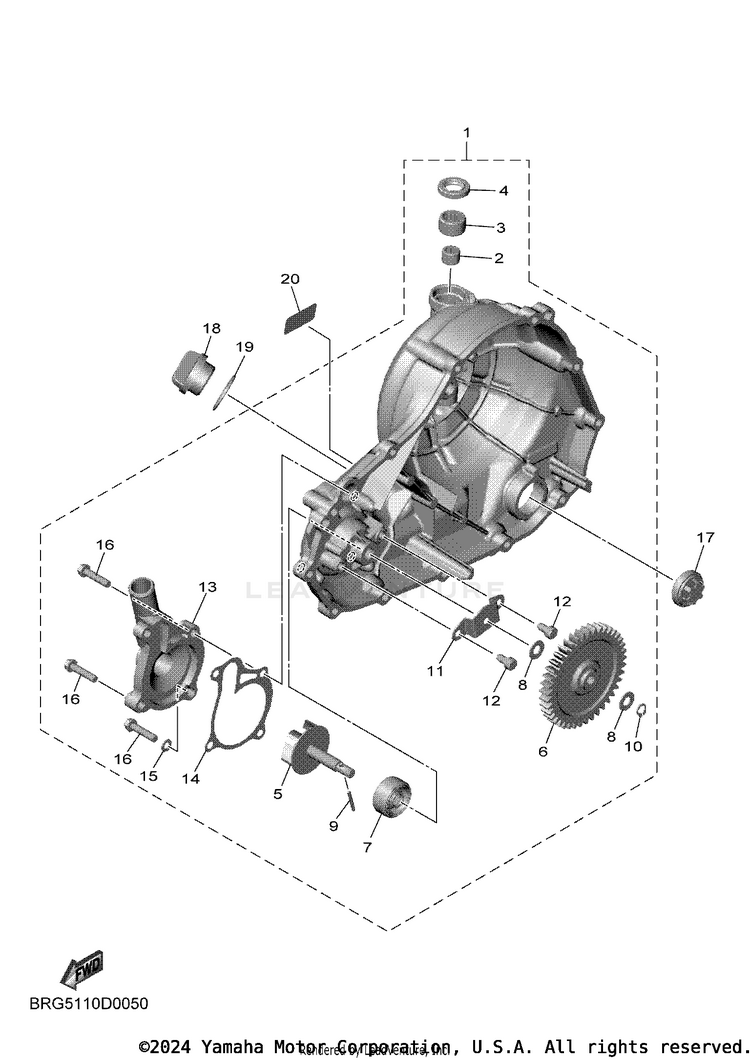

2025 Yamaha MT-03 Water Pump OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	BRA-E2420-00-00	WATER PUMP ASSY	$217.99	$179.32	Usually ships in 7-10 business days
2	93317-11096-00	BEARING	$25.99	$20.27	10+ In-Stock
3	93315-21570-00	BEARING	$18.49	$14.42	5 In-Stock
4	93102-15805-00 (replaces part # 93102-15801-00)	OIL SEAL	$8.49	$7.64	Usually ships in 7-10 business days
5	1WD-E2450-00-00	IMPELLER SHAFT ASSY	$55.99	$45.68	Usually ships in 7-10 business days
6	1WD-E2453-00-00	GEAR	$72.99	$60.19	Usually ships in 7-10 business days
7	33S-E2223-00-00	SEAL	$74.99	$58.49	Usually ships in 7-10 business days
8	33S-E2456-00-00	WASHER	$2.75	$2.48	Usually ships in 7-10 business days
9	1WD-E319L-00-00	PIN, STRAIGHT	$1.85	$1.66	Usually ships in 7-10 business days
10	99009-08400-00	CIRCLIP	$1.75	$1.50	4 In-Stock
11	1WD-E2681-00-00	PLATE	$51.99	$40.55	Usually ships in 7-10 business days
12	91317-06010-00 (replaces part # 91312-06010-00)	BOLT	$10.49	$8.18	4 In-Stock
13	BRA-E2422-00-00	. .COVER, HOUSING	$30.99	$25.41	Usually ships in 7-10 business days
14	1WD-E2428-00-00	GASKET, HOUSING COVER 2	$4.65	$4.00	2 In-Stock
15	90430-06014-00	GASKET	$8.99	$7.01	10+ In-Stock
16	95022-06025-00	BOLT, FLANGE	$1.90	$1.63	10+ In-Stock
17	2H7-15361-00-00	GAUGE, LEVEL	$105.99	$82.67	Usually ships in 7-10 business days
18	1WD-E5362-00-00	PLUG, OIL LEVEL	$7.49	$6.74	Usually ships in 7-10 business days
19	93210-27807-00	O-RING	$2.35	$2.12	Usually ships in 7-10 business days
20	BRA-E548B-00-00	OIL, LABEL	$2.55	$2.30	Usually ships in 7-10 business days
