2025 Yamaha MT-07 Crankcase OEM Parts Diagram

Submodel MT07 - MT07SCB - 2025

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

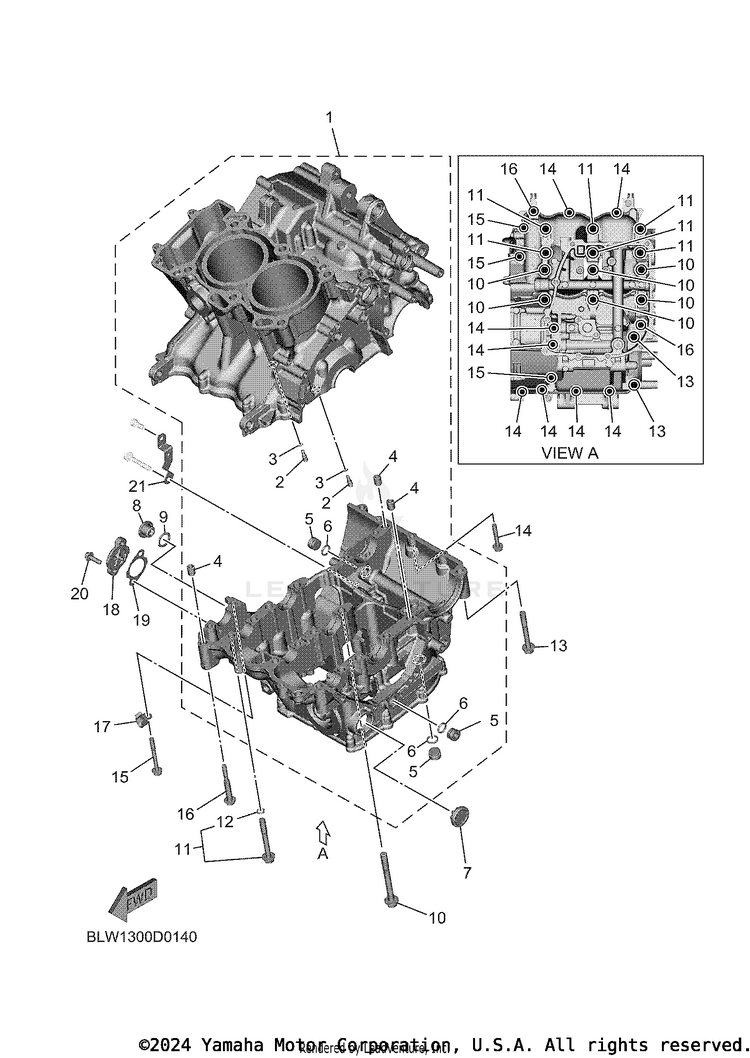

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BLW-15100-09-00CRANKCASE ASSY$1,921.99$1,681.60Usually ships in 7-10 business days
25EB-15155-00-00NOZZLE 3$15.49$12.70Usually ships in 7-10 business days
393210-04092-00O-RING$4.05$3.487 In-Stock
499530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
5BME-15189-00-00. .PLUG$10.49$8.60Usually ships in 7-10 business days
693210-12790-00O-RING$8.49$6.628 In-Stock
72H7-15361-00-00GAUGE, LEVEL$105.99$82.67Usually ships in 7-10 business days
836Y-15189-01-00PLUG-$16.695 In-Stock
993210-16325-00O-RING$8.49$6.6210+ In-Stock
1090119-09018-00BOLT, WITH WASHER | (M9X1.25 - 90mm)$32.99$27.05Usually ships in 7-10 business days
111WS-15156-00-00BOLT, CRANKCASE JOURNAL$8.49$7.64Usually ships in 7-10 business days
1293210-07540-00O-RING$7.49$5.8410+ In-Stock
1395814-08065-00

(replaces part #
95812-08065-00)

BOLT, FLANGE$5.49$4.94Usually ships in 7-10 business days
1495817-06040-00

(replaces part #
95812-06040-00)

BOLT, FLANGE$6.49$5.0610+ In-Stock
1595812-06060-00BOLT, FLANGE$3.50$3.012 In-Stock
1690109-06100-00BOLT$9.49$8.54Usually ships in 7-10 business days
1790462-08102-00CLAMP$7.49$6.74Usually ships in 7-10 business days
181WS-15416-10-00COVER, OIL PUMP | MDNM9$17.49$14.34Usually ships in 7-10 business days
19BLW-15456-00-00GASKET, OIL PUMP C$7.49$6.74Usually ships in 7-10 business days
2090110-06396-00

(replaces part #
90110-06395-00)

BOLT, HEXAGON SOCKET HEAD$3.20$2.7510+ In-Stock
21BLW-15128-00-00HOLDER$6.49$5.84Usually ships in 7-10 business days
