2025 Yamaha MT-09 SP Crankcase Cover OEM Parts Diagram

Submodel MT09 SP - MT09SPSCS - 2025

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE COVER

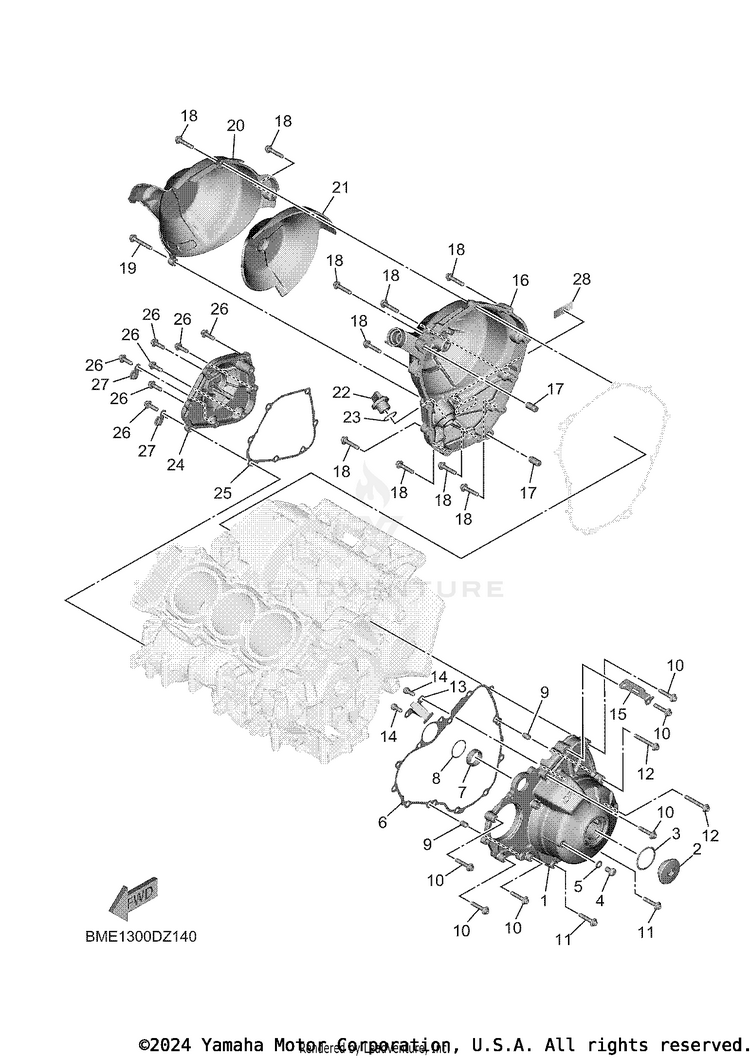

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BME-15411-00-00COVER, CRANKCASE 1 | MDNM9$145.99$113.87Usually ships in 7-10 business days
290340-36008-00PLUG STRAIGHT SCREW$22.99$18.85Usually ships in 7-10 business days
393210-35804-00

(replaces part #
93210-357A3-00)

O-RING-$8.1710+ In-Stock
492017-08012-00BOLT, BUTTON HEAD$9.49$7.404 In-Stock
590430-08143-00GASKET$3.45$2.975 In-Stock
6BD5-15451-01-00GASKET, CRANKCASE COVER 1$19.49$15.203 In-Stock
71RC-12564-00-00PIPE, WATER$7.49$6.74Usually ships in 7-10 business days
893210-28543-00O-RING$3.30$2.903 In-Stock
999530-08012-00PIN, DOWEL$6.99$5.4510+ In-Stock
1090110-06388-00BOLT, HEXAGON SOCKET HEAD$6.49$5.0610+ In-Stock
1190110-06388-00

(replaces part #
90110-06389-00)

BOLT, HEXAGON SOCKET HEAD$6.49$5.0610+ In-Stock
1290110-06394-00BOLT, HEXAGON SOCKET HEAD$2.60$2.246 In-Stock
131RC-15484-00-00CLAMP 2$5.99$5.39Usually ships in 7-10 business days
1491312-06014-00

(replaces part #
90110-06168-00)

BOLT$5.49$4.2810+ In-Stock
15B7N-14867-00-00BRACKET$5.00$4.50Usually ships in 7-10 business days
16B7N-15421-00-00COVER, CRANKCASE 2 | MDNM9$169.99$132.59Usually ships in 7-10 business days
1793610-20189-00PIN, DOWEL$4.50$4.051 In-Stock
1890110-06388-00BOLT, HEXAGON SOCKET HEAD$6.49$5.0610+ In-Stock
1990110-06321-00BOLT, HEXAGON SOCKET HEAD$3.85$3.46Usually ships in 7-10 business days
20B7N-15499-00-00PROTECTOR, COVER$36.99$30.33Usually ships in 7-10 business days
21B7N-15789-00-00DAMPER$6.49$5.84Usually ships in 7-10 business days
225GJ-15363-10-00PLUG, OIL$22.99$18.85Usually ships in 7-10 business days
2393210-19123-00O-RING$8.99$7.0110+ In-Stock
24B7N-15416-00-00COVER, OIL PUMP | MDNM9$63.99$49.91Usually ships in 7-10 business days
25B7N-15456-01-00GASKET, OIL PUMP COVER 1$12.49$10.24Usually ships in 7-10 business days
2690110-06396-00BOLT, HEXAGON SOCKET HEAD$3.20$2.7510+ In-Stock
27BME-15484-00-00CLAMP 2$9.49$8.54Usually ships in 7-10 business days
28B5Y-1548B-00-00OIL, LABEL$6.49$5.84Usually ships in 7-10 business days
