2025 Yamaha RAPTOR 700 Crankcase OEM Parts Diagram

Submodel RAPTOR 700 CAL - YFM70RCBSS - 2025

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

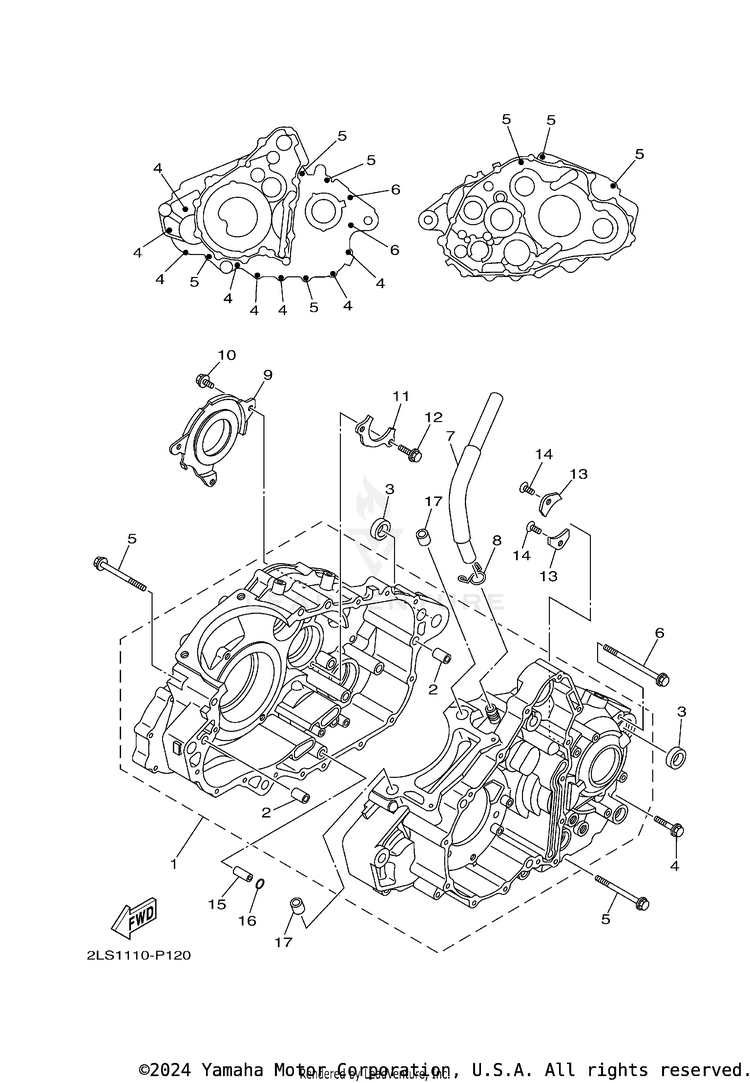

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11PE-15100-09-00CRANKCASE ASSY$1,395.99$1,156.381 In-Stock
299530-10114-00PIN, DOWEL$2.65$2.4810+ In-Stock
390387-17009-00COLLAR$17.49$13.6410+ In-Stock
495022-06030-00BOLT, FLANGE$1.80$1.5510+ In-Stock
595022-06070-00BOLT, FLANGE$2.40$2.067 In-Stock
695022-06090-00BOLT, FLANGE$2.50$2.153 In-Stock
72LS-E1166-00-00PIPE, BREATHER 1$5.99$5.39Usually ships in 7-10 business days
890467-140A4-00CLIP$10.49$8.185 In-Stock
91S3-11165-00-00PLATE, BREATHER$18.99$15.57Usually ships in 7-10 business days
1095022-06012-00

(replaces part #
90105-06081-00)

BOLT, FLANGE$3.55$3.0510+ In-Stock
111S3-15383-00-00PLATE, BEARING COVER$8.49$7.644 In-Stock
1295022-06020-00

(replaces part #
90105-06082-00)

BOLT, FLANGE$3.90$3.3510+ In-Stock
134JT-15381-01-00PLATE, BEARING COVER$14.49$11.3010+ In-Stock
1490151-06052-00

(replaces part #
90149-06074-00)

SCREW$9.49$7.4010+ In-Stock
1591808-16023-00

(replaces part #
99530-08016-00)

PIN, DOWEL$7.99$6.2310+ In-Stock
1693210-07135-00O-RING$6.99$5.4510+ In-Stock
AFTERMARKET ALTERNATIVE
$10.45$4.9910+ In-Stock
1799530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
