2025 Yamaha Wolverine RMAX4 1000 Limited Electrical 5 OEM Parts Diagram

Submodel WOLVERINE RMAX4 1000 - YXF10WLLSL - 2025

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 5

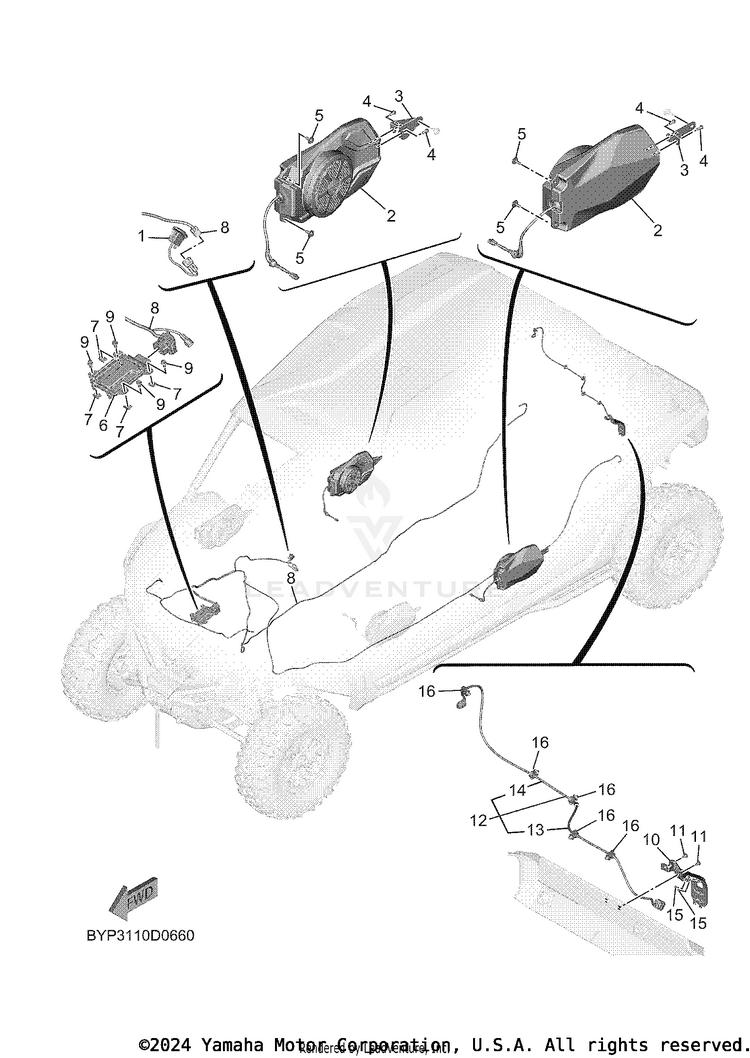

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B4J-H1860-01-00SWITCH ASSY$138.99$108.41Usually ships in 7-10 business days
2BKP-H8161-11-00SPEAKER 1$624.99$487.49Usually ships in 7-10 business days
3BKP-H1948-00-00BRACKET$34.99$28.692 In-Stock
4BKP-H3358-00-00SCREW, SPECIAL$8.49$7.644 In-Stock
590119-06226-00BOLT, WITH WASHER$2.80$2.4110+ In-Stock
6B4J-H1930-00-00CONTROL UNIT ASSY$541.99$450.90Usually ships in 7-10 business days
790183-062A1-00NUT, SPRING$2.20$1.8910+ In-Stock
8BYP-H8189-00-00WIRE, SUB LEAD$230.99$180.171 In-Stock
995D32-06012-00BOLT, FLANGE DEEP RECESS$9.49$8.54Usually ships in 7-10 business days
10BKP-H182J-00-00BRACKET COMPLETE$12.49$10.24Usually ships in 7-10 business days
1190269-05055-00RIVET$9.49$7.4010+ In-Stock
12BKP-H62C0-01-00CAMERA UNIT ASSY.$222.99$173.93Usually ships in 7-10 business days
13BKP-H8146-00-00. .CABLE 1$287.99$224.63Usually ships in 7-10 business days
14BKP-H8147-00-00. .CABLE 2$35.99$29.51Usually ships in 7-10 business days
1590149-02800-00SCREW$0.90$0.81Usually ships in 7-10 business days
1690464-12830-00CLAMP | d: 12mm$1.60$1.3810+ In-Stock
