2025 Yamaha XSR900 Frame OEM Parts Diagram

Submodel XSR900 - XSR900SCB - 2025

Shop Aftermarket Parts

FRAME

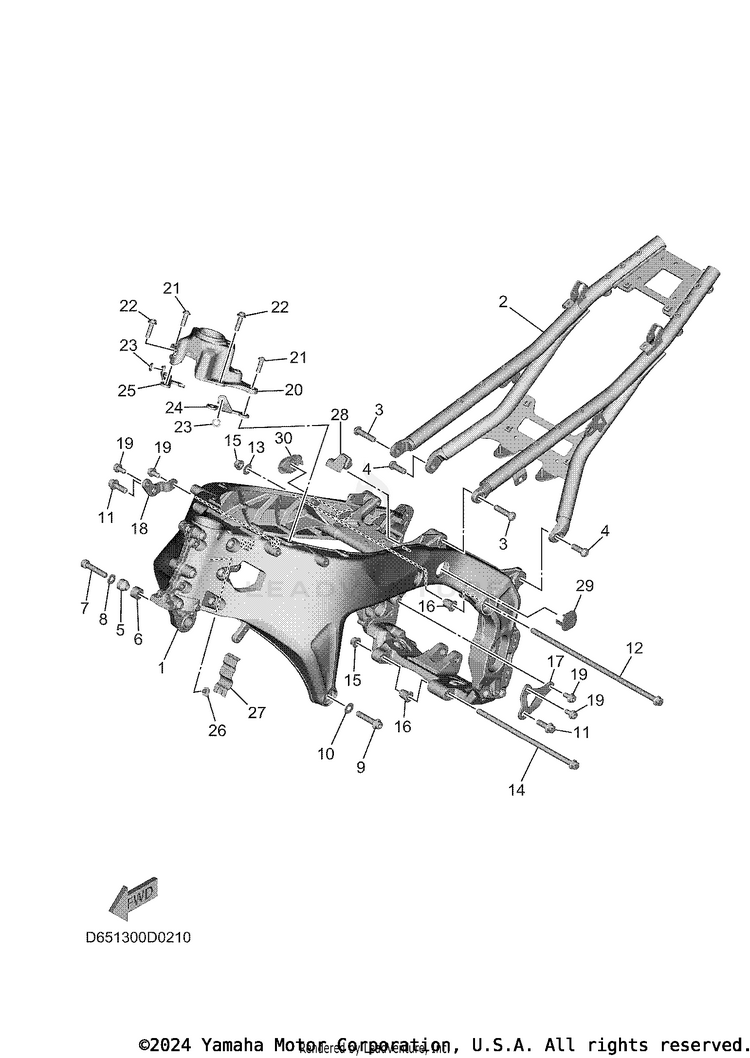

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BEA-2111B-09-00FRAME SUB COMP.$1,913.99$1,674.54Usually ships in 7-10 business days
2BMG-21190-19-00REAR FRAME COMP.$945.99$791.79Usually ships in 7-10 business days
390149-10077-00

(replaces part #
90149-10076-00)

SCREW$4.20$3.78Usually ships in 7-10 business days
490149-10060-00

(replaces part #
90149-10074-00)

SCREW$8.49$7.64Usually ships in 7-10 business days
52C0-21414-00-00BOSS, ENGINE MOUNT$31.99$26.23Usually ships in 7-10 business days
65VY-21424-00-00BOSS, ENGINE MOUNT$33.99$27.87Usually ships in 7-10 business days
790110-10058-00BOLT, HEXAGON SOCK$8.49$7.64Usually ships in 7-10 business days
890201-10083-00WASHER, PLATE$2.85$2.56Usually ships in 7-10 business days
990110-10059-00BOLT, HEXAGON SOCK$6.49$5.84Usually ships in 7-10 business days
1090201-10084-00WASHER PLATE$4.30$3.87Usually ships in 7-10 business days
1195D37-10025-00BOLT, FLANGE DEEP RE$2.50$2.25Usually ships in 7-10 business days
1290105-10487-00BOLT FLANGE$35.99$29.51Usually ships in 7-10 business days
1390201-10084-00WASHER PLATE$4.30$3.87Usually ships in 7-10 business days
1490105-10488-00BOLT FLANGE$19.49$15.98Usually ships in 7-10 business days
1590179-10658-00

(replaces part #
90179-10247-00)

NUT$10.49$8.1810+ In-Stock
164C8-21495-00-00BOLT, ENGINE ADJUSTING$22.99$18.85Usually ships in 7-10 business days
17BEA-21315-00-00STAY, ENGINE 1$11.49$9.42Usually ships in 7-10 business days
18B7N-21316-01-00STAY, ENGINE 2$7.49$6.74Usually ships in 7-10 business days
1990109-085E2-00BOLT$8.49$6.6210+ In-Stock
20B7N-2137F-00-00STAY 1$98.99$77.21Usually ships in 7-10 business days
2190109-08247-00

(replaces part #
90109-08246-00)

BOLT$5.49$4.94Usually ships in 7-10 business days
2291312-08030-00

(replaces part #
90110-08126-00)

BOLT, HEXAGON SOCKET HEAD$9.49$8.54Usually ships in 7-10 business days
23BEA-28372-00-00DAMPER$1.75$1.58Usually ships in 7-10 business days
24BEA-2142G-00-00STAY 1$14.49$11.88Usually ships in 7-10 business days
25BEA-2142H-00-00STAY 2$12.49$10.24Usually ships in 7-10 business days
265VX-21289-00-00PLUG, BLIND$4.45$4.00Usually ships in 7-10 business days
271HP-H2176-01-00

(replaces part #
34D-82176-00-00)

DAMPER$2.40$2.16Usually ships in 7-10 business days
28B7N-2117F-00-00COVER$6.49$5.84Usually ships in 7-10 business days
29BEA-2117X-00-00COVER 9$13.49$11.06Usually ships in 7-10 business days
30BEA-2117Y-00-00COVER 10$13.49$11.06Usually ships in 7-10 business days
