2025 Yamaha XT250 Transmission OEM Parts Diagram

Submodel XT250 - XT250SC - 2025

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TRANSMISSION

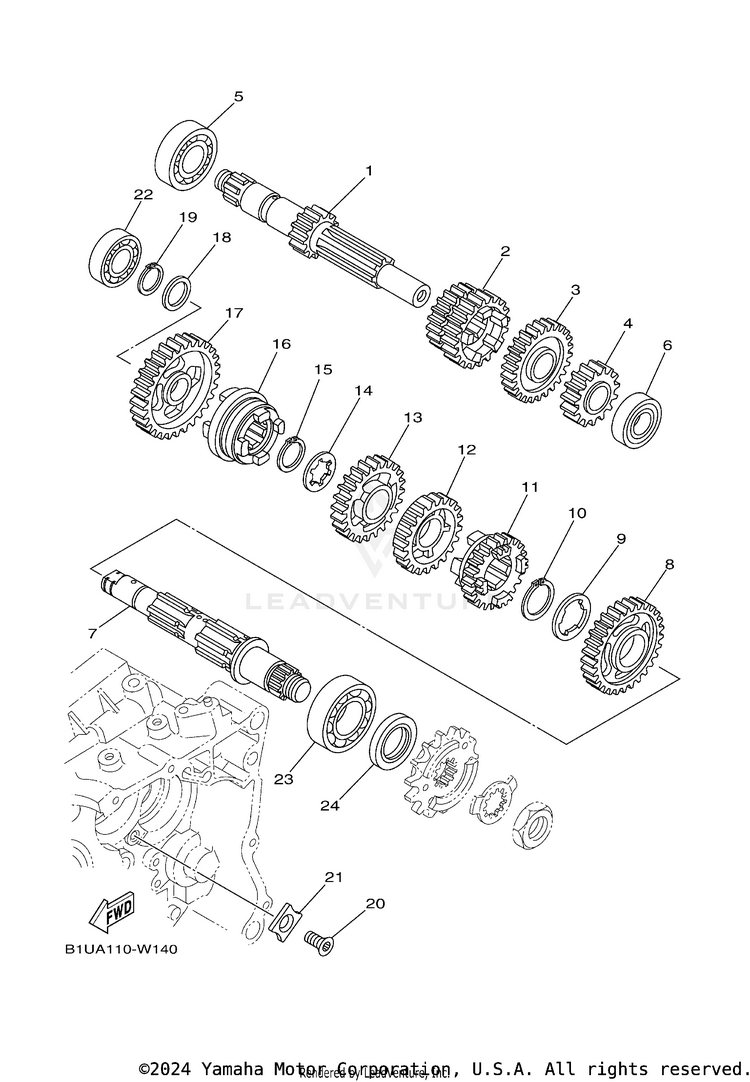

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15XT-17411-00-00AXLE, MAIN (13T)$123.99$96.71Usually ships in 7-10 business days
25XT-17131-00-00GEAR, 3RD PINION (22T/28T)$105.99$82.67Usually ships in 7-10 business days
35XT-17151-10-00GEAR, 5TH PINION (28T)$77.99$60.83Usually ships in 7-10 business days
451Y-17121-00-00GEAR, 2ND PINION (16T)$23.99$19.67Usually ships in 7-10 business days
593306-20447-00

(replaces part #
93306-20427-00)

BEARING$45.99$35.8710+ In-Stock
693306-00320-00BEARING$39.99$31.195 In-Stock
73C5-17402-00-00DRIVE AXLE ASSY$142.99$113.24Usually ships in 7-10 business days
85XT-17221-00-00GEAR, 2ND WHEEL (29T)$97.99$76.43Usually ships in 7-10 business days
990209-23241-00WASHER$3.95$3.56Usually ships in 7-10 business days
1093410-26067-00CIRCLIP$9.49$7.4010+ In-Stock
115XT-17251-10-00GEAR, 5TH WHEEL (23T)$132.99$103.73Usually ships in 7-10 business days
125XT-17241-00-00GEAR, 4TH WHEEL (29T)$63.99$49.91Usually ships in 7-10 business days
135XT-17231-00-00GEAR, 3RD WHEEL (29T)$73.99$57.71Usually ships in 7-10 business days
1490209-18208-00WASHER$9.49$8.54Usually ships in 7-10 business days
1593410-22039-00CIRCLIP$9.49$7.4010+ In-Stock
165BP-17285-00-00CLUTCH, DOG$46.99$38.53Usually ships in 7-10 business days
173C5-17211-00-00GEAR, 1ST WHEEL (37T)$86.99$67.85Usually ships in 7-10 business days
1890201-177G4-00WASHER, PLATE$10.49$8.183 In-Stock
1993410-17037-00CIRCLIP$9.49$7.404 In-Stock
2090151-06014-00

(replaces part #
90151-06008-00)

SCREW, COUNTERSUNK$10.49$8.60Usually ships in 7-10 business days
213C5-17558-00-00PLATE, BEARING$6.49$5.84Usually ships in 7-10 business days
2293306-20332-00BEARING$42.99$33.5310+ In-Stock
2393306-20532-00BEARING$72.99$56.9310+ In-Stock
2493102-25226-00OIL SEAL$16.49$12.8610+ In-Stock
