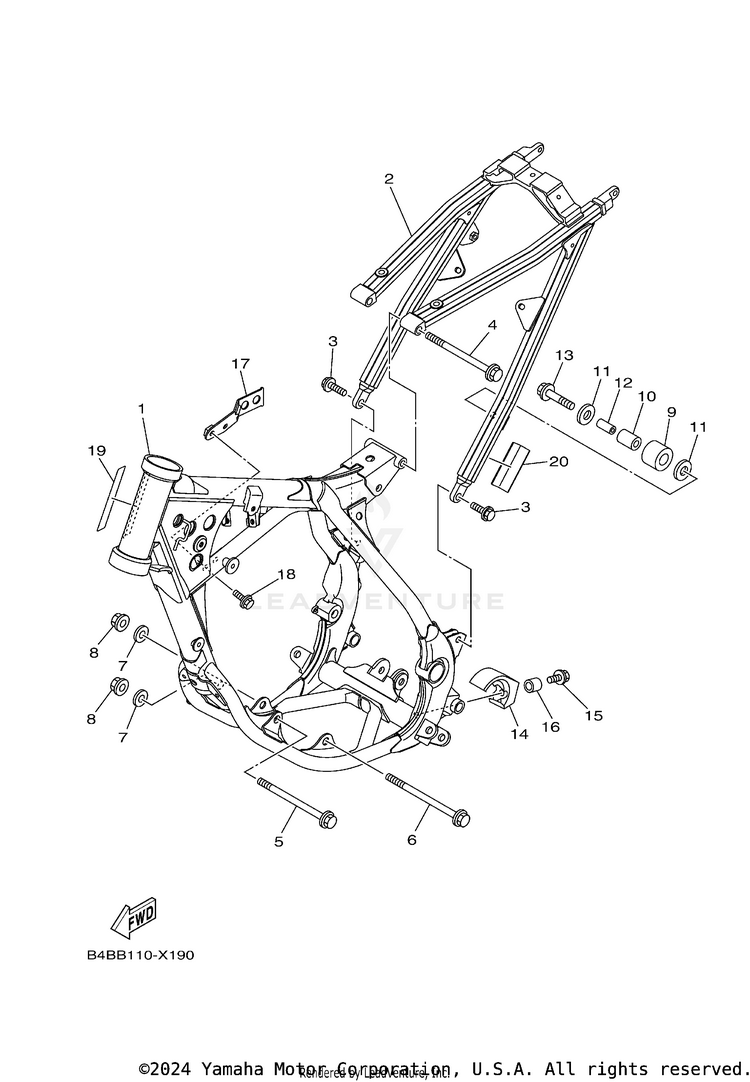

2025 Yamaha YZ85 Frame OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	DA8-21101-00-00 (replaces part # B4B-21101-00-00)	FRONT FRAME COMP.	$1,175.00	$1,028.12	Usually ships in 7-10 business days
2	B4B-21190-00-00	REAR FRAME COMP.	$640.99	$499.97	Usually ships in 7-10 business days
3	90105-08307-00	BOLT, FLANGE	$10.49	$8.18	10+ In-Stock
4	90105-08097-00	BOLT, FLANGE	$5.49	$4.94	Usually ships in 7-10 business days
5	90105-10220-00	BOLT, FLANGE	$11.49	$8.96	3 In-Stock
6	90105-10174-00	BOLT, FLANGE	$12.49	$9.74	6 In-Stock
7	90201-10045-00	WASHER, PLATE	$9.49	$7.40	10+ In-Stock
8	90179-10024-00	NUT	$11.49	$8.96	10+ In-Stock
9	30X-22178-00-00	TENSIONER	$38.99	$30.41	10+ In-Stock
10	4V4-22184-00-00	BUSH	$4.80	$4.13	10+ In-Stock
11	90201-08045-00	WASHER, PLATE	$6.49	$5.06	9 In-Stock
12	90387-08041-00	COLLAR	$9.49	$7.40	6 In-Stock
13	95E32-08040-00	BOLT, FLANGE DEEP RECESS	$0.95	$0.82	3 In-Stock
14	4ES-22178-01-00	TENSIONER	$9.49	$7.40	7 In-Stock
15	90119-06200-00	BOLT, WITH WASHER	$9.49	$8.54	Usually ships in 7-10 business days
16	90387-064T3-00	COLLAR	$8.49	$6.62	10+ In-Stock
17	5PA-21274-10-00	BRACKET, C.D.I. UNIT	$14.49	$11.88	2 In-Stock
18	95E32-06012-00	BOLT, FLANGE DEEP RECESS	-	$1.70	10+ In-Stock
19	3HA-24141-00-00	PROTECTOR, FUEL TANK	$15.49	$12.70	Usually ships in 7-10 business days
20	B4B-2110M-00-00	COVER ASSY 1	$57.99	$45.23	Usually ships in 7-10 business days
