2025 Yamaha YZ85LW Front Master Cylinder OEM Parts Diagram

Submodel YZ85 LW - YZ85LWS - 2025

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

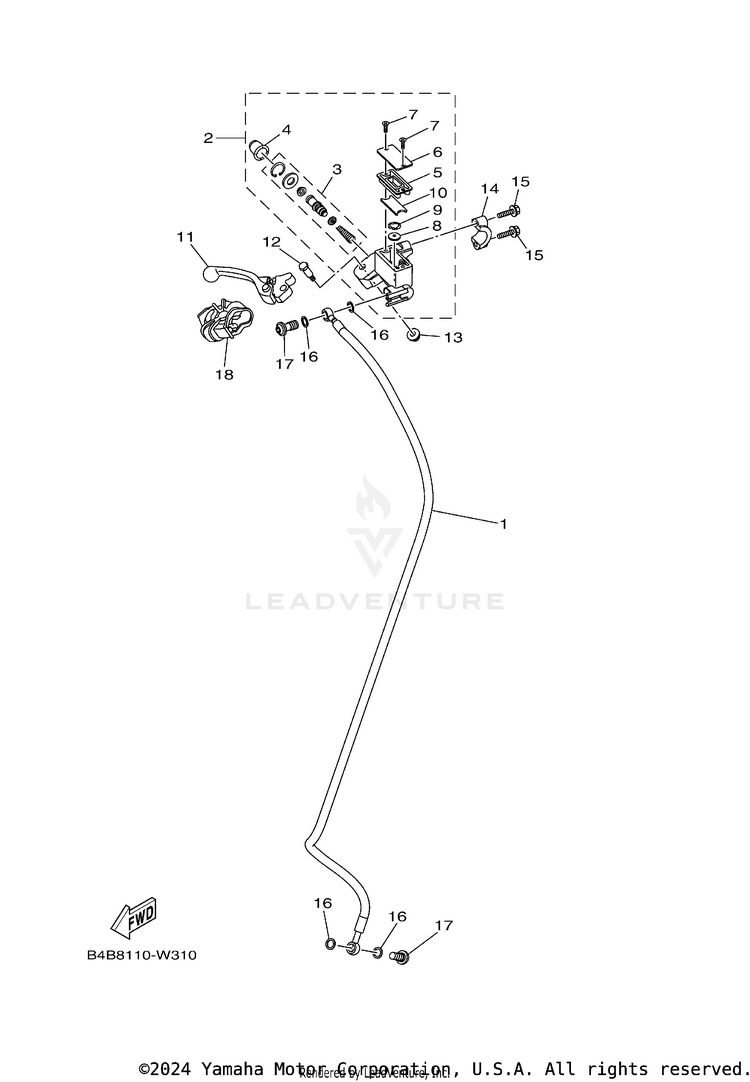

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B0G-25872-00-00HOSE, BRAKE 1$150.99$117.77Usually ships in 7-10 business days
25XE-W2587-01-00MASTER CYLINDER SUB$200.99$156.779 In-Stock
35NY-W0041-01-00CYLINDER KIT, MASTER$60.99$47.579 In-Stock
AFTERMARKET ALTERNATIVE
$29.80$28.3110+ In-Stock
45NY-25868-01-00BOOT, MASTER CYLINDER$5.99$4.671 In-Stock
55XE-25854-00-00DIAPHRAGM, RESERVOIR$16.49$12.8610+ In-Stock
65MV-25852-01-00CAP, RESERVOIR$14.49$11.303 In-Stock
798707-04012-00SCREW, FLAT HEAD-$1.9410+ In-Stock
85CG-25715-00-00SEPARATOR ASSY$14.49$11.305 In-Stock
95CG-2585G-00-00CIRCLIP$5.99$4.676 In-Stock
105XE-25853-00-00FLOAT, RESERVOIR$8.49$6.624 In-Stock
115MV-83922-00-00LEVER 2$56.99$44.456 In-Stock
125MV-2589F-00-00BOLT, LEVER$7.49$5.8410+ In-Stock
1395780-06500-00

(replaces part #
95701-06500-00)

NUT, FLANGE$2.95$2.5410+ In-Stock
145MV-25867-00-00BRACKET, MASTER CYLINDER$22.99$17.934 In-Stock
155MV-25833-00-00BOLT, FITTING$7.49$5.846 In-Stock
1690430-10005-00GASKET$9.49$7.4010+ In-Stock
1790401-10172-00BOLT, UNION$6.49$5.0610+ In-Stock
185NY-26372-00-00COVER, HANDLE LEVER 1$22.99$17.9310+ In-Stock
