2026 Yamaha MT-03 Shift Cam & Fork OEM Parts Diagram

Submodel MT03 - MT03TCB - 2026

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT CAM & FORK

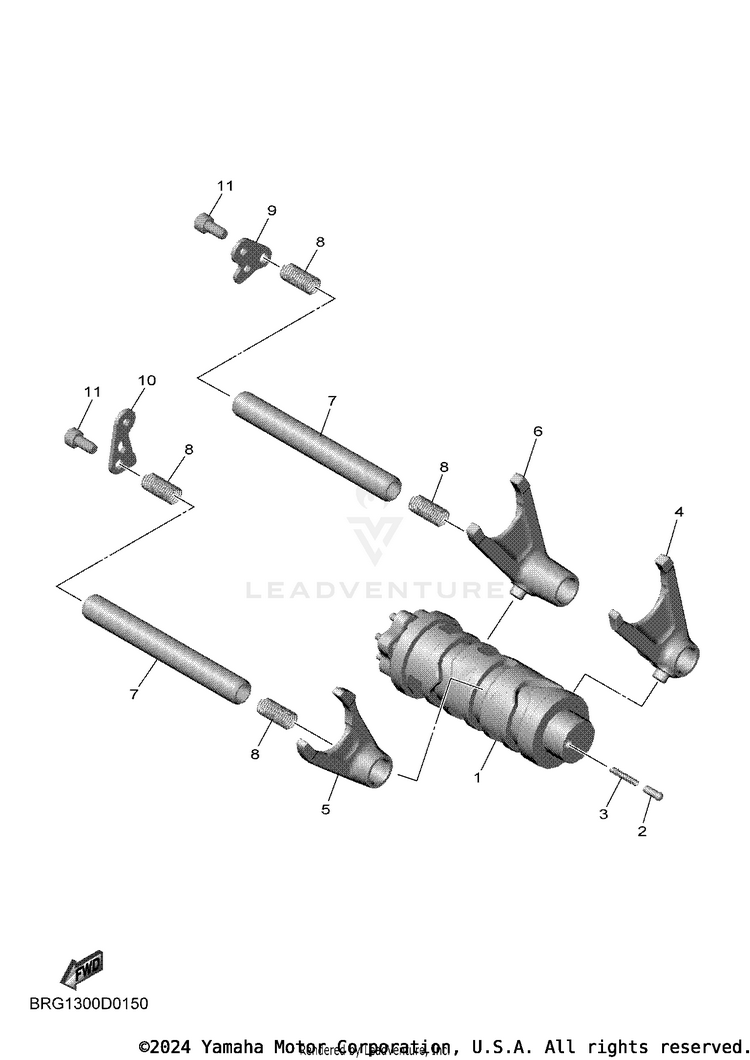

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11WD-E8540-11-00SHIFT CAM ASSY$110.99$91.65Usually ships in 7-10 business days
25TP-E8542-00-00POINT, NEUTRAL$0.60$0.54Usually ships in 7-10 business days
390501-06022-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
41WD-E8511-00-00FORK, SHIFT 1$19.49$15.98Usually ships in 7-10 business days
51WD-E8512-00-00FORK, SHIFT 2$57.99$47.62Usually ships in 7-10 business days
61WD-E8513-00-00FORK, SHIFT 3$21.99$18.03Usually ships in 7-10 business days
71WD-E8531-00-00BAR, SHIFT FORK GUIDE 1$14.49$11.88Usually ships in 7-10 business days
890501-080A2-00SPRING, COMPRESSION$8.49$7.64Usually ships in 7-10 business days
91WD-E8536-00-00STOPPER, SHIFT BAR$0.75$0.68Usually ships in 7-10 business days
101WD-E8562-00-00PLATE, STOPPER 2$2.35$2.12Usually ships in 7-10 business days
1191317-06012-00

(replaces part #
90110-06182-00)

BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
