2026 Yamaha MT-07 Shift Shaft OEM Parts Diagram

Submodel MT07 - MT07TCL - 2026

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT SHAFT

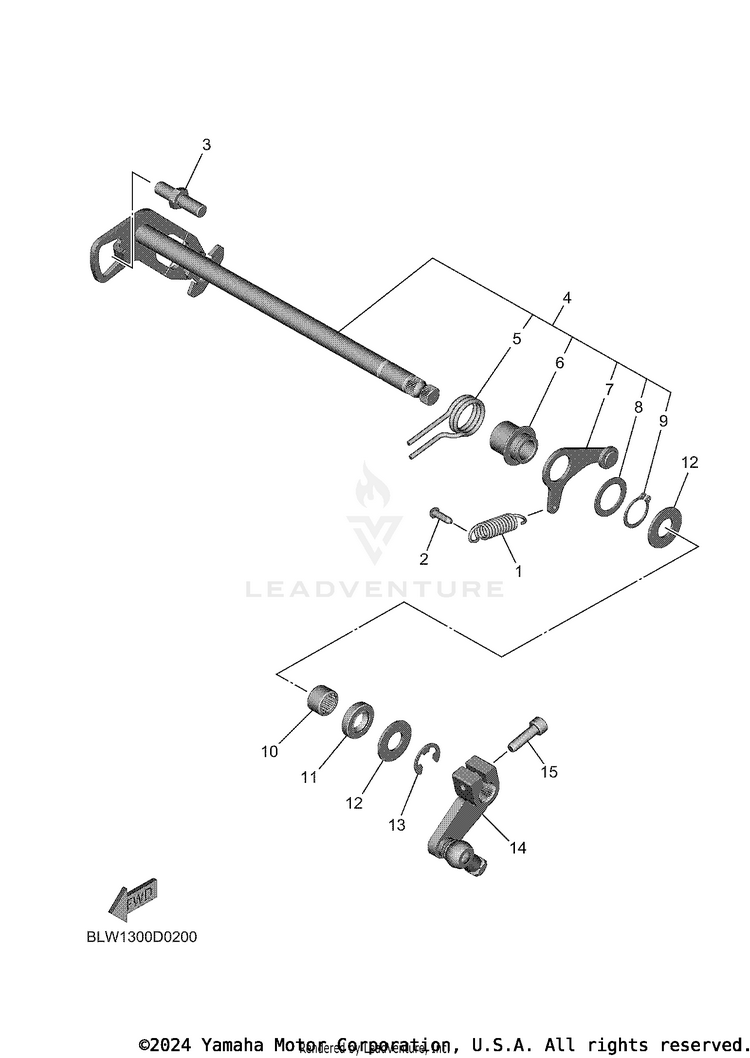

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
190506-18021-00SPRING, TENSION$9.49$8.54Usually ships in 7-10 business days
2132-16346-00-00HOOK, SPRING$10.99$8.578 In-Stock
35VK-18127-00-00

(replaces part #
1D7-18127-00-00)

STOPPER, SCREW$15.49$12.70Usually ships in 7-10 business days
41WS-18101-00-00SHIFT SHAFT ASSY$222.99$173.93Usually ships in 7-10 business days
590508-29040-00SPRING, TORSION$14.49$11.88Usually ships in 7-10 business days
6B7N-18175-00-00

(replaces part #
2C0-18175-00-00)

SPACER$18.99$15.57Usually ships in 7-10 business days
71WS-18140-00-00STOPPER LEVER ASSY$13.49$11.06Usually ships in 7-10 business days
890201-177G4-00WASHER, PLATE$10.49$8.183 In-Stock
999009-17400-00CIRCLIP$5.49$4.2810+ In-Stock
1093317-11295-00BEARING$50.99$39.774 In-Stock
1193102-12106-00OIL SEAL (SD 12-22-5 HS)$12.49$9.7410+ In-Stock
1290201-12575-00WASHER, PLATE$9.49$7.4010+ In-Stock
1399002-10600-00CIRCLIP$9.49$7.403 In-Stock
14BLW-18112-00-00ARM, SHIFT$49.99$40.99Usually ships in 7-10 business days
1591317-06020-00BOLT, HEX. SOCKET HEAD$2.75$2.3610+ In-Stock
