2026 Yamaha TENERE 700 World Raid Front Master Cylinder OEM Parts Diagram

Submodel TENERE 700 WORLD RAI - XTZ7WRTCW - 2026

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

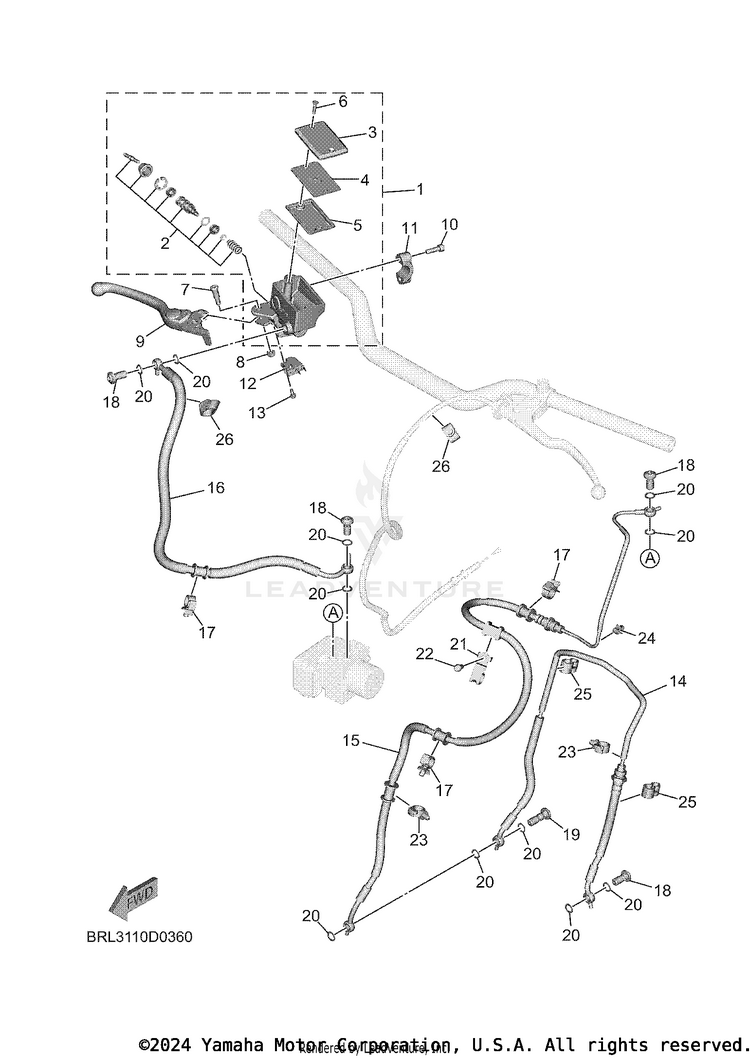

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12B0-2580A-00-00MASTER CYLINDER SUB$161.99$126.35
22D1-25807-00-00CYLINDER KIT, MASTER$75.99$59.274 In-Stock
35VS-25852-00-00CAP, RESERVOIR$30.99$25.41Usually ships in 7-10 business days
45VS-25855-00-00BUSH, DIAPHRAGM$17.99$14.75Usually ships in 7-10 business days
520S-25854-00-00DIAPHRAGM, RESERVOIR$31.99$26.23Usually ships in 7-10 business days
65VS-2589H-00-00SCREW$4.45$3.834 In-Stock
75VS-2589F-00-00BOLT, LEVER$15.49$12.082 In-Stock
895617-06100-00NUT, U$2.90$2.4910+ In-Stock
9BNW-83922-10-00LEVER 2$95.99$74.871 In-Stock
105VS-26332-00-00BOLT$4.95$4.264 In-Stock
115VS-25867-00-00BRACKET, MASTER CYLINDER$39.99$32.79Usually ships in 7-10 business days
12BXD-83980-00-00FRONT STOP SWITCH ASSY$119.99$93.59Usually ships in 7-10 business days
1397602-04214-00SCREW, PAN HEAD WITH WASHER$6.49$5.84Usually ships in 7-10 business days
14BXD-F5872-00-00HOSE, BRAKE 1$99.99$83.17Usually ships in 7-10 business days
15BXD-F5873-00-00HOSE, BRAKE 2$99.99$82.53Usually ships in 7-10 business days
16BXD-F5874-00-00HOSE, BRAKE 3$69.99$56.12Usually ships in 7-10 business days
1790464-14013-00CLAMP$3.85$3.319 In-Stock
1890401-10172-00BOLT, UNION$6.49$5.0610+ In-Stock
1990401-10042-00BOLT, UNION$18.49$15.163 In-Stock
2090430-10005-00GASKET$9.49$7.4010+ In-Stock
21BW3-25876-10-00HOLDER, BRAKE HOSE 2$10.49$8.60Usually ships in 7-10 business days
2292017-06014-00BOLT, BUTTON HEAD$4.60$3.966 In-Stock
2390464-18002-00CLAMP$9.49$7.409 In-Stock
2490464-08012-00CLAMP$3.65$3.147 In-Stock
2590464-48174-00CLAMP$3.80$3.276 In-Stock
2690464-10806-00CLAMP$5.99$5.39Usually ships in 7-10 business days
