2026 Yamaha Tracer 9 Handle Switch & Lever OEM Parts Diagram

Submodel TRACER 9 - MTT9TB - 2026

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLE SWITCH & LEVER

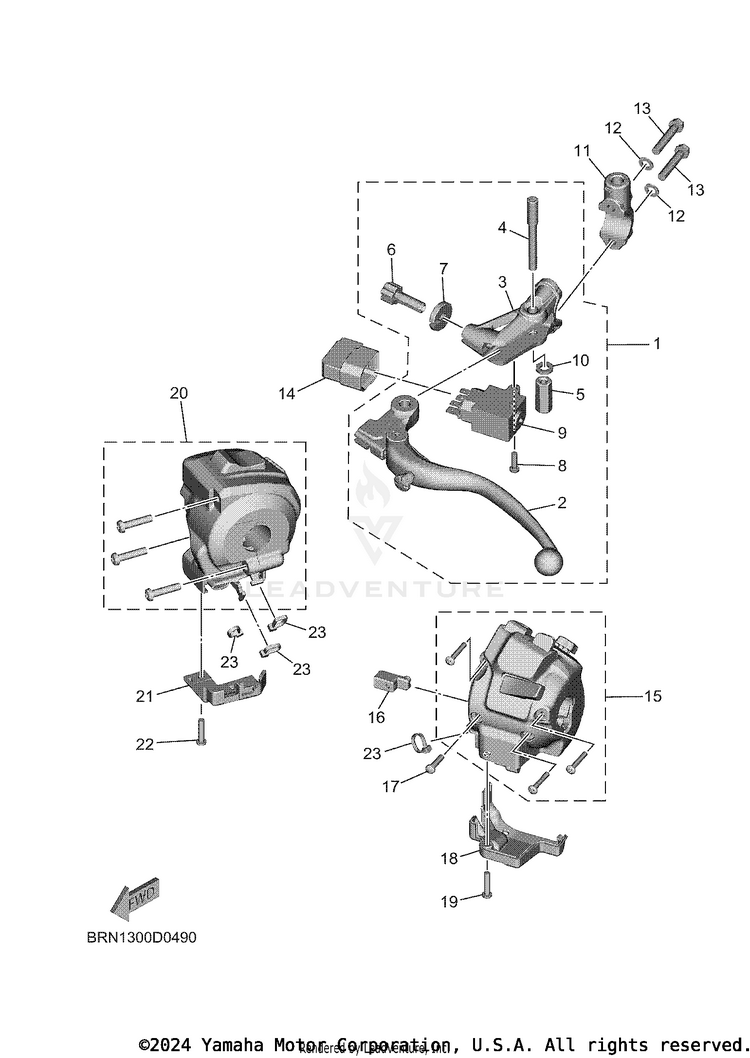

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BRN-82910-00-00LEVER HOLDER ASSY (LEFT)$159.99$126.20Usually ships in 7-10 business days
2BME-83922-00-00LEVER 2$53.99$42.11Usually ships in 7-10 business days
3BME-82911-00-00HOLDER, LEVER 1$27.99$22.95Usually ships in 7-10 business days
4BRN-2589F-00-00. .BOLT, LEVER$18.49$15.16Usually ships in 7-10 business days
590170-06249-00

(replaces part #
90170-06017-00)

NUT$10.65$8.73Usually ships in 7-10 business days
6BME-26382-00-00BOLT, AJUSTING$23.99$19.671 In-Stock
790179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
8BME-2632G-00-00SCREW$6.49$5.84Usually ships in 7-10 business days
9BME-82917-00-00SWITCH$75.99$59.27Usually ships in 7-10 business days
1090201-06105-00WASHER, PLATE$1.15$1.04Usually ships in 7-10 business days
1134B-25867-00-00BRACKET, MASTER CY$27.99$22.95Usually ships in 7-10 business days
1290201-06431-00

(replaces part #
90201-06037-00)

WASHER, PLATE$6.49$5.0610+ In-Stock
1395027-06030-00BOLT, FLANGE$4.30$3.87Usually ships in 7-10 business days
14BME-8291G-00-00COVER, SWITCH$12.49$10.24Usually ships in 7-10 business days
15BRN-8291L-00-00SW., HANDLE LH$408.99$338.21Usually ships in 7-10 business days
16BME-83525-00-00CLIP$10.49$8.60Usually ships in 7-10 business days
1798517-04016-00

(replaces part #
98507-04016-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
18BME-8246B-00-00COVER 1$13.99$11.47Usually ships in 7-10 business days
1998507-04018-00SCREW, PAN HEAD$2.35$2.029 In-Stock
20BME-8291R-00-00SW., HANDLE RH$384.99$317.98Usually ships in 7-10 business days
21BME-8249A-00-00COVER 2$10.49$8.60Usually ships in 7-10 business days
2298507-04018-00SCREW, PAN HEAD$2.35$2.029 In-Stock
2390465-10098-00CLAMP$2.80$2.417 In-Stock
