2026 Yamaha TTR 110E Crankshaft & Piston OEM Parts Diagram

Submodel TTR110E - TTR110ET - 2026

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKSHAFT & PISTON

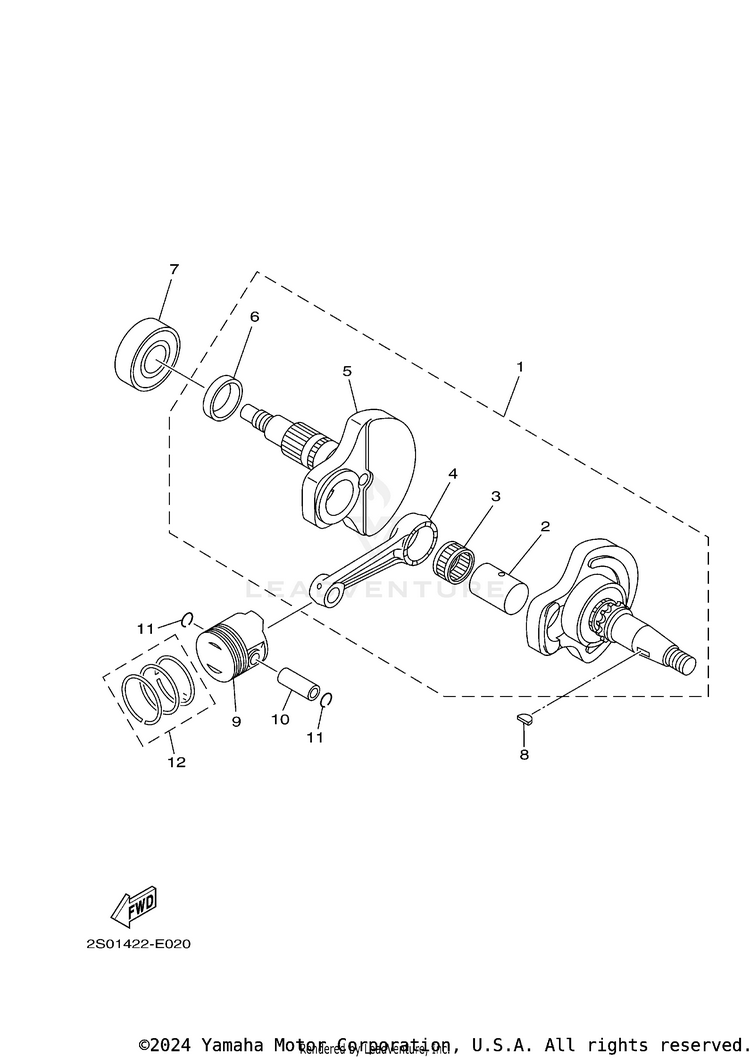

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15TP-WE140-30-00

(replaces part #
5TP-WE140-20-00)

CRANKSHAFT ASSY (2P23,3P91,17B$161.99$134.144 In-Stock
25LM-E1681-00-00PIN, CRANK 1$20.99$17.21Usually ships in 7-10 business days
393310-526X0-00

(replaces part #
93310-526Y6-00)

BEARING$65.99$51.47Usually ships in 7-10 business days
45TN-E1651-02-00ROD, CONNECTING$22.99$18.85Usually ships in 7-10 business days
55TP-E1422-00-00CRANK 2$45.99$37.71Usually ships in 7-10 business days
65ER-E1445-00-00SPACER$5.49$4.94Usually ships in 7-10 business days
793306-205YG-00BEARING$34.99$27.354 In-Stock
890280-03017-00KEY, WOODRUFF$8.49$6.8310+ In-Stock
93S0-E1636-00-00PISTON (0.50MM O/S) | AP$20.99$16.373 In-Stock
93S0-E1631-00-A0PISTON (STD)$17.49$13.644 In-Stock
93S0-E1638-00-00PISTON (1.00MM O/S) | AP$23.99$18.712 In-Stock
105LM-E1633-00-00PIN, PISTON$4.25$3.663 In-Stock
1193450-14088-00CIRCLIP$4.40$3.7810+ In-Stock
125TP-E1607-00-00

(replaces part #
5TP-E1607-20-00)

PISTON RING SET (1.0 | AP$13.99$10.912 In-Stock
125TP-E1603-20-00PISTON RING SET (STD)$63.99$50.568 In-Stock
125TP-E1605-00-00

(replaces part #
5TP-E1605-20-00)

PISTON RING SET (0.5 | AP$33.99$26.512 In-Stock
