2026 Yamaha TW200 Side Cover OEM Parts Diagram

Submodel TW200 - TW200T2C - 2026

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SIDE COVER

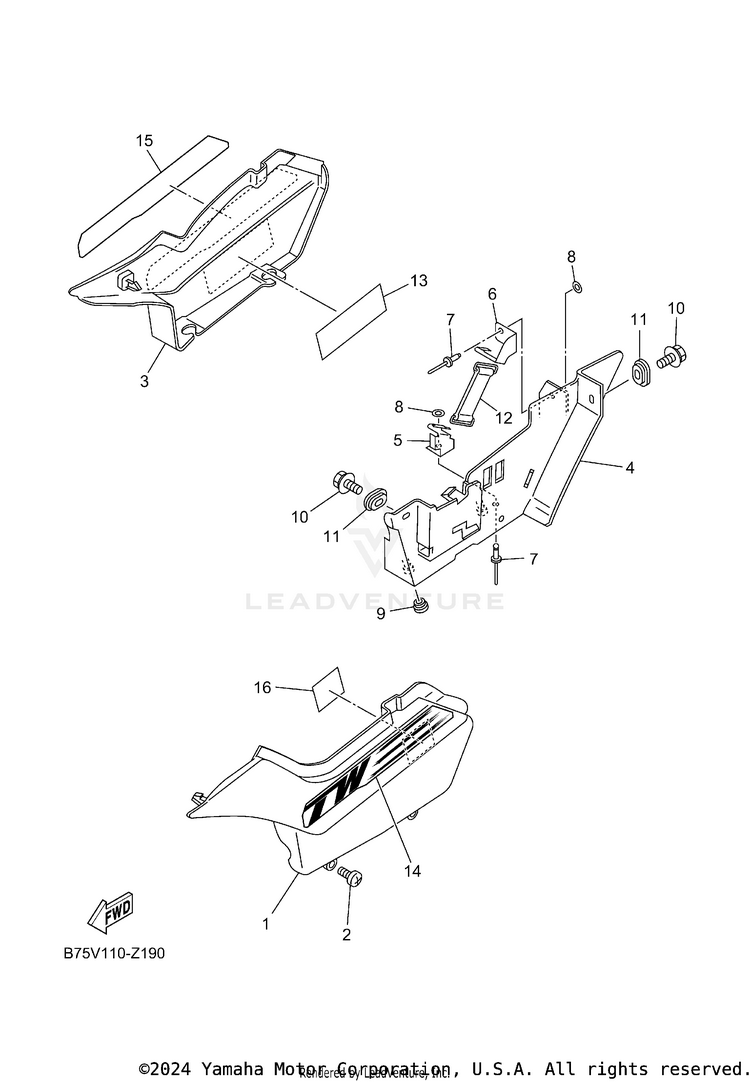

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12YG-21711-00-00COVER, SIDE 1 | NP$86.99$67.853 In-Stock
290154-05013-00SCREW, BINDING$6.49$5.0610+ In-Stock
32YG-21721-00-00COVER, SIDE 2 | NP$86.99$67.852 In-Stock
45EK-2177A-00-00BOX$41.99$34.43Usually ships in 7-10 business days
55EK-2175T-00-00BRACKET 1$17.49$14.34Usually ships in 7-10 business days
65EK-2175U-00-00BRACKET 2$16.49$13.52Usually ships in 7-10 business days
790267-40080-00

(replaces part #
90267-40075-00)

RIVET, BLIND$4.35$3.92Usually ships in 7-10 business days
890201-044H9-00

(replaces part #
90201-04018-00)

WASHER, PLATE$9.49$8.54Usually ships in 7-10 business days
990480-13014-00

(replaces part #
90480-13197-00)

GROMMET$9.49$7.4010+ In-Stock
1090119-06152-00

(replaces part #
90119-06056-00)

BOLT, WITH WASHER$3.55$3.0510+ In-Stock
1190480-01401-00

(replaces part #
90480-01141-00)

GROMMET (41Y)$9.49$7.4010+ In-Stock
12116-82131-00-00BAND, BATTERY$34.99$27.292 In-Stock
1310D-2815N-01-00LABEL, NOTICE BATTERY$12.99$10.65Usually ships in 7-10 business days
14B75-2173E-00-00GRAPHIC 1$16.49$13.52Usually ships in 7-10 business days
15B75-2173F-00-00GRAPHIC 2$18.49$15.16Usually ships in 7-10 business days
164YN-21686-01-00PLATE, ROUTING 2 | FOR CAL$4.75$4.28Usually ships in 7-10 business days
