2016 CFMOTO CFORCE 400 Electric System OEM Parts Diagram

Submodel CFORCE 400 CF400AU 2016 Crystal Orange

Shop Aftermarket Parts

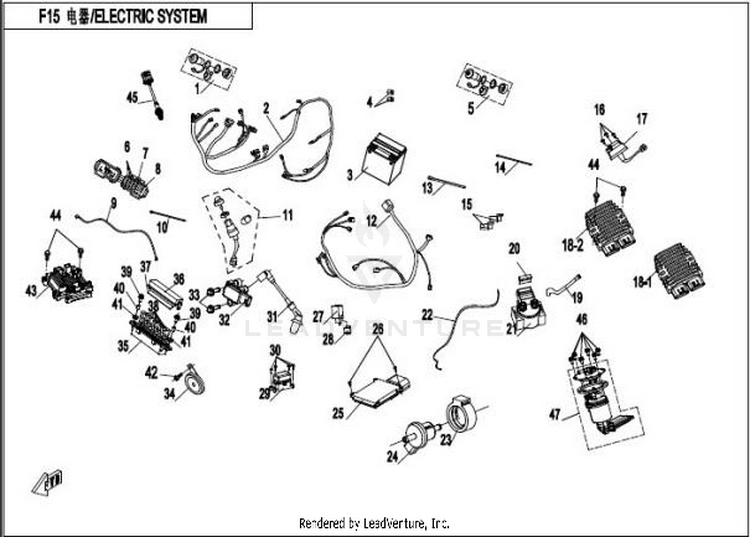

ELECTRIC SYSTEM

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
19GQ0-150500-10000OUTPUT SEAT,POWER
Usually ships in 7-10 business days
29GQ0-150100-00001MAIN WIRE HARNESS
Usually ships in 7-10 business days
331023004BATTERY, Dynavolt 12v30ah
2 In-Stock
4905B-150103PLUG, PDA
Usually ships in 7-10 business days
59GQ0-150600-10000

(replaces part #
9GQ0-150600)

OUTPUT SEAT, USB
Usually ships in 7-10 business days
6806A-151305FUSE (15A)
Usually ships in 7-10 business days
7806A-151302FUSE (10A)
Usually ships in 7-10 business days
88080-151301FUSE (5A)
Usually ships in 7-10 business days
99GQ0-150230-10000

(replaces part #
9GQ0-150230)

NEGATIVE WIRE,BATTERY
Usually ships in 7-10 business days
108010-150003TIE BAND
Usually ships in 7-10 business days
119GQ0-010100LOCK KIT
Usually ships in 7-10 business days
129GQ0-150300-00001AUXILIARY CABLE, EFI
Usually ships in 7-10 business days
139010-150005CABLE CLIP
Usually ships in 7-10 business days
149010-150004TIE BAND
Usually ships in 7-10 business days
156090-150500DIODE, STARTER
Usually ships in 7-10 business days
1630105-050030410SCREW M5x30
Usually ships in 7-10 business days
17401B-150200-2000POWER SOCKET,TRAILER
Usually ships in 7-10 business days
18-201AA-177000REGULATOR
Usually ships in 7-10 business days
199GQ0-150210-10000POSITIVE WIRE,BATTERY
Usually ships in 7-10 business days
207020-150111CHIP-TYPE FUSE(30A)
Usually ships in 7-10 business days
219CR6-150310STARTER RELAY
Usually ships in 7-10 business days
229GQ0-150220CABLE,STARTING MOTOR
Usually ships in 7-10 business days
23901F-000005IDLE VALVE RUBBER CAP
Usually ships in 7-10 business days
246KJB-1550A0

(replaces part #
018B-172000)

IDLE CONTROL VALVE ASSY
Usually ships in 7-10 business days
250GQ0-174000ECU
Usually ships in 7-10 business days
2630110-480160010TAPPING SCREW ST4.8X16
10+ In-Stock
278010-151000FLASHER
Usually ships in 7-10 business days
288010-150002CUSHION, FLASHER
Usually ships in 7-10 business days
299010-150720-4000CONTROL RELAY
Usually ships in 7-10 business days
3030006-060020870

(replaces part #
30006-060020840)

BOLT M6x20
Usually ships in 7-10 business days
310GRB-178000-10000HIGH-TENSION CABLE
Usually ships in 7-10 business days
32018B-178000IGNITION COIL
Usually ships in 7-10 business days
3330006-060025810BOLT
10+ In-Stock
345020-150700ELECTRIC HORN
Usually ships in 7-10 business days
357020-040411RELAY BOX
Usually ships in 7-10 business days
367020-040412-10000COVER,RELAY BOX
Usually ships in 7-10 business days
377020-040414RUBBER MAT,RELAY BOX COVER
Usually ships in 7-10 business days
389010-150350AUXILIARY RELAY
Usually ships in 7-10 business days
3930006-060016870BOLT M6x16
10+ In-Stock
406090-040303BUSHING
10+ In-Stock
410180-015003RUBBER COLLAR
Usually ships in 7-10 business days
4230006-080014810BOLT M8X14
10+ In-Stock
45018B-176000OXYGEN SENSOR
Usually ships in 7-10 business days
4630006-050014810BOLT M5X14
Usually ships in 7-10 business days
47901F-150900-10000FUEL PUMP
Usually ships in 7-10 business days
