Assemblies

2016 CFMOTO CFORCE 400 Hydraulic Brake Assy OEM Parts Diagram

Submodel CFORCE 400 CF400AU 2016 Crystal Orange

Shop Aftermarket Parts

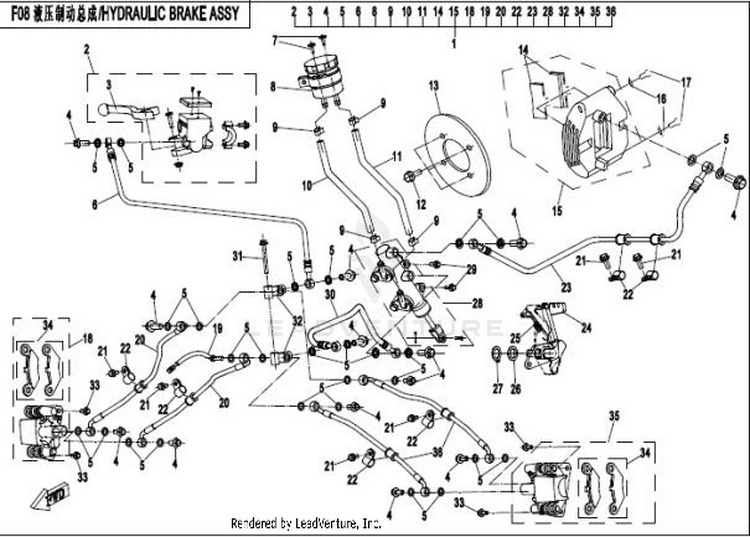

HYDRAULIC BRAKE ASSY

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	9GQ0-080100	HYDRAULIC BRAKE ASSY	Usually ships in 7-10 business days
2	9050-080600	HAND BRAKE MASTER CYLINDER	Usually ships in 7-10 business days
3	9010-080601	FRONT BRAKE LEVER	Usually ships in 7-10 business days
4	9010-080101-B000	BANJO BOLT	Usually ships in 7-10 business days
5	0010-060010	WASHER 10	10+ In-Stock
6	9GQ0-080130	FLUID HOSE, HAND BRAKE	Usually ships in 7-10 business days
7	30110-480160010	TAPPING SCREW ST4.8X16	10+ In-Stock
8	9GQ0-080110	FLUID RESERVOIR	Usually ships in 7-10 business days
9	9010-080405	CLAMP	2 In-Stock
10	9GQ0-080101	FLUID HOSE 1,RESERVOIR	Usually ships in 7-10 business days
11	9GQ0-080102	FLUID HOSE 2,RESERVOIR	Usually ships in 7-10 business days
12	7020-100001	BOLT	Usually ships in 7-10 business days
13	7020-080002	REAR BRAKE DISC	Usually ships in 7-10 business days
14	9010-0805A0	REAR BRAKE PAD COMP.	Usually ships in 7-10 business days
15	9010-080500	REAR BRAKE CALIPER	Usually ships in 7-10 business days
16	30300-100112 (replaces part # 30300-100142)	WASHER	8 In-Stock
17	30102-102020840	INNER HEX SCREW	Usually ships in 7-10 business days
18	7020-080800	RIGHT CALIPER,FRONT BRAKE	Usually ships in 7-10 business days
19	7020-080160	SWITCH,REAR BRAKE	Usually ships in 7-10 business days
20	9GQ0-080140-40000	FLUID HOSE, FRONT CALIPER, RH	Usually ships in 7-10 business days
21	30006-060016870	BOLT M6x16	10+ In-Stock
22	9010-080104	CIRCLIP	Usually ships in 7-10 business days
23	9GQ0-080150	FLUID HOSE, REAR BRAKE	Usually ships in 7-10 business days
24	9GQ0-080210-10000	PEDAL, BRAKE	Usually ships in 7-10 business days
25	9GQ0-080202	RETURN SPRING,BRAKE PEDAL	Usually ships in 7-10 business days
26	30306-140112	WASHER	Usually ships in 7-10 business days
27	30801-01405	RETAINER 14	Usually ships in 7-10 business days
28	9GQS-081800	MASTER CYLINDER	Usually ships in 7-10 business days
29	30006-080025810	BOLT M8X25	Usually ships in 7-10 business days
30	9GQ0-080120	FLUID HOSE, FRONT BRAKE	Usually ships in 7-10 business days
31	30006-060055810	BOLT M6x55	Usually ships in 7-10 business days
32	9010-080102	T-JOINT	Usually ships in 7-10 business days
33	30006-080016810	BOLT M8X16	10+ In-Stock
34	9010-0808A0	FRONT BRAKE PAD	Usually ships in 7-10 business days
35	7020-080700	LEFT CALIPER,FRONT BRAKE	Usually ships in 7-10 business days
36	9GQ0-080160-40000	FLUID HOSE, FRONT CALIPER, LH	Usually ships in 7-10 business days
37	9GQ0-0800A0-S0000	BRAKE LINE BRACKET KIT	Usually ships in 7-10 business days
