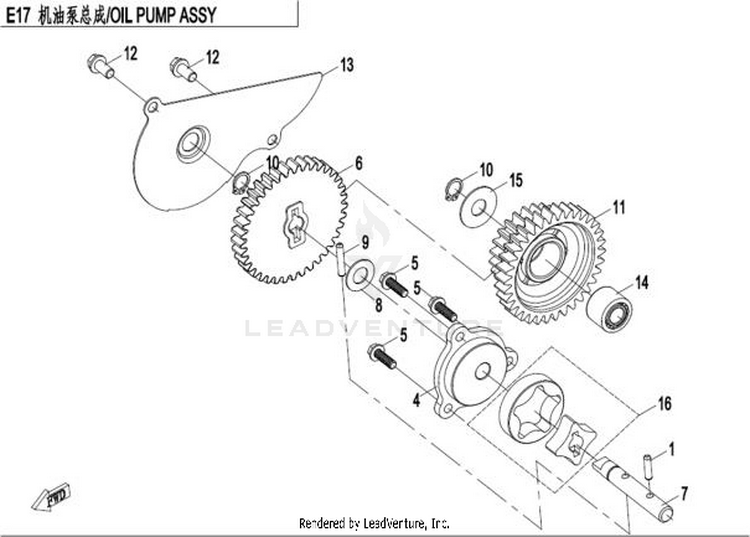

2016 CFMOTO CFORCE 400 Oil Pump Assy OEM Parts Diagram

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	30406-00400	NEEDLE PIN P 4Ã—15.8	Usually ships in 7-10 business days
4	0800-070003	COVER, OIL PUMP	Usually ships in 7-10 business days
5	0010-030002-00001	BOLT	10+ In-Stock
6	0GR0-070004	DRIVE GEAR,OIL PUMP	Usually ships in 7-10 business days
7	0GR0-070003	SHAFT,OIL PUMP	Usually ships in 7-10 business days
8	0800-011005	WASHER 10	Usually ships in 7-10 business days
9	30406-00402	NEEDLE PIN P 4Ã—21.8	Usually ships in 7-10 business days
10	30801-01005	RETAINER 10	Usually ships in 7-10 business days
11	0GR0-070005	DUAL GEAR, OILPUMP	Usually ships in 7-10 business days
12	0010-021019-0010	BOLT M6x12	10+ In-Stock
13	0GR0-070006	OIL GUARD	Usually ships in 7-10 business days
14	0GR0-070100	NEEDLE BEARING, HK10Ã—22Ã—16	Usually ships in 7-10 business days
15	0A80-050004	WASHER	Usually ships in 7-10 business days
16	0GR0-0700A0	ROTOR ASSY, OIL PUMP	Usually ships in 7-10 business days
