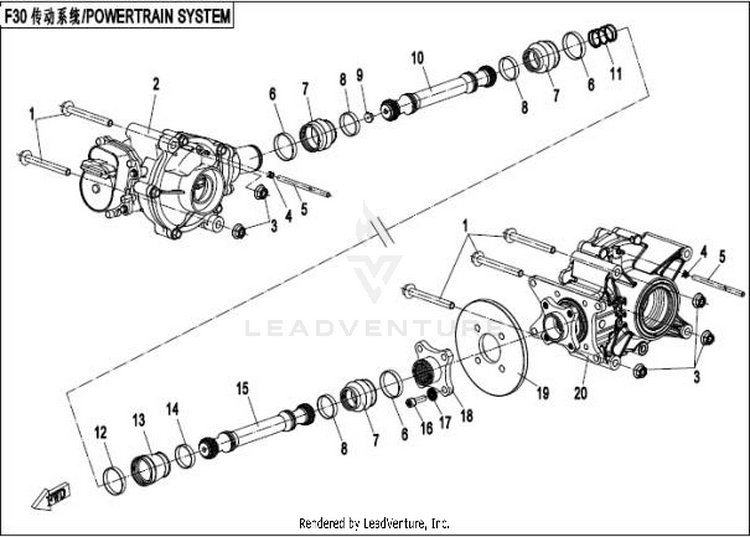

2016 CFMOTO CFORCE 400 Powertrain System OEM Parts Diagram

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	30006-102110110	BOLT	Usually ships in 7-10 business days
2	Q830-310000-10002 (replaces part # Q830-310000-10001)	FRONT DIFFERENTIAL	Usually ships in 7-10 business days
3	30204-102810	NUT M10x1.25	10+ In-Stock
4	30601-108010	CLAMP A8	Usually ships in 7-10 business days
5	9010-310001	BREATHER HOSE,FRONT DIFFERENTIAL	Usually ships in 7-10 business days
6	9CR6-300202	BIG RING	Usually ships in 7-10 business days
7	9CR6-300203-10000	DUST BOOT,FRONT DRIVE SHAFT	Usually ships in 7-10 business days
8	9CR6-300204	SMALL RING	Usually ships in 7-10 business days
9	7000-300105	DAMPER BLOCK	Usually ships in 7-10 business days
10	9GQ0-290101	CORE SHAFT,FRONT DRIVE	Usually ships in 7-10 business days
11	01A0-012009	SCREEN SPRING	Usually ships in 7-10 business days
12	9GQ0-290104	BIG CLAMP	Usually ships in 7-10 business days
13	9DQV-290101-6201 (replaces part # 9GQ0-290103-10000)	RUBBER BOOT	Usually ships in 7-10 business days
14	9GQ0-290102	RING	Usually ships in 7-10 business days
15	9GQ0-300101	REAR CORE SHAFT	Usually ships in 7-10 business days
16	9010-300001	BOLT M10Ã—1.25Ã—30	Usually ships in 7-10 business days
17	9010-300002	WASHER F10	Usually ships in 7-10 business days
18	9CR6-300206-10000	DRIVE SLEEVE,REAR AXLE	Usually ships in 7-10 business days
19	7020-080002	REAR BRAKE DISC	Usually ships in 7-10 business days
20	Q520-330000-00001	Q520 REAR DIFFERENTIAL	Usually ships in 7-10 business days
