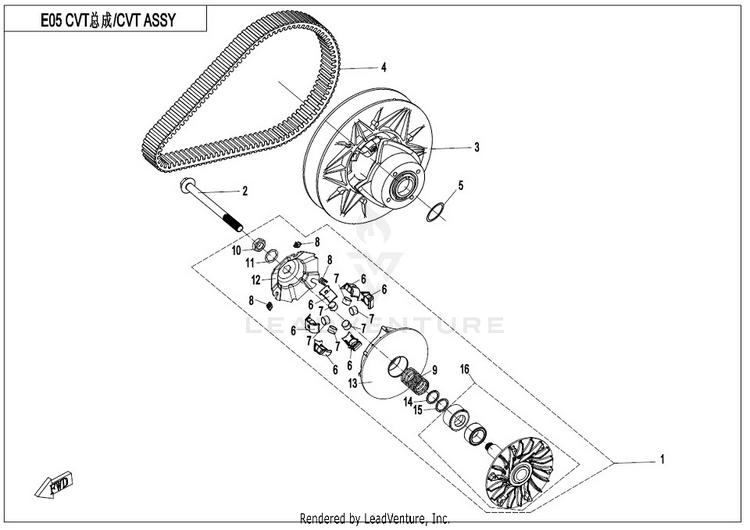

2017 CFMOTO CFORCE 400 Cvt Assembly - New OEM Parts Diagram

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	0GRB-051000-10030	DRIVE PULLEY ASSY	Usually ships in 7-10 business days
2	0JY0-050001-00001	BOLT, DRIVE PULLEY	Usually ships in 7-10 business days
3	0JYA-052000	DRIVEN CLUTCH	Usually ships in 7-10 business days
4	0180-055000-0004	DRIVE BELT	9 In-Stock
5	0GR0-050001-00002	ADJUST WASHER	Usually ships in 7-10 business days
6	0GR0-051005	NYLON PROTECTOR,WEIGHT	Usually ships in 7-10 business days
7	0GR0-051004-20000	PAWL ASSY.	Usually ships in 7-10 business days
8	0GR0-051006	NYLON SLIDER	Usually ships in 7-10 business days
9	0GR0-051003-20000	SPRING,DRIVE PULLEY	Usually ships in 7-10 business days
10	0GR0-051008-00010	NUT, DRIVE PULLEY LH \| RIGHT HAND	Usually ships in 7-10 business days
11	0GR0-051007	HEXAGONAL BORE WASHER	Usually ships in 7-10 business days
12	0GR0-051002-00001	RAMP PLATE	Usually ships in 7-10 business days
13	0JYA-051100	OUTER SHEAVE	Usually ships in 7-10 business days
14	0GR0-051011	STEEL WASHER	Usually ships in 7-10 business days
15	0GR0-051009-10000	NYLON WASHER	Usually ships in 7-10 business days
16	0GR0-051200-10011 (replaces part # 0GR0-051200-10010)	PRIMARY TIGHT PULLEY ASSY \| LH THREAD	Usually ships in 7-10 business days
45566	0GR0-051008-00010	NUT, DRIVE PULLEY LH \| LEFT HAND	Usually ships in 7-10 business days
