2017 CFMOTO CFORCE 400 Transmission Ii OEM Parts Diagram

Submodel CFORCE 400 CF400AU 2017 True Timber Camo

Shop Aftermarket Parts

TO VIEW CFMOTO OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

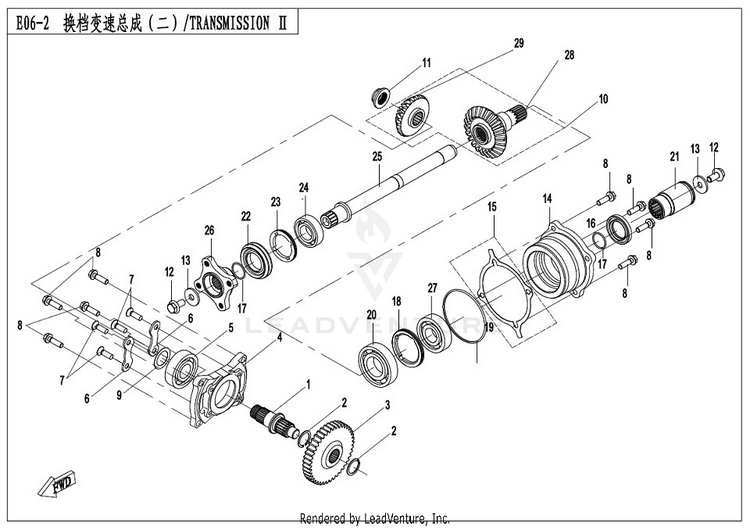

TRANSMISSION II

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
10180-062101DRIVE BEVEL GEAR SHAFT
Usually ships in 7-10 business days
20180-061007-0050RETAINER 25
Usually ships in 7-10 business days
30180-062102-00001OUTPUT DRIVEN GEAR
Usually ships in 7-10 business days
40180-062103-10000BEARING SEAT,DRIVE BEVEL GEAR
Usually ships in 7-10 business days
530499-02501BALL BEARING 6305
Usually ships in 7-10 business days
60180-062104-0010LIMITATOR, BEARING
Usually ships in 7-10 business days
730124-080025810SCREW M8×25
Usually ships in 7-10 business days
80JYA-062104

(replaces part #
0110-060011-0030)

BOLT
Usually ships in 7-10 business days
90180-062105-0001ADJUST SHIM | t=0.2
Usually ships in 7-10 business days
90180-062105ADJUST SHIM, DRIVE BEVEL GEAR | t=0.15
Usually ships in 7-10 business days
90180-062105-0002ADJUST SHIM | t=0.25
Usually ships in 7-10 business days
100GR0-0622A0DRIVE&DRIVENBEVELGEARCOMP
Usually ships in 7-10 business days
110180-062107-00001LOCK NUT, BEVEL GEAR
Usually ships in 7-10 business days
120GR0-062203BOLTM10×1.25×20
Usually ships in 7-10 business days
130GR0-062204WASHER10×27.5×4
Usually ships in 7-10 business days
140800-062202-10002

(replaces part #
0800-062202-10001)

DRIVEN BEVEL GEAR BEARING HOUSING
Usually ships in 7-10 business days
150800-062203ADJUST SHIM, DRIVEN BEVEL GEAR | t=0.1
Usually ships in 7-10 business days
150800-062203-0003SHIM, DRIVEN BEVEL GEAR | t=0.4
Usually ships in 7-10 business days
150800-062203-0001SHIM, DRIVEN BEVEL GEAR | t=0.2
Usually ships in 7-10 business days
150800-062203-0004SHIM, DRIVEN BEVEL GEAR | t=0.5
Usually ships in 7-10 business days
150800-062203-0002SHIM, DRIVEN BEVEL GEAR | t=0.3
Usually ships in 7-10 business days
160800-062204OIL SEAL 35×50×7
6 In-Stock
170800-062205O-RING 25×2
5 In-Stock
180800-062206STOPPER NUT, BEARING
Usually ships in 7-10 business days
190180-062205O-RING 88×2.5
Usually ships in 7-10 business days
2030400-03500BALL BEARING 6207c3
Usually ships in 7-10 business days
219CR6-300201-10000DRIVE SLEEVE, ENGINE
Usually ships in 7-10 business days
220180-331007OIL SEAL 35X61X9
Usually ships in 7-10 business days
230180-060008RETAINER, BEARING
Usually ships in 7-10 business days
2430400-02501BALL BEARING 6025
Usually ships in 7-10 business days
2430400-02501?BALL BEARING 6025
Usually ships in 7-10 business days
250GR0-062301-10001FRONT OUTPUT SHAFT ASSY
Usually ships in 7-10 business days
260GR0-060003COUPLER
Usually ships in 7-10 business days
2730400-02502BEARING,BALL
Usually ships in 7-10 business days
290180-0622A0

(replaces part #
0180-062106)

BEVEL GEAR COMP.
Usually ships in 7-10 business days
