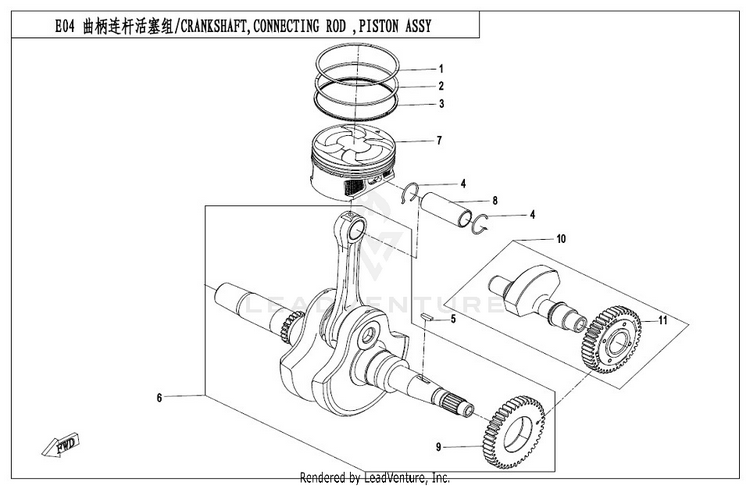

CRANKSHAFT, CONNECTING ROD, PISTON ASSY

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
10800-040003PISTON RING, TOP
Not Shipping
20800-040004PISTON RING, 2ND
Not Shipping
30800-043000OIL RING, PISTON
Not Shipping
40800-040005CIRCLIP, PISTON PIN
Usually ships in 7-10 business days
50180-040007WOODRUFF KEY
Usually ships in 7-10 business days
60GR0-041000-10014

(replaces part #
0GR0-041000-10013)

CRANKSHAFT ASSY., MARK A | MARK A
Usually ships in 7-10 business days
70800-040001-20012PISTON, Mark 1 | MARK 1
Usually ships in 7-10 business days
80800-040002-00001PISTON PIN
Usually ships in 7-10 business days
90700-041101-10010DRIVE GEAR, BALANCER | MARK A
Usually ships in 7-10 business days
100GR0-160000-00011BALANCER SHAFT, MARK A MATCHED WITH MARK B CON ROD | MARK A
Usually ships in 7-10 business days
110700-161000-00020

(replaces part #
0700-161000-00010)

GEAR, BALANCE SHAFT, MARK B | MARK A
Usually ships in 7-10 business days
120800-0400A0PISTON RING SET | NOT SHOWN
Usually ships in 7-10 business days
458090GR0-041000-00020CRANKSHAFT ASSY., MARK B | MARK B
Usually ships in 7-10 business days
458390800-040001-20022

(replaces part #
0800-040001-20020)

PISTON, Mark 2 | MARK 2
Usually ships in 7-10 business days
459010700-041101-00020DRIVE GEAR BALANCE SHAFT | MARK B
Usually ships in 7-10 business days
459310GR0-160000-00021BLANCER SHAFT ASSY, Mark B | MARK B
Usually ships in 7-10 business days
459620700-161000-00020GEAR, BALANCE SHAFT, MARK B | MARK B
Usually ships in 7-10 business days
