2017 CFMOTO CFORCE 500 S Front Differential OEM Parts Diagram

Submodel CF500AU-7S CFORCE 500 S 2017 Red

Shop Aftermarket Parts

TO VIEW CFMOTO OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

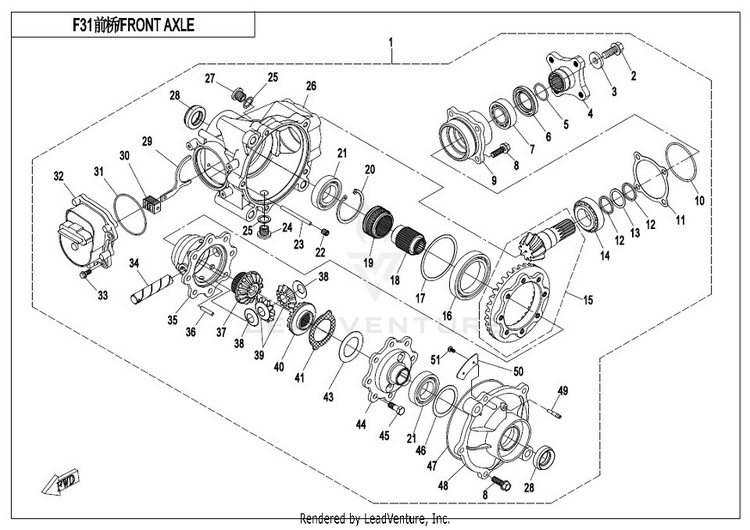

FRONT DIFFERENTIAL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1Q830-310000-30002FRONT GEAR CASE ASSY
Usually ships in 7-10 business days
20GR0-062203BOLTM10×1.25×20
Usually ships in 7-10 business days
30GR0-062204WASHER10×27.5×4
Usually ships in 7-10 business days
4Q850-331002COUPLER
Usually ships in 7-10 business days
50800-062205O-RING 25×2
5 In-Stock
60800-062204OIL SEAL 35×50×7
6 In-Stock
730409-02500BEARING
Usually ships in 7-10 business days
830008-080025810BOLT M8×25
Usually ships in 7-10 business days
9Q830-311002-00001

(replaces part #
Q830-311002)

BEARING SEAT
Usually ships in 7-10 business days
10Q830-310006-10000O-RING
Usually ships in 7-10 business days
11Q830-310023-00100ADJUSTING WASHER T=0.20 | t=0.20
5 In-Stock
11Q830-310023-00200ADJUSTING WASHER T=0.30 | t=0.30
5 In-Stock
12Q830-311003-01200ADJUSTING WASHER 32x25.4 T=2.80 | t=2.80
Usually ships in 7-10 business days
12Q830-311003-00500ADJUSTING WASHER 32x25.4 T=2.42 | t=2.42
Usually ships in 7-10 business days
12Q830-311003-01400ADJUSTING WASHER 32x25.4 T=3.00 | t=3.00
Usually ships in 7-10 business days
12Q830-311003-00801

(replaces part #
Q830-311003-00800)

ADJUSTING WASHER 32×25.4 t=2.48 | t=2.48
Usually ships in 7-10 business days
12Q830-311003-00601

(replaces part #
Q830-311003-00600)

ADJUSTING WASHER 32×25.4 t=2.44 | t=2.44
Usually ships in 7-10 business days
12Q830-311003-01000ADJUSTING WASHER 32x25.4 T=2.60 | t=2.60
Usually ships in 7-10 business days
12Q830-311003-00300ADJUSTING WASHER 32x25.4 T=2.30 | t=2.30
Usually ships in 7-10 business days
12Q830-311003-00700ADJUSTING WASHER 32x25.4 T=2.46 | t=2.46
Usually ships in 7-10 business days
12Q830-311003-00400ADJUSTING WASHER 32x25.4 T=2.40 | t=2.40
Usually ships in 7-10 business days
12Q830-311003-01300ADJUSTING WASHER 32x25.4 T=2.90 | t=2.90
4 In-Stock
12Q830-311003-00901

(replaces part #
Q830-311003-00900)

ADJUSTING WASHER 32×25.4 t=2.50 | t=2.50
Usually ships in 7-10 business days
12Q830-311003-00100ADJUSTING WASHER 32x25.4 T=2.10 | t=2.10
5 In-Stock
12Q830-311003-00200ADJUSTING WASHER 32x25.4 T=2.20 | t=2.20
Usually ships in 7-10 business days
12Q830-311003-01100ADJUSTING WASHER 32x25.4 T=2.70 | t=2.70
Usually ships in 7-10 business days
130130-063002-0002ADJUST SHIM, BEVEL GEAR | ADJUST GASKET, BEVEL GEAR0.3
Usually ships in 7-10 business days
130130-063002-0001ADJUSTING SHIM | ADJUST GASKET, BEVEL GEAR0.25
Usually ships in 7-10 business days
130130-063002ADJUSTING SHIM | ADJUST GASKET, BEVEL GEAR0.1
Usually ships in 7-10 business days
130130-063002-0004ADJUSTING SHIM | ADJUST GASKET, BEVEL GEAR0.6
Usually ships in 7-10 business days
130130-063002-0005ADJUSTING SHIM | ADJUST GASKET, BEVEL GEAR0.75
Usually ships in 7-10 business days
130130-063002-0003ADJUSTING SHIM | ADJUST GASKET, BEVEL GEAR0.5
Usually ships in 7-10 business days
130130-063002-0006ADJUSTING SHIM | ADJUST GASKET, BEVEL GEAR0.8
Usually ships in 7-10 business days
1430409-03000BEARING
Usually ships in 7-10 business days
15Q830-3100B0RING AND PINION, GEAR SET
Usually ships in 7-10 business days
1630400-05500BEARING
Usually ships in 7-10 business days
17Q830-310015-00100ADJUST SHIM 79.5X68 | t=0.10
Usually ships in 7-10 business days
17Q830-310015-00300ADJUST SHIM 79.5X68 | t=0.30
Usually ships in 7-10 business days
17Q830-310015-00500ADJUST SHIM 79.5X68 | t=0.50
Usually ships in 7-10 business days
17Q830-310015-00600ADJUST SHIM 79.5X68 | t=1.00
Usually ships in 7-10 business days
17Q830-310015-00200ADJUST SHIM 79.5X68 | t=0.20
Usually ships in 7-10 business days
17Q830-310015-00400ADJUST SHIM 79.5X68 | t=0.40
Usually ships in 7-10 business days
18Q830-310014DRIVE CLUTCH COLLAR
Usually ships in 7-10 business days
19Q830-310013SPLINE BUSH
Usually ships in 7-10 business days
2030800-05505RETAINER 55
10+ In-Stock
2130400-03001BEARING
Usually ships in 7-10 business days
2230130-080010810

(replaces part #
30130-080010820)

SCREW
Usually ships in 7-10 business days
23Q830-310003PIN SHAFT
Usually ships in 7-10 business days
240180-332100OIL DRAIN BOLT, MAGNETIC(M14X1.25X12) | MAGNETIC
10+ In-Stock
250180-011006WASHER 14
10+ In-Stock
26Q830-310007-20000

(replaces part #
Q830-310007-10000)

FRONT GEAR CASE
Usually ships in 7-10 business days
270180-021008-00001BOLT M14×1.25×12
6 In-Stock
280180-311001OIL SEAL 24X38X8
4 In-Stock
29Q830-310005-10000FORK
Usually ships in 7-10 business days
30Q830-310004RACK
Usually ships in 7-10 business days
31Q830-310012-10000O-RING 67.5x2
Usually ships in 7-10 business days
32Q830-314000GEAR MOTOR
Usually ships in 7-10 business days
330010-023008-00001

(replaces part #
0010-023008-0010)

BOLT
10+ In-Stock
340180-313002-10000GEAR SHAFT(CENTER),DIFF
Usually ships in 7-10 business days
35Q830-313003-10000

(replaces part #
Q830-313003)

FRONT CARRIER HOUSING
Usually ships in 7-10 business days
3630906-0503000PIN
Usually ships in 7-10 business days
37Q830-313004GEAR,CV SHAFT
Usually ships in 7-10 business days
380181-313011WEARING RING
Usually ships in 7-10 business days
390180-313003-00004BEVEL GEAR, DIFFERENTIAL
Usually ships in 7-10 business days
400180-313006-00001DRIVEN GEAR,DIFFERENTIAL
Usually ships in 7-10 business days
410180-313009-0010SHIM
Usually ships in 7-10 business days
430180-313010-0001ADJUST SHIM 57X40X0.2 | ADJUST GASKET57×40×0.2
Usually ships in 7-10 business days
430180-313010-0004ADJUST SHIM 57X40X0.5 | ADJUST GASKET 57×40×0.5
Usually ships in 7-10 business days
430180-313010-0002ADJUST SHIM 57X40X0.3 | ADJUST GASKET 57×40×0.3
Usually ships in 7-10 business days
430180-313010-0005ADJUST SHIM 57X40X1.0 | ADJUST GASKET57×40×1.0
Usually ships in 7-10 business days
430180-313010-0003ADJUST SHIM 57X40X0.4 | ADJUST GASKET57×40×0.4
Usually ships in 7-10 business days
430180-313010ADJUST SHIM 57X40X0.1 | ADJUSTING WASHER 57×40×0.1
Usually ships in 7-10 business days
44Q830-313001-00001

(replaces part #
Q830-313001)

DIFFERENTIAL END CAP
Usually ships in 7-10 business days
459010-290001BOLT M8×1×22
Usually ships in 7-10 business days
46Q830-310009-00300ADJUST SHIM 54.5X43 | t=0.30
Usually ships in 7-10 business days
46Q830-310009-00100ADJUST SHIM 54.5X43 | t=0.10
Usually ships in 7-10 business days
46Q830-310009-00500ADJUST SHIM 54.5X43 | t=0.50
Usually ships in 7-10 business days
46Q830-310009-00200ADJUST SHIM 54.5X43 | t=0.20
Usually ships in 7-10 business days
46Q830-310009-00400ADJUST SHIM 54.5X43 | t=0.40
Usually ships in 7-10 business days
46Q830-310009-00600ADJUST SHIM 54.5X43 | t=1.00
Usually ships in 7-10 business days
47Q830-310011O-RING
Usually ships in 7-10 business days
48Q830-310008-00001

(replaces part #
Q830-310008)

CASE COVER, FRONT AXLE
Usually ships in 7-10 business days
490180-311004-0020JOINT , BREATHER HOSE
Usually ships in 7-10 business days
50Q830-310022OIL GUARD
Usually ships in 7-10 business days
5130105-040008410CROSS SCREW, M4X8
Usually ships in 7-10 business days
