2017 CFMOTO CFORCE 500 S Frame Assy OEM Parts Diagram

Submodel CF500AU-7S CFORCE 500 S 2017 Ferrari Red

Shop Aftermarket Parts

TO VIEW CFMOTO OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

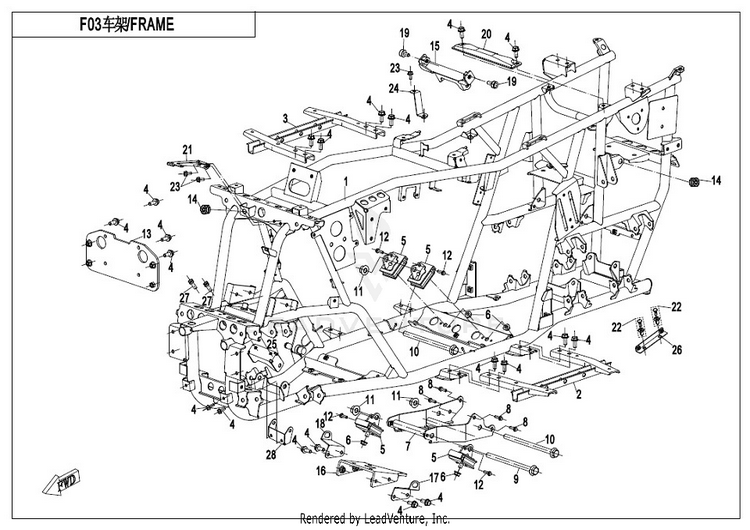

FRAME ASSY

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
19GQ0-031000-80000

(replaces part #
9GQ0-031000-20000)

FRAME ASSY. | SPECIAL ORDER ALLOW 10-12 WEEKS
Usually ships in 7-10 business days
29GQ0-039100RUNNING BOARD BRACE, LH
Usually ships in 7-10 business days
39GQ0-039200FOOTREST BOARD,RH
Usually ships in 7-10 business days
430006-080020810BOLT M8×20
10+ In-Stock
5401B-000200-10000ENGINE MOUNT
Usually ships in 7-10 business days
630204-102810NUT M10x1.25
10+ In-Stock
79CR6-001100-20000FRONT BRACKET, ENGINE
Usually ships in 7-10 business days
830006-102020810BOLT M10×1.25×20
10+ In-Stock
930006-122170810BOLT
Usually ships in 7-10 business days
1030006-122180810BOLT
Usually ships in 7-10 business days
1130204-122810NUT M12×1.25
10+ In-Stock
1230102-060012810SCREW M6X12
Usually ships in 7-10 business days
139GQ0-030090INSTALLING BRACKET,WINCH
Usually ships in 7-10 business days
145020-031001RUBBER COLLAR
Usually ships in 7-10 business days
159GQ0-030070-10000UPPER LINK SEAT,REAR AXLE
Usually ships in 7-10 business days
169GQ0-030040-10000

(replaces part #
9GQ0-030040)

EPS MOUNTING PLATE
Usually ships in 7-10 business days
179GQ0-030004BRACKET,LH INNER FENDER
Usually ships in 7-10 business days
189GQ0-030005BRACKET,RH INNER FENDER
Usually ships in 7-10 business days
1930102-102020810SCREW M10×20
Usually ships in 7-10 business days
209GQ0-030010-10000

(replaces part #
9GQ0-030010)

FIXING BRACKET,SEAT
Usually ships in 7-10 business days
219GQ0-030020BRACKET,WINCH RELAY
Usually ships in 7-10 business days
229060-040310PUSH RIVET
10+ In-Stock
2330006-060012870BOLT M6x12
10+ In-Stock
249GQV-030080-1400BRACKET, AIR FILTER
Usually ships in 7-10 business days
259GQ0-030050-10000UPPER CONNECTING PLATE
Usually ships in 7-10 business days
269GQ0-030060MOUNTING PLATE,ECU
Usually ships in 7-10 business days
2730102-080020810SCREW M8x20
Usually ships in 7-10 business days
