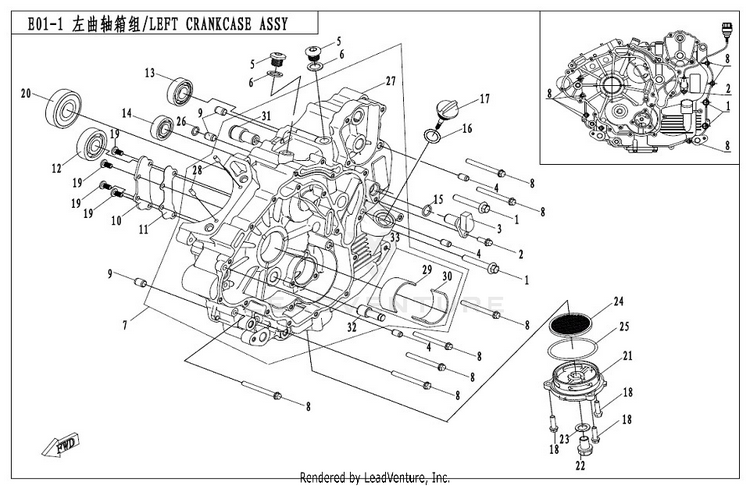

LEFT CRANKCASE ASSY

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
10040-012006-0010BOLT M8×50
Usually ships in 7-10 business days
20010-090005-0010BOLT M6×16
Usually ships in 7-10 business days
30GR0-011020SPEED SENSOR
Usually ships in 7-10 business days
40DM0-022201-10000

(replaces part #
0010-080008)

DOWEL PIN
Usually ships in 7-10 business days
50GR0-011003-00001

(replaces part #
0GR0-011003)

BOLT M14x1.5x12
Usually ships in 7-10 business days
60180-011006WASHER 14
10+ In-Stock
70GRB-011000LEFT CRANKCASE ASSY
Usually ships in 7-10 business days
80010-011017-0010BOLT M6X60
Usually ships in 7-10 business days
90010-021005DOWEL PIN f 10×14
10+ In-Stock
100GR0-011002OIL COVER PLATE
Usually ships in 7-10 business days
110GR0-011004OIL COVER PLATE GASKET
Usually ships in 7-10 business days
1230499-01700BEARING 6202
Usually ships in 7-10 business days
1330400-01704BEARING 6203
Usually ships in 7-10 business days
1430499-01500BEARING 6202
Usually ships in 7-10 business days
1501A0-013005O-RING 13x2
Usually ships in 7-10 business days
160110-013030O-RING 18×3.55
9 In-Stock
170GR0-011005DIPSTICK, ENGINE OIL
2 In-Stock
180JWV-011107-3000

(replaces part #
0010-023010-0010)

BOLT M6x20
Usually ships in 7-10 business days
1930105-060012410SCREW
Usually ships in 7-10 business days
2030400-02201ROLLING BEARING
Usually ships in 7-10 business days
210GR0-011001PLATE,OIL STRAINER
Usually ships in 7-10 business days
220110-013005-00001OIL DRAIN PLUG
9 In-Stock
230010-021014WASHER 12
10+ In-Stock
240GR0-011010OIL STRAINER
9 In-Stock
250800-014003O-RING 63×2.5
10+ In-Stock
2630502-010000NO-RING
Usually ships in 7-10 business days
270GR0-011101-10000CRANKCASE, LH | MARK A, RED BEARING
Usually ships in 7-10 business days
27-010GR0-011101-10020CRANKCASE LH, MARK B, BLUE BEARING | MARK B, BLUE BEARING
Usually ships in 7-10 business days
2830406-00500ROLLER PIN P 5×11.8
Usually ships in 7-10 business days
290800-011103-00011PLAIN BEARING 2, Red | RED(THIN)
Usually ships in 7-10 business days
290800-011103-00021

(replaces part #
0JWA-011103-00020)

PLAIN BEARING 2, Blue | BLUE(THICK)
Usually ships in 7-10 business days
300800-011102-00021PLAIN BEARING 1, Blue | BLUE(THICK)
Usually ships in 7-10 business days
300800-011102-00011PLAIN BEARING 1, Red | RED(THIN)
Usually ships in 7-10 business days
310GR0-011103INTERMEDIATE GEAR, REVERSE
Usually ships in 7-10 business days
320GR0-011102SHAFT,DUALGEAR,OILPUMP
Usually ships in 7-10 business days
330800-0111A0BEARING SLEEVE COMP. | RED(THIN)
Usually ships in 7-10 business days
33-010800-0111B0BEARING SLEEVE COMP. | BLUE BEARING
Usually ships in 7-10 business days
