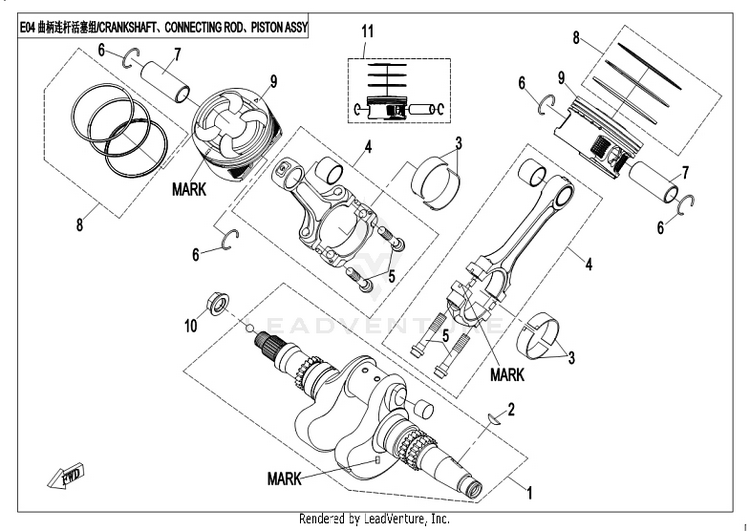

2018 CFMOTO UFORCE 800 Crankshaft&Conneting Rod& Piston Assy OEM Parts Diagram

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	0800-041000-10011	CRANKSHAFT ASSY. MARK A \| MARK 1	Usually ships in 7-10 business days
2	0180-040007	WOODRUFF KEY	Usually ships in 7-10 business days
3	0800-040006-00012	PLAIN BEARING, CONN.ROD, RED	Usually ships in 7-10 business days
4	0800-042000-00011	CONNECTING ROD ASSY, Mark 1 \| MARK 1	Usually ships in 7-10 business days
5	0800-042004	BOLT, CONNECTING ROD	Usually ships in 7-10 business days
6	0800-040005	CIRCLIP, PISTON PIN	Usually ships in 7-10 business days
7	0800-040002-00001	PISTON PIN	Usually ships in 7-10 business days
8	0800-0400A0	PISTON RING SET	Usually ships in 7-10 business days
9	0800-040001-20012	PISTON, Mark 1 \| MARK 1	Usually ships in 7-10 business days
10	0180-040001-00001	NUT M18X1.5, LH	Usually ships in 7-10 business days
11	0800-0400B0-0001	PISTON KIT, MARK 1 \| MARK 1	Usually ships in 7-10 business days
45658	0800-041000-10021	CRANKSHAFT \| MARK 2	Usually ships in 7-10 business days
45717	0800-040006-00022 (replaces part # 0800-040006-0002)	PLAIN BEARING, CONN. ROD, BLACK	Usually ships in 7-10 business days
45718	0800-040006-00032	PLAIN BEARING, CONNECTING ROD, Yellow	Usually ships in 7-10 business days
45748	0800-042000-00021 (replaces part # 0800-042000-0002)	CONNECTING ROD ASSY, Mark 2 \| MARK 2	Usually ships in 7-10 business days
45901	0800-040001-20022 (replaces part # 0800-040001-20020)	PISTON, Mark 2 \| MARK 2	Usually ships in 7-10 business days
45962	0800-0400B0-0002	PISTON KIT, MARK 2 \| MARK 2	Usually ships in 7-10 business days
