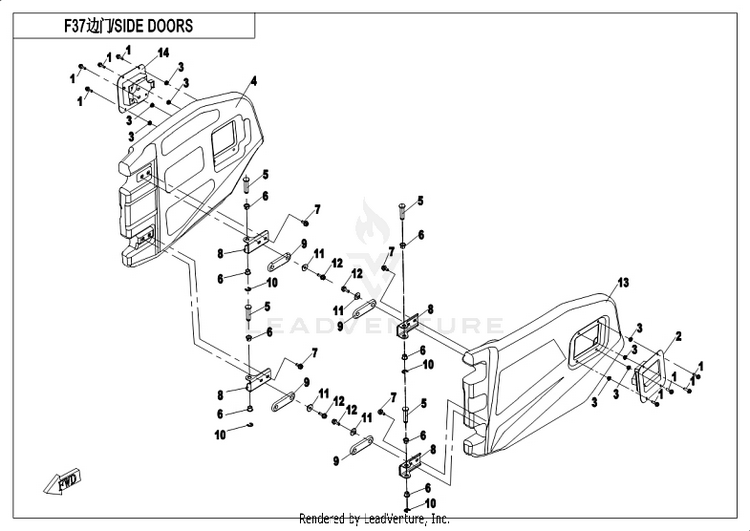

2018 CFMOTO UFORCE 800 Side Doors OEM Parts Diagram

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	30105-050020410	SCREW M5X20	Usually ships in 7-10 business days
2	7030-370120	DOOR LOCK,LH	Usually ships in 7-10 business days
3	30204-050810	NUT M5	5 In-Stock
4	7030-370210	SIDE DOOR,RH	Usually ships in 7-10 business days
5	9030-371101	ROTATION SHAFT	Usually ships in 7-10 business days
6	9030-370601	NYLON COLLAR	Usually ships in 7-10 business days
7	30006-060012870	BOLT M6x12	10+ In-Stock
8	9030-370501	ROTATE PLATE	Usually ships in 7-10 business days
9	9030-370801	RUBBER RETURN BLOCK	Usually ships in 7-10 business days
10	30802-00603 (replaces part # 30802-00804)	CIRCLIP 6	Usually ships in 7-10 business days
11	9010-160102	WASHER,HEADLIGHT	10+ In-Stock
12	30006-060016870	BOLT M6x16	10+ In-Stock
13	7030-370110	SIDE DOOR,LH	Usually ships in 7-10 business days
14	7030-370220	DOOR LOCK,RH	Usually ships in 7-10 business days
