2019 CFMOTO UFORCE 1000 Cylinder Head No.1 Assy. OEM Parts Diagram

Submodel CF1000UU UFORCE 1000 2019 Matte Titanium Grey

Shop Aftermarket Parts

TO VIEW CFMOTO OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

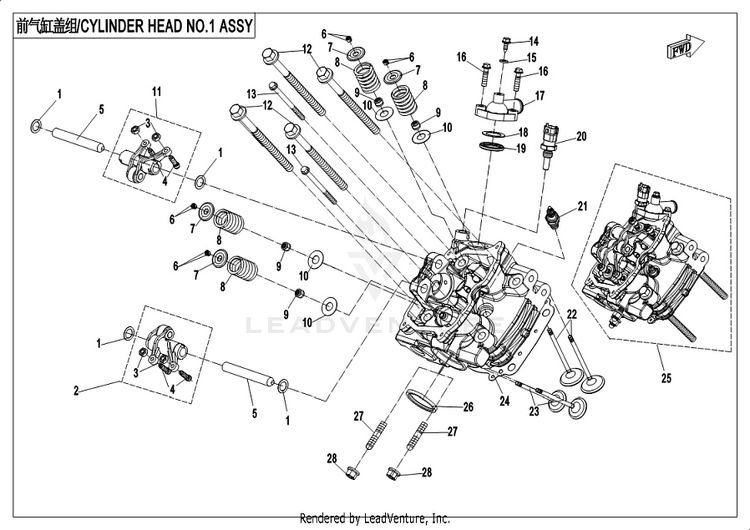

CYLINDER HEAD NO.1 ASSY.

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
10800-022002WASHER 12.3×18.5×0.5
8 In-Stock
20800-022600-20000ROCKER ARM ASSY. EXHAUST
Usually ships in 7-10 business days
30800-022506ADJUST NUT
Usually ships in 7-10 business days
40800-022510ADJUST SCREW
Usually ships in 7-10 business days
50800-022001SHAFT, ROCKER ARM
Usually ships in 7-10 business days
60800-022016LOCK CLIP, VALVE
Usually ships in 7-10 business days
70800-022007UPPER SEAT, VALVE
Usually ships in 7-10 business days
80800-022006-10001

(replaces part #
0800-022006-10000)

SPRING, VALVE
Usually ships in 7-10 business days
90010-022500-10000SEAL RING, VALVE STEM
10+ In-Stock
100800-022008LOWER SEAT, VALVE
Usually ships in 7-10 business days
110800-022500-20000ROCKER ARM ASSY. INTAKE
Usually ships in 7-10 business days
120JY0-022003-00001BOLT, CYLINDER HEAD
Usually ships in 7-10 business days
130060-013021-00002

(replaces part #
0060-013021-00001)

BOLT M6x85
Usually ships in 7-10 business days
1430132-480130030TAPPING SCREW ST4.8×13
10+ In-Stock
150800-022011-00001

(replaces part #
0800-022011)

WASHER 5.3×11×15
6 In-Stock
160010-021017-0010BOLT M6×25
10+ In-Stock
170800-022013-10000THERMOSTAT CAP
Usually ships in 7-10 business days
180800-026002WASHER 20.5×30×0.8
Usually ships in 7-10 business days
190010-022802SEAL RING
4 In-Stock
20018B-022810WATER TEMPERATURE SENSOR
Usually ships in 7-10 business days
210800-022800SPARK PLUG
6 In-Stock
220800-022004VALVE, INTAKE
Usually ships in 7-10 business days
230800-022005VALVE, EXHAUST
Usually ships in 7-10 business days
240800-022200-00002GASKET, CYLINDER HEAD
3 In-Stock
250JY0-022000-20002FIRST CYLINDER HEAD
Usually ships in 7-10 business days
260800-022300GASKET, EXHAUST PIPE
4 In-Stock
270180-022003-00002

(replaces part #
0180-022003-0010)

STUD
Usually ships in 7-10 business days
288010-020001NUT
10+ In-Stock
