2019 CFMOTO UFORCE 1000 Steering System(Eps) OEM Parts Diagram

Submodel CF1000UU UFORCE 1000 2019 Matte Titanium Grey

Shop Aftermarket Parts

TO VIEW CFMOTO OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING SYSTEM(EPS)

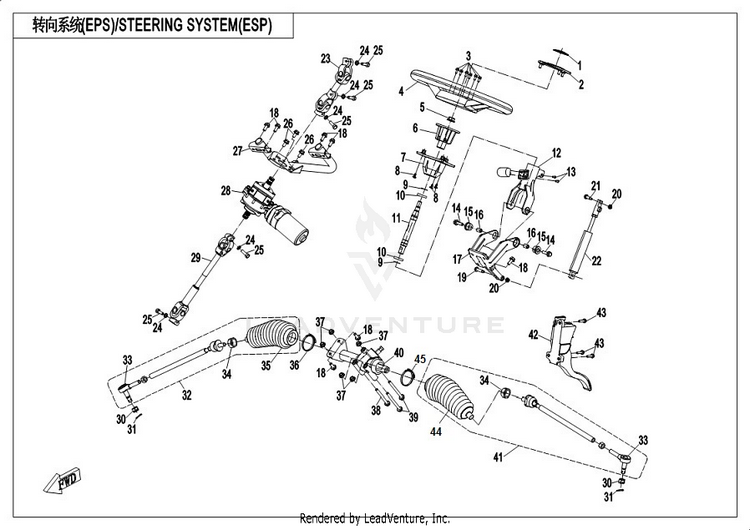

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
19060-190001CFMOTO LOGO 58×49
Usually ships in 7-10 business days
25ASV-102101-6000

(replaces part #
5HY0-102002)

SHROUD
Usually ships in 7-10 business days
330006-050012810BOLT
10+ In-Stock
45ASV-102110-6000

(replaces part #
5HY0-102100)

STEERING WHEEL
Usually ships in 7-10 business days
530204-122810NUT M12×1.25
10+ In-Stock
67030-100002FIXING SEAT,STEERING WHEEL
Usually ships in 7-10 business days
75HY0-102003LOWER DECO COVER, STEERING WHEEL
Usually ships in 7-10 business days
830110-421130010SELF TAPPING SCREW
10+ In-Stock
930801-02005RETAINER 20
Usually ships in 7-10 business days
1030400-02005BEARING,BALL
Usually ships in 7-10 business days
117000-100001COLUMN,STEERING
Usually ships in 7-10 business days
125HYV-101008-1H00

(replaces part #
9060-101008-00001)

STEERING WHEEL BRACKET
Usually ships in 7-10 business days
1330107-060012410SCREW M6X12
Usually ships in 7-10 business days
1430006-080028810BOLT M8x28
Usually ships in 7-10 business days
159060-100008-00001METAL BUSHING
Usually ships in 7-10 business days
169060-100009NYLON BUSHING
Usually ships in 7-10 business days
179060-101009-00001BRACKET, AIR SPRING
Usually ships in 7-10 business days
1830006-080020810BOLT M8×20
10+ In-Stock
199060-102003-00002

(replaces part #
9060-102003)

LOWER LOCK BOLT, GAS SPRING
Usually ships in 7-10 business days
2030204-060810NUT M6
10+ In-Stock
215HYV-103001-6000

(replaces part #
9060-102002-00001)

UPPER FIXED BOLT
10+ In-Stock
229060-102000-00001TILT STEERING GAS SHOCK
Usually ships in 7-10 business days
235HY0-103100UNIVERSAL SHAFT, STEERING
Usually ships in 7-10 business days
2430303-080112WASHER
5 In-Stock
259CR6-102003BOLT M8X35
Usually ships in 7-10 business days
2630006-080016810BOLT M8X16
10+ In-Stock
275HY0-103400EPS MOUNTING BRACKET
Usually ships in 7-10 business days
287030-106200-00001EPS DRIVER
Usually ships in 7-10 business days
295HY0-103200UNIVERSAL SHAFT, STEERING
Usually ships in 7-10 business days
309010-100002NUT M10×1.25
10+ In-Stock
3130903-0322210COTTER PIN
10+ In-Stock
325HY0-104200-10000STEERING TIE ROD, RH
Usually ships in 7-10 business days
339060-101170TIE ROD END
Usually ships in 7-10 business days
349060-101122CLAMP
Usually ships in 7-10 business days
359060-104001-10000JACKET OF JOINT-R
Usually ships in 7-10 business days
368010-150003TIE BAND
Usually ships in 7-10 business days
3730204-080810LOCK NUT
10+ In-Stock
3830006-080080840BOLT M8x80
Usually ships in 7-10 business days
3930019-080090810BOLT
Usually ships in 7-10 business days
405ASV-104060-6202

(replaces part #
5ASV-104060-6200)

STEERING MOTOR
Usually ships in 7-10 business days
415HY0-104100-10000STEERING TIE ROD, LH
Usually ships in 7-10 business days
425HY0-105000THROTTLE PEDAL, ELECTRIC
Usually ships in 7-10 business days
4330006-060030810BOLT M6×30
Usually ships in 7-10 business days
449060-104002-10000JACKET OF JOINT-L
Usually ships in 7-10 business days
459010-020007A-TYPE CLAMP 50-70
10+ In-Stock
